Description

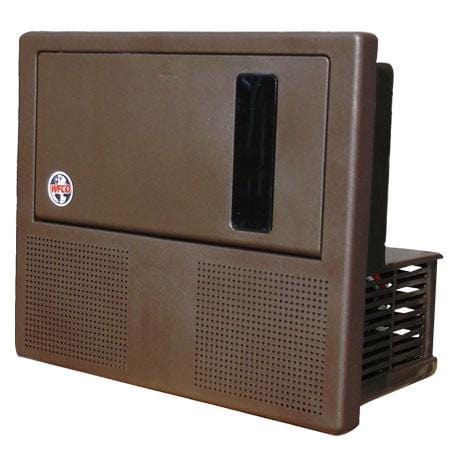

Experience reliable power management in your RV with the WFCO WF-8955E Power Center. This power center offers efficient distribution and conversion of electrical power, ensuring optimal performance for all your onboard appliances and systems. Trust WFCO for quality and reliability, making the WF-8955E Power Center an essential component for your RV's electrical system.
Specifications
| bulk charge voltage | 14.4V DC |
| converter type | Three-Stage Converter Charger |
| cooling system | Yes |
| Dimensions | Mounting cut-out: 12” wide, 11” high |
| float voltage | 13.2V DC |
| Input | 190-260 VAC, 50 Hz (950 Watt) |
| input voltage | 190-240 VAC, 50 Hz |
| nominal voltage | 13.6V DC (nominal voltage) |
| Output | Nominal 13.6 VDC (Includes charging and load); Boost 14.4 VDC; Sleep 13.2 VDC |
| output current | 55 A |
| output power | 950 W |
| over current | Yes |
| over temperature | Yes |
| over voltage | Yes |
| reverse polarity | Yes |
| short circuit | Yes |
| voltage output | 13.2 ΓÇô 14.4V DC Range |
| Warranty | 2 Year |
