Description

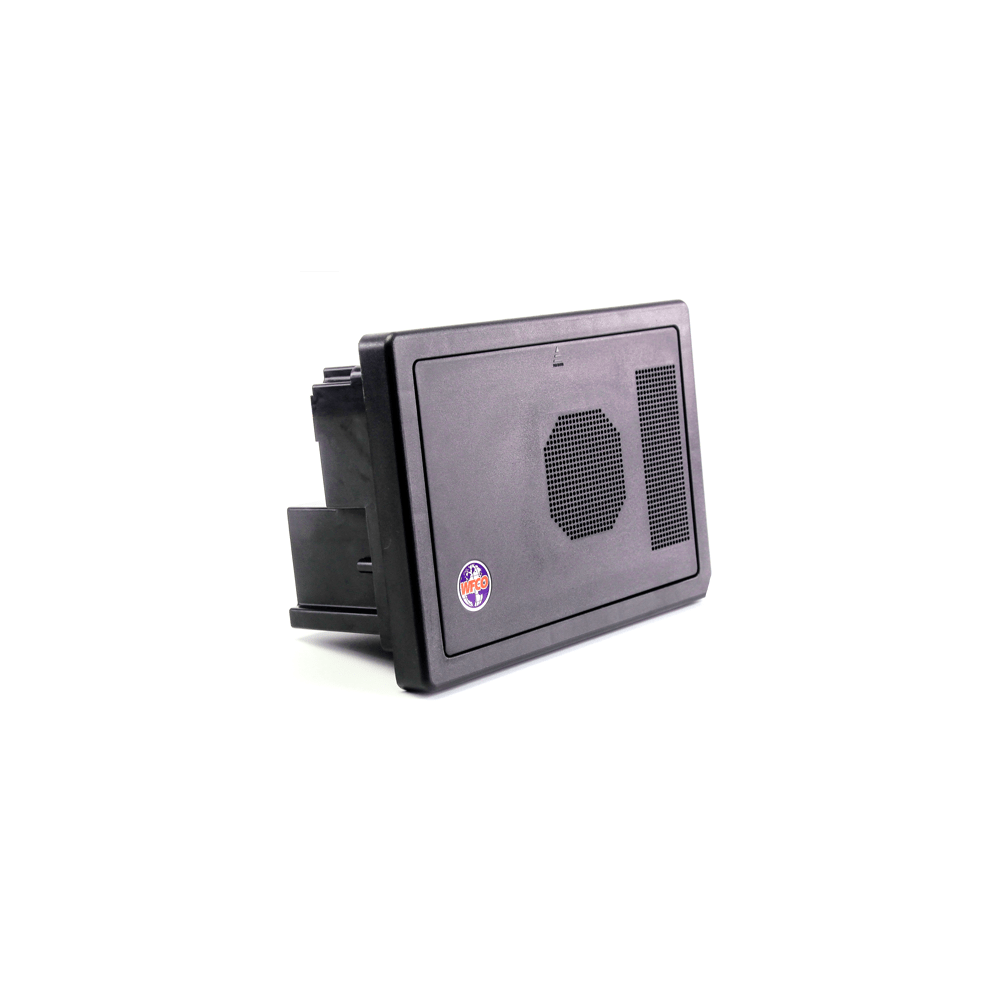

WFCO WF-8735E Power Center. See below for additional product information and specifications.
WF-8735 model converters provide 35 Amp DC output, and a highly reliable nominal 13.6 VDC with or without a battery. No extra filtering is required.
WFCO’s three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 VDC range “float” mode, 13.6 VDC range “absorption” charge mode, and a 14.4 VDC range “bulk” charge mode. Short-circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan for the WF-8735 operates only when needed and ensures quiet operation. Front-cooled fan installation does not create additional installation space requirements.
Every model is designed to comply FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. The 8735 model also brings you the convenience of built-in AC/DC distribution. 30 Amp main AC breaker and a total of up to five 20 Amp branch AC circuits can be installed. Six DC branch circuits include LED bulbs that illuminate to indicate open circuits.
Specifications
| absorption voltage | 13.6V DC (nominal voltage) |
| ac circuits (twin breakers) | 6 (Main and 5 branch circuits) |
| bulk charge voltage | 14.4V DC (quick charging voltage) |
| converter type | Three-Stage Converter Charger |
| dc circuits (quantity) | 6 (one battery circuit) |
| dimensions | 10 3/8″ x 6 7/8″ x 4 5/16″ |
| float voltage | 13.2V DC (trickle charge voltage) |
| input voltage/hertz | 105-130 VAC, 60 Hz |
| output current | 35 A |
| output power | 600 W |
| over current | Yes |
| over temperature | Yes |
| over voltage | Yes |
| reverse polarity | Yes |
| voltage output | 13.2 ΓÇô 14.4V DC Range |
| weight | 5.5 lbs. |
