Description

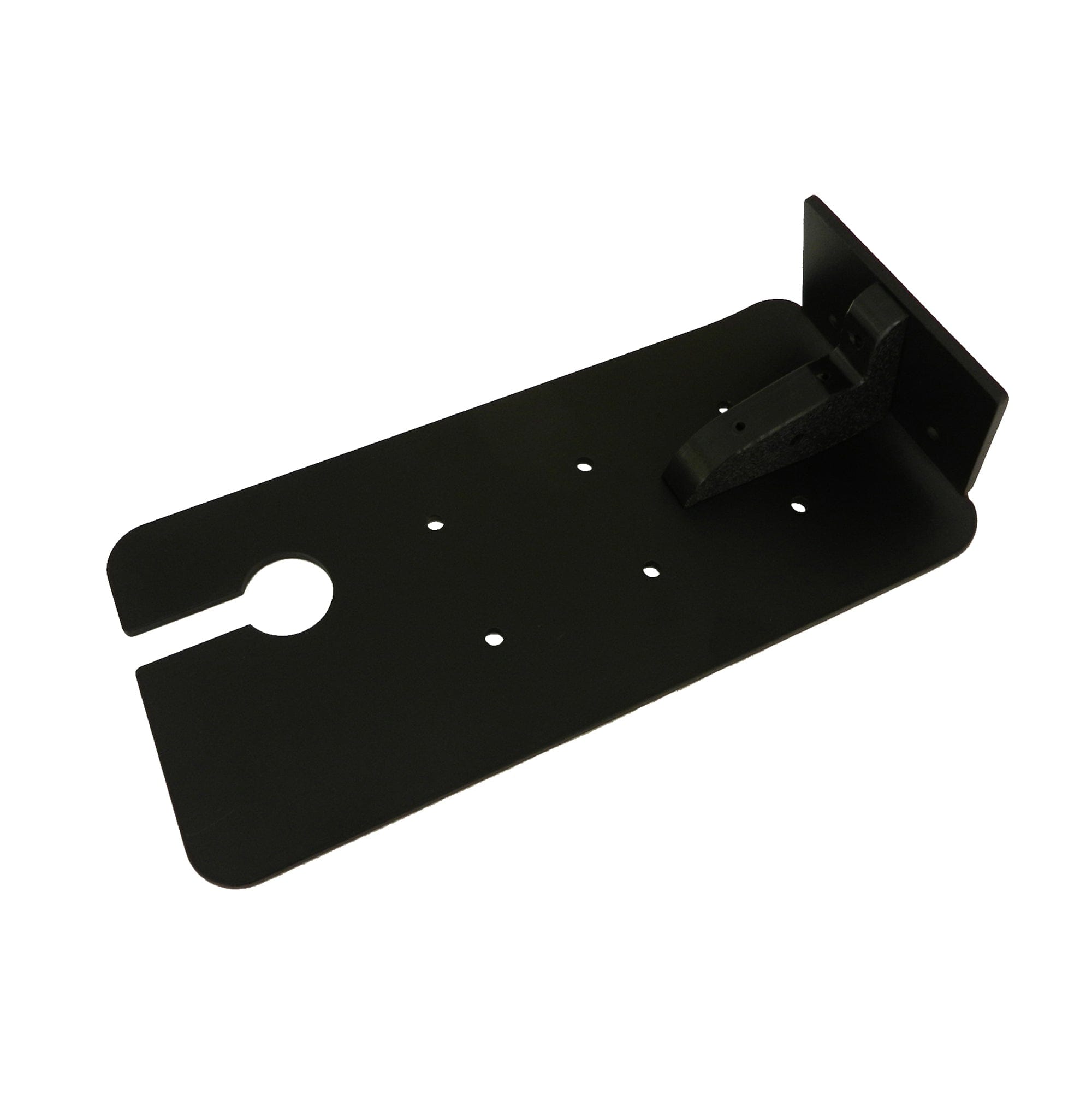

AP-HX-1-90 Degree is built in High Quality Aluminum Alloy and Black Powder Coated for installation on the boat transom. This product is designed to fit Humminbird® MEGA SI transducer # XM 9 20 MSI T or SOLIX SI transducer # XM 14 20 MSI T (transducer dimensions 7-1/4 L x 3” Wide). This item includes stainless steel hardware and easy Do-It Yourself instructions.
For transom installation to protect your transducer from side to side and front to back impact. Ideal for boats with flat transoms and for boats without a jack plate. Recommended as an added accessory to our SBB-5 Spring Back Bracket.
An Armor Plate is designed to protect the transducer from side to side as well as front and back impact. An Armor Plate takes the place of the factory transom mounting bracket. If the Armor Plate is installed anywhere other than on the transom, for example on the set back well, some shimming may be required if the angle needs to be adjusted.
An Armor Plate is also designed to attach to our Spring Back Bracket # SBB-5 for all around transducer protection. If an Armor Plate breaks, which has been attached to the boat without a Spring Back Bracket, it has no warranty whatsoever.
WARNING: We do not recommend the Spring Back Bracket and Armor Plate on the set back wall. It could reduce the flow of water to the engine.
Weight: 5 lbs
Dimensions: 10 × 4 × 4 in
