Description

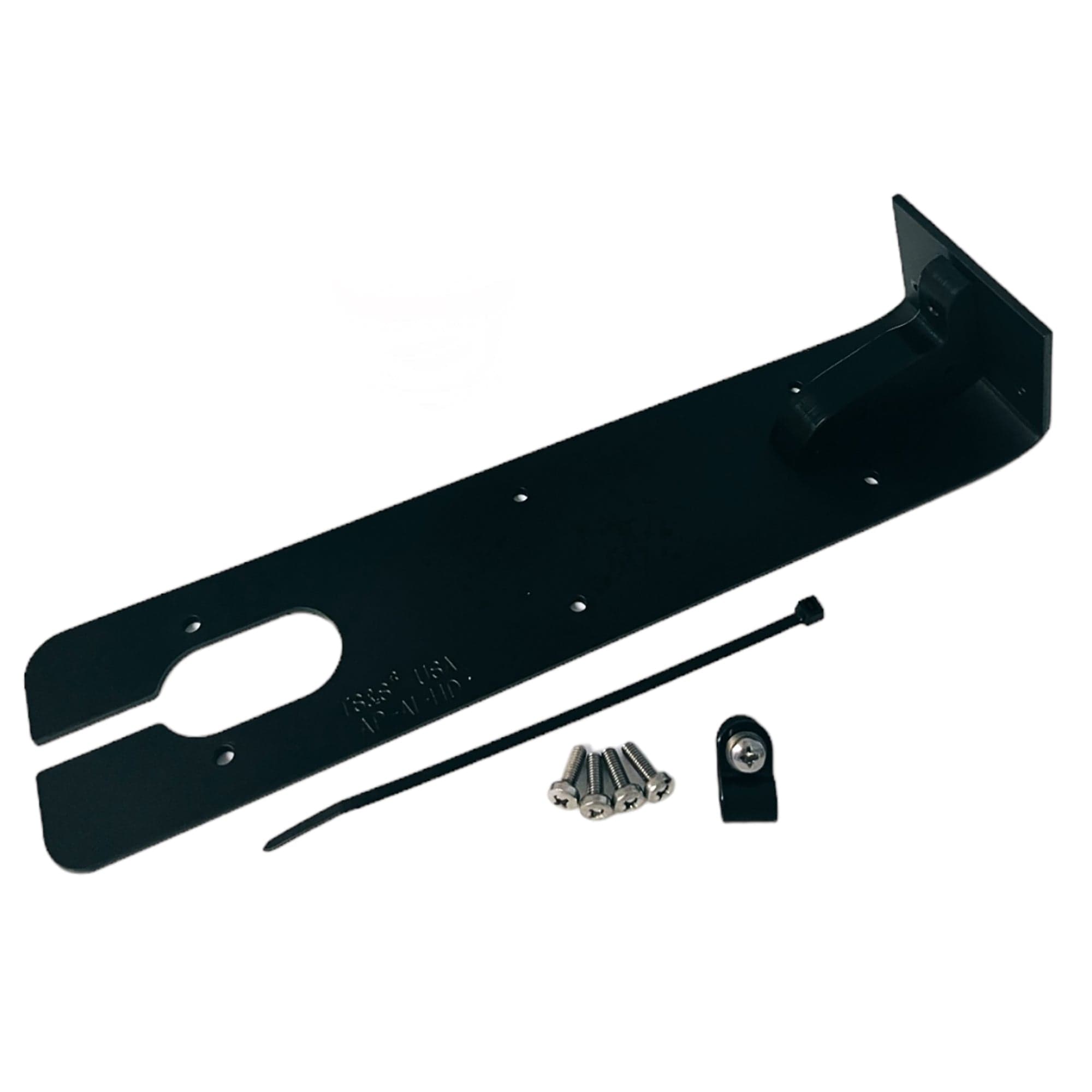

AP-AI-HD-90 Degree to fit Lowrance ActiveImaging HD 3-in-1 transducer # 000-16062-001
AP-AI-HD-90 Degree is built in 6061High Quality Aluminum Alloy and Black Powder Coated. It is designed for installation on the boat transom. (90 Degree)
This Armor Plate is designed to fit Lowrance® Active Imaging HD 3-in-1 transducer # 000-16062-001 (approximately 10-1/4″ long x 2” wide x 1-1/4” wide). This item includes stainless steel hardware and easy Do-It Yourself instructions. To ensure that you are ordering the correct Armor Plate, please enlarge the images for transducer recognition.
An Armor Plate is designed to protect the transducer from side to side as well as front and back impact. An Armor Plate takes the place of the factory transom mounting bracket. It is also designed to attach to our Spring Back Bracket # SBB-5 for all around transducer protection.
If the Armor Plate is installed anywhere other than on the transom, for example on the set back wall, some shimming may be required if the transducer angle needs to be adjusted.
A Spring Back Bracket # SBB-5 is recommended when ordering an Armor Plate for all around transducer protection. If an Armor Plate breaks, which has been attached to the boat without a Spring Back Bracket, it has no warranty.
Weight: 5 lbs
Dimensions: 10 × 4 × 5 in
