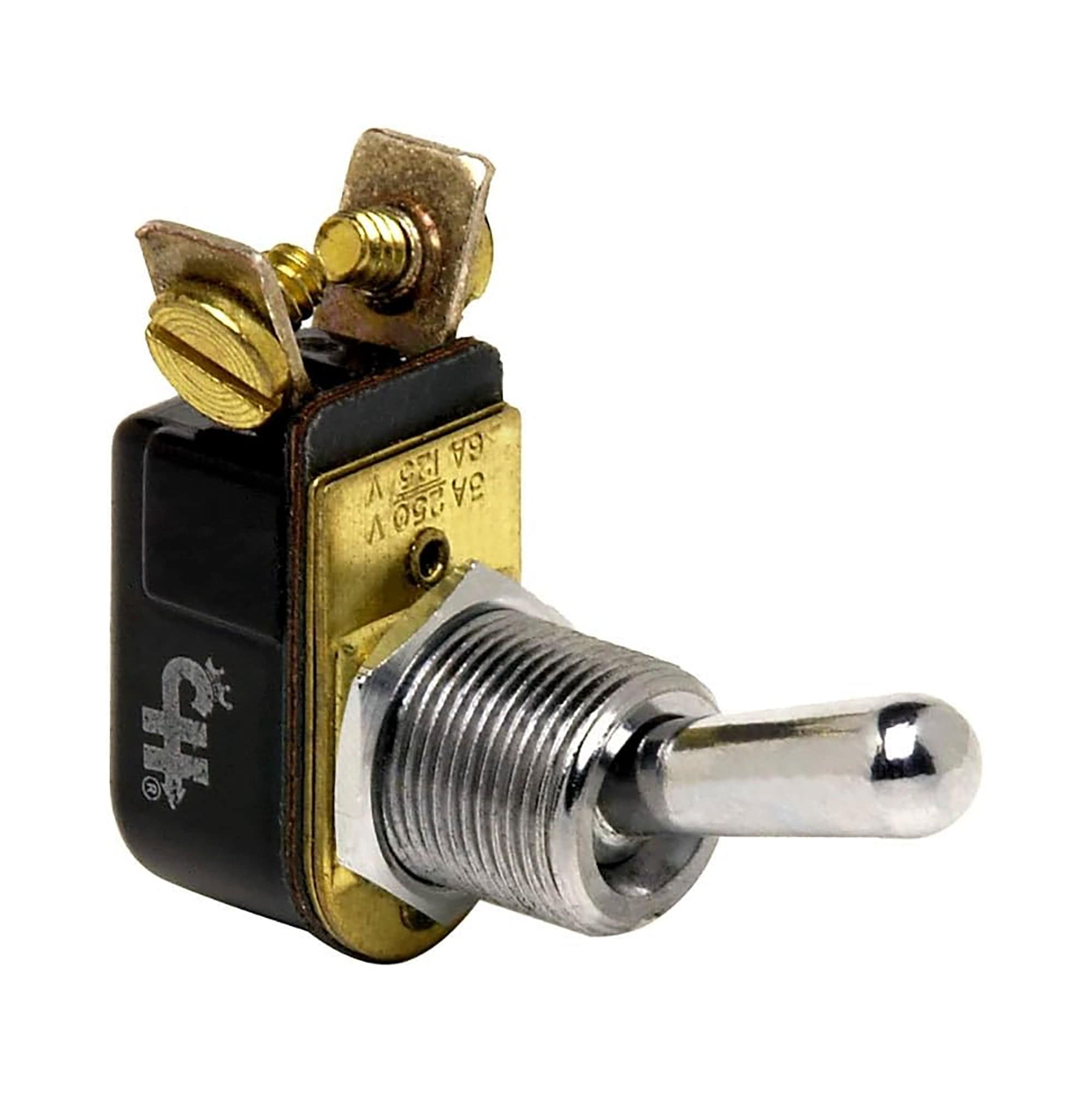

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting. body. and actuator features are designed for ease-of-use and extended product lifecycle. The Light Duty series is meant to be mounted in virtually any environment and for any application.
Silver contacts for corrosion resistance.
Applications:
Construction Equipment
Agricultural Equipment
Material Handling Equipment
Commercial Vehicles
Specifications Overview
Current Rating (Continuous) in Amps: 10
Voltage Rating (Max): 12
Circuitry: SPST
Positions: On - None - Off
Input Terminals: 2 Screw
Housing: Black Plastic with Plated Steel Cap
Actuator: Standard Toggle
Actuator Details: Nickel-Plated Brass - 17.4625
Mounting Method: Nickel Plated Brass Face Nut
Panel Thickness: Up to 1/4 (6.35mm) thick
Contact Material: Silver
