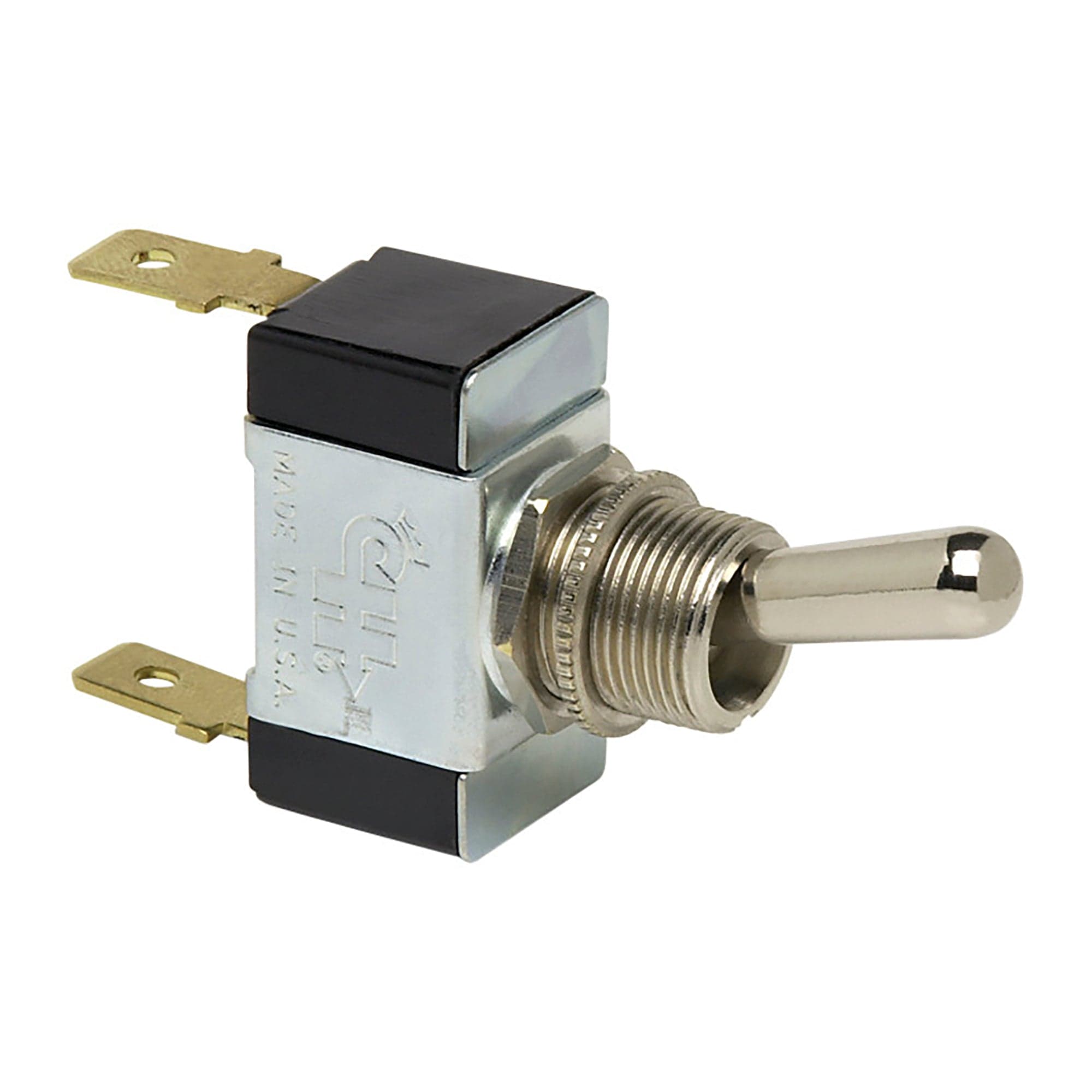

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.
Mounting: Nickel Plated Brass Face Nut through 15/32 (11.90mm) Panel Hole
Voltage Ratings: 10A at 36V DC
15A at 24V DC
25A at 12V DC
Current Rating (Continuous) in Amps: 10
Voltage Rating (Max): 36
Circuitry: DPDT
Positions: On - Off - On
Input Terminals: 6 Screw
Housing: Plastic with Plated Steel Cap
Actuator: Standard Toggle
Actuator Details: Nickel-Plated Brass - 17.4625
Panel Thickness: Up to 1/4 (6.35mm) thick
Contact Material: Silver
