Description

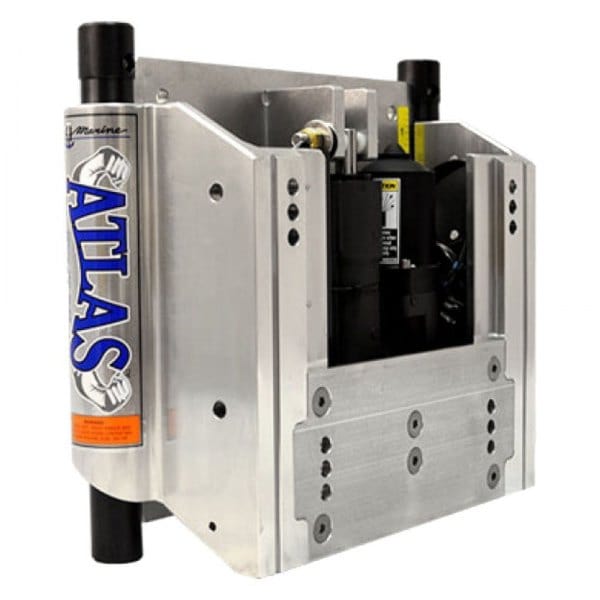

This is the Atlas 6-inch setback standard Polished hydraulic jack plate from TH Marine.
- Bottom to Top in Less than 8 Seconds Rod and Slot Lifting Design
- Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods
- 6 Times More Abrasion Resistant than Steel Rods Made from Self Lubricating Material, no grease required
- Easy Two-Pin Pump Removal
- Quick Maintenance Installs in Half the Time of Comparable Jack Plates Available in 4, 6, 8, 10, 12 and 14 inch Setback Models Standard versions can be used for most outboards
- 300hp Max "HD" - HEAVY DUTY version is rated for engines up to 400hp
- All ATLAS™ plates are predrilled for Power-Pole® and Minn-Kota Talon® bracket mounting Stroke Length
- 5 Inches Height Adjustment Up to 7 Inches
- Comes with relay harness and rocker switch
- Contact your boat manufacturer or local dealer for setback recommendation for your particular boat and also the affects adding a jack plate can have on your boat
- Mounting bolts are not included
- Rated for engines up to 300hp or up to 625 pounds dry weight
- Transom side of the atlas is 16 3/8" wide x 12 1/2" tall
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Height | 12 1/2 in. |
| Max Horsepower | 300 hp |
| Max Weight | 625 lbs |
| Width | 16 3/8 in. |
