Description

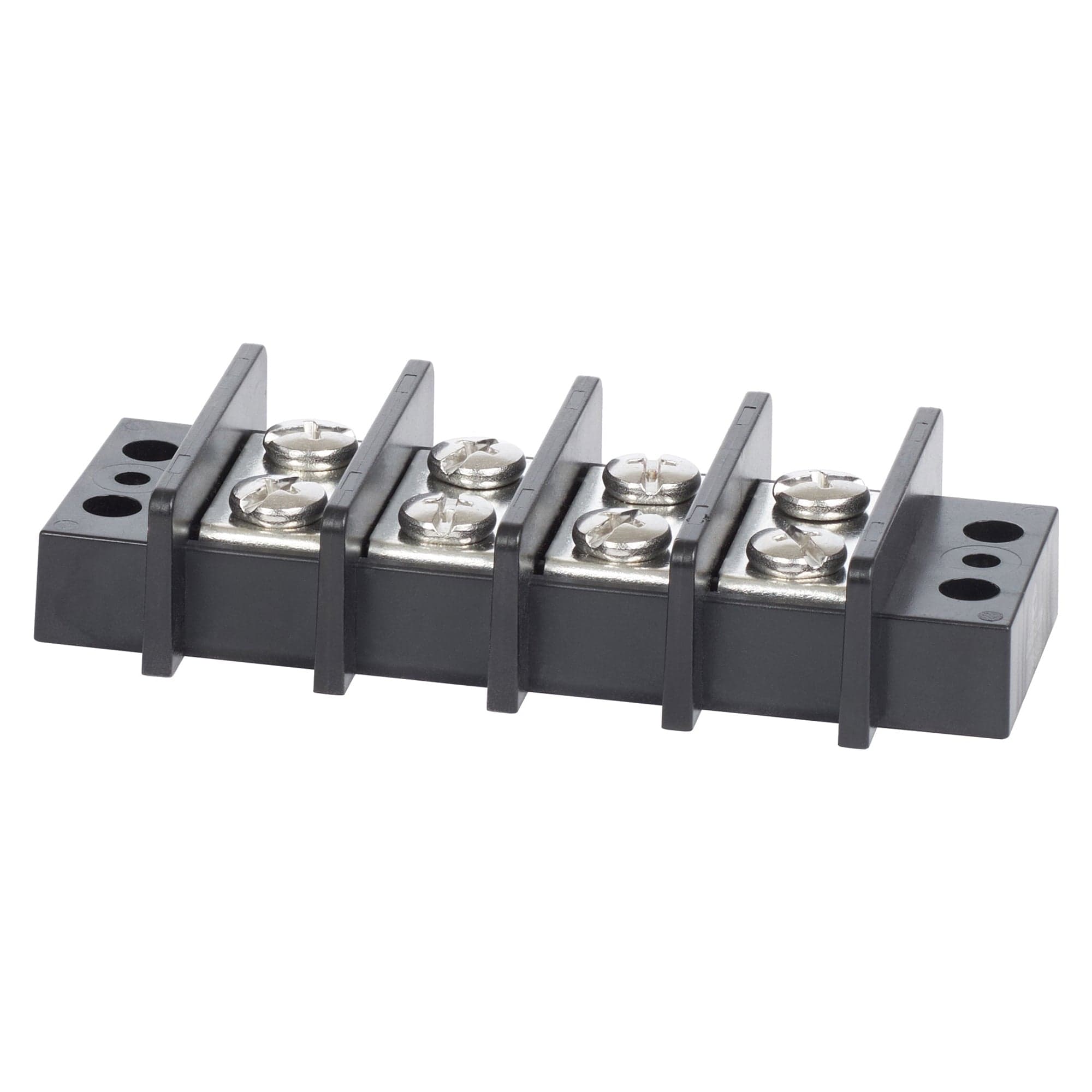

Terminal Block 65A - 4 Circuit - Blue Sea Systems 2604
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
Circuits: 4
Max Voltage: 600V AC/DC
Continuous Rating: 65A
Base Material: Nickel-Plated Brass
Mounting Screw: #10 [M5]
Screw Material: Stainless Steel
Screw Size: #10-32
Screw Terminal Torque: 17.5 in-lb (1.98 Nm)
Terminal Screws: M5
