Description

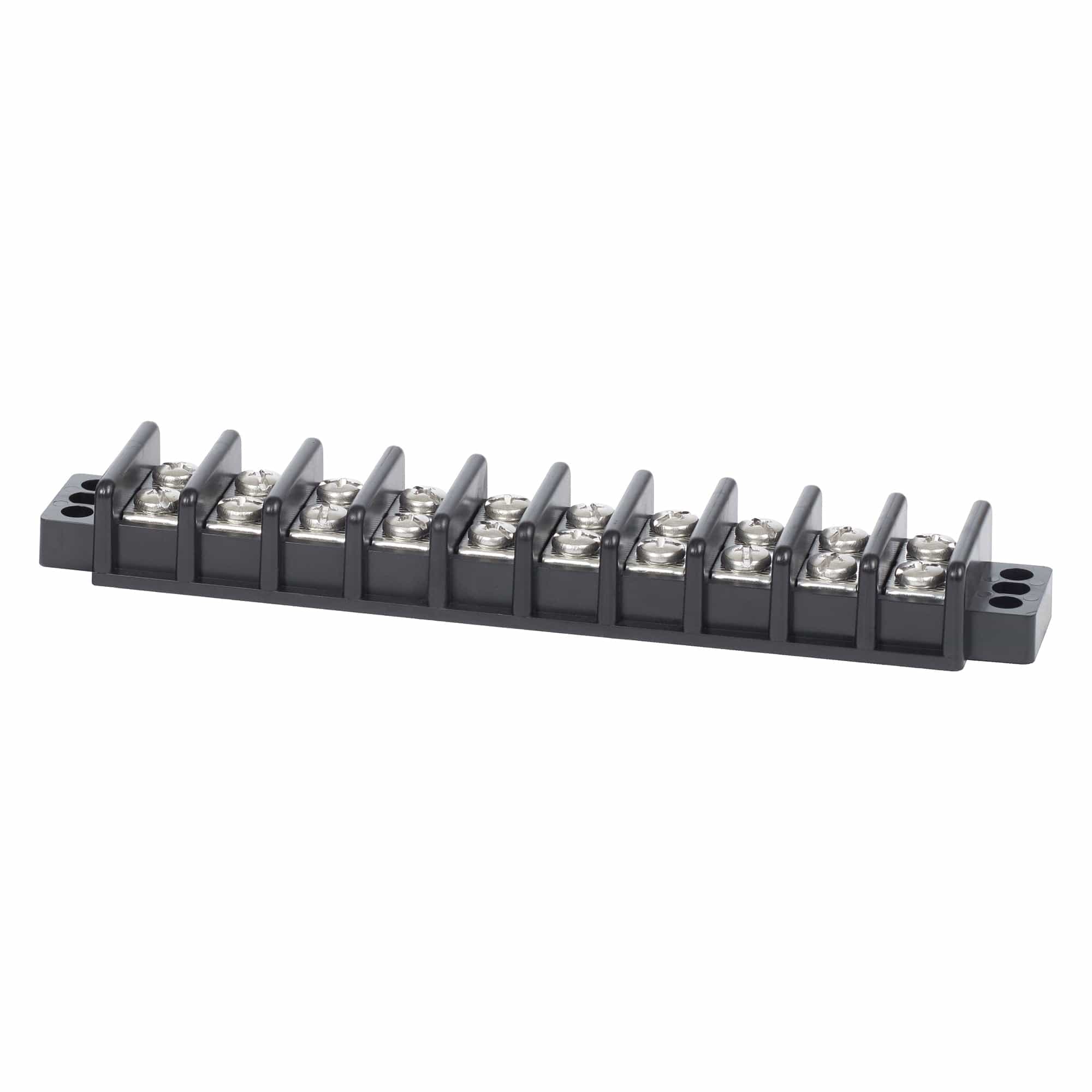

he Blue Sea Systems 2510 Terminal Block is designed for reliable and organized electrical connections, supporting up to 30 amps across 10 circuits. Ideal for a variety of applications, this terminal block simplifies wiring and ensures a secure connection in both marine and industrial settings.
- 30A Capacity: Supports up to 30 amps per circuit, providing dependable power distribution.
- 10 Circuit Design: Offers 10 connection points for organized wiring in complex installations.
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Specifications
Circuits: 10
Maximum Voltage: 600V AC/DC
Continuous Rating: 30A
Base Material: UL 94 V0, PC
Bus Material: Nickel-Plated Brass
Mounting Screw: #10 [M5]
Screw Material: Stainless Steel
Screw Terminal Torque: 10 in-lb (1.13 Nm)
Terminal Screws: M4
Wire Terminal Size: #8 [M4]
California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
