Description

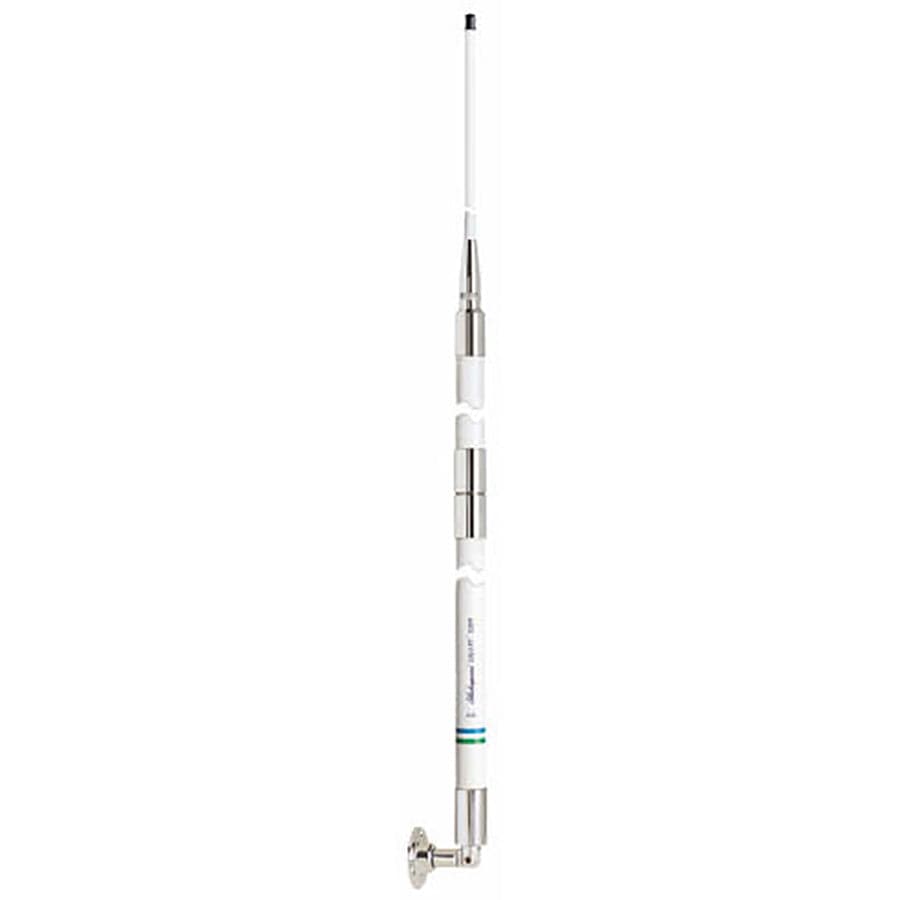

This is a two-piece 23', 9dB Galaxy VHF Marine Band Antenna with 20' RG-8X Cable
- Brass and copper elements
- Stainless steel ferrules, standard 1in-14 thread mounting ferrule
- Includes 20 feet of RG-8/X low-loss cable plus a PL-259 connector
- Suggested mount: Shakespeare Style 409-R (sold separately) or 410-R Mounting Kit (pictured mount sold separately)
- 2 Sections: Base 172", Tip 105"
- Twin to: Shakespeare Style 5310-R
- Suggested mount(s): 409-R 410-R
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Antenna Gain | 9dB |
| Band | VHF Marine Band |
| Bandwidth | 5 MHz within 2.0:1 VSWR |
| Best Use | Long Range VHF |
| Coax Supplied | 20 ft of RG-8/X |
| Color/finish | Galaxy White |
| Connector Supplied | PL-259, not attached |
| DC Ground | No DC Ground - The antenna will read open on continuity test. |
| Elements | Brass & Copper |
| Ferrule | Stainless steel |
| Gain | 9 Decibels |
| Impedance | 50 Ohms |
| Length | 23' (two sections- base 172", tip 105") |
| Material | Fiberglass |
| Max. Input Power | 150 watts |
| Polarity | Vertical |
| SWR | nominally 1.5:1 at 156.8 MHz |
| Warranty Details | Five Years |
