Description

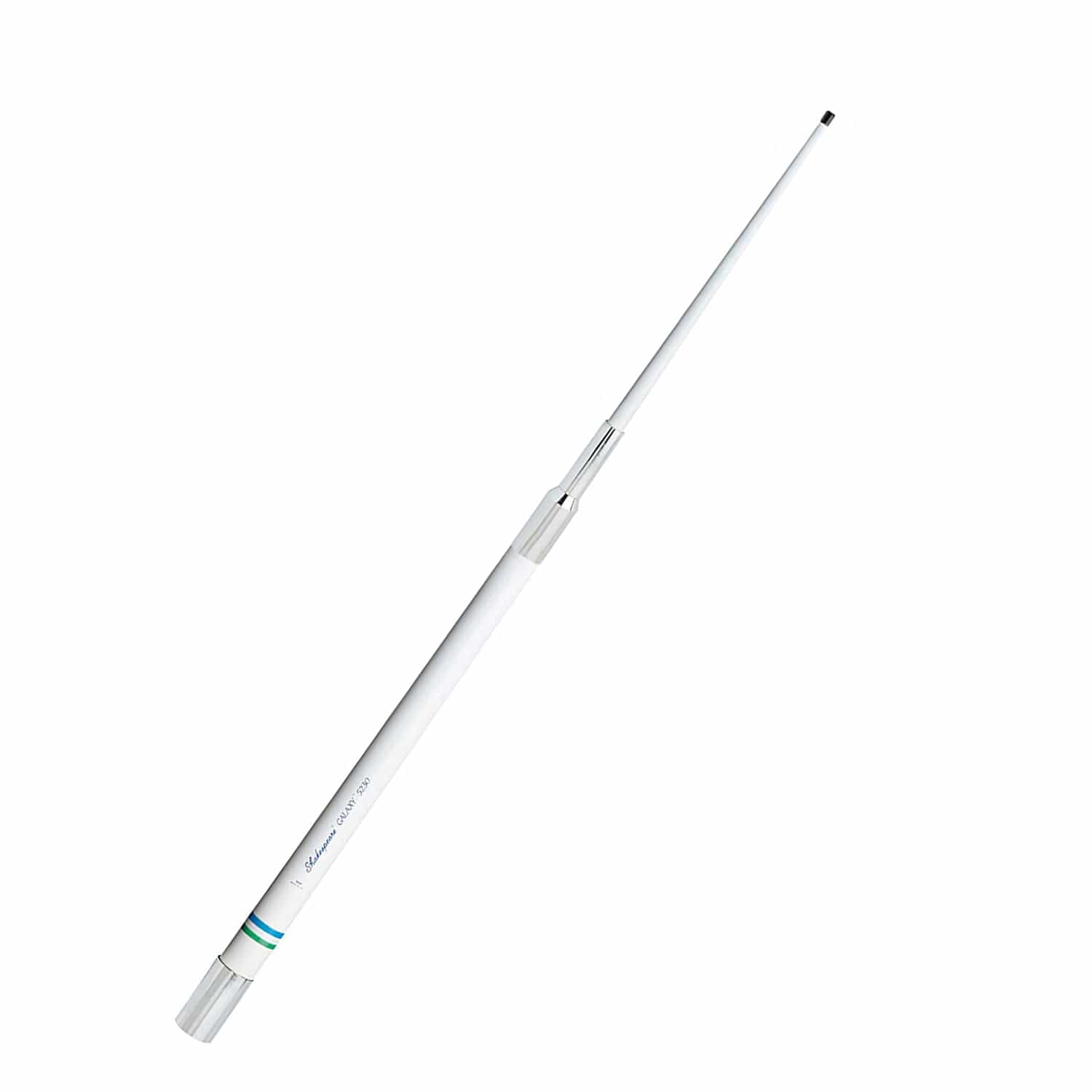

The ultra-performer, Shakespeare’s Galaxy Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
Features:
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1-inch-14 thread
- Includes 20ft RG-8/X cable and a PL-259 connector
- 2 Sections: Base 94in, Tip 74in
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
antenna gain | 8dB |
band | VHF Marine Band |
bandwidth | 3 MHz within 2.0:1 VSWR |
coax supplied | 20 ft of RG-8/X |
color/finish | Galaxy White |
connector supplied | PL-259, not installed |
ferrule | Stainless Steel |
impedance | 50 Ohms |
maximum input power | 200 watts |
polarity | Vertical |
SWR | nominally 1.5:1 at 156.8 MHz |
warranty | 5 year Shakespeare Limited Warranty |
