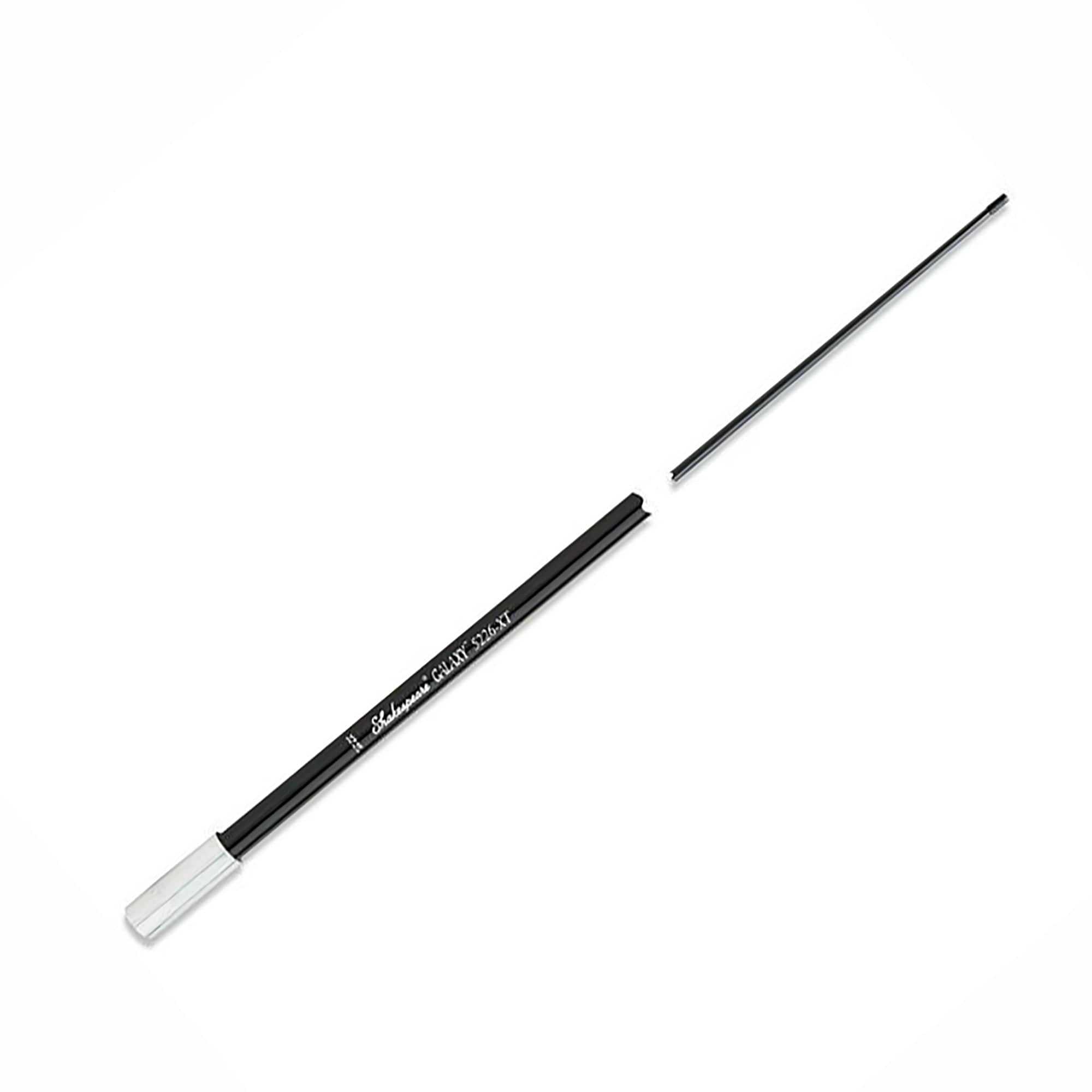

Shakespeare 5226-XT 8' 6dB Galaxy VHF Marine Band Antenna, Black

Save $281.50
ShakespeareSKU: 5226-XT

Price:
Sale price$157.32 Regular price$438.82
Stock:
In stock (15 units)
Free Shipping* (Some exclusions apply)

Description

This is an 8-foot VHF marine band antenna made of heavy-duty materials to be the ultimate antenna for range and durability. The ideal applications are T-tops, hard-tops and other positions where it is the least resistance to high winds and high speeds.

Collinear-Phased 5/8-Wave Elements



  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1″-14 thread
  • 20ft RG-8/X low-loss cable plus a PL-259 connector
  • One section
  • Best applications include T-tops and hard tops, etc.



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Antenna Gain 6dB
Band VHF Marine Band
Bandwidth 3 MHz within 2.0:1 VSWR
Coax Supplied 20 ft of RG-8/X
Color/finish Galaxy Black
Connector Supplied PL-259, not installed
DC Ground No DC Ground – The antenna will read open on continuity test
Ferrule Stainless steel
Impedance 50 Ohms
Max. Input Power 100 watts
Polarity Vertical
SWR nominally 1.5:1 at 156.8 MHz
Warranty 5 years from manufacturer
