Description

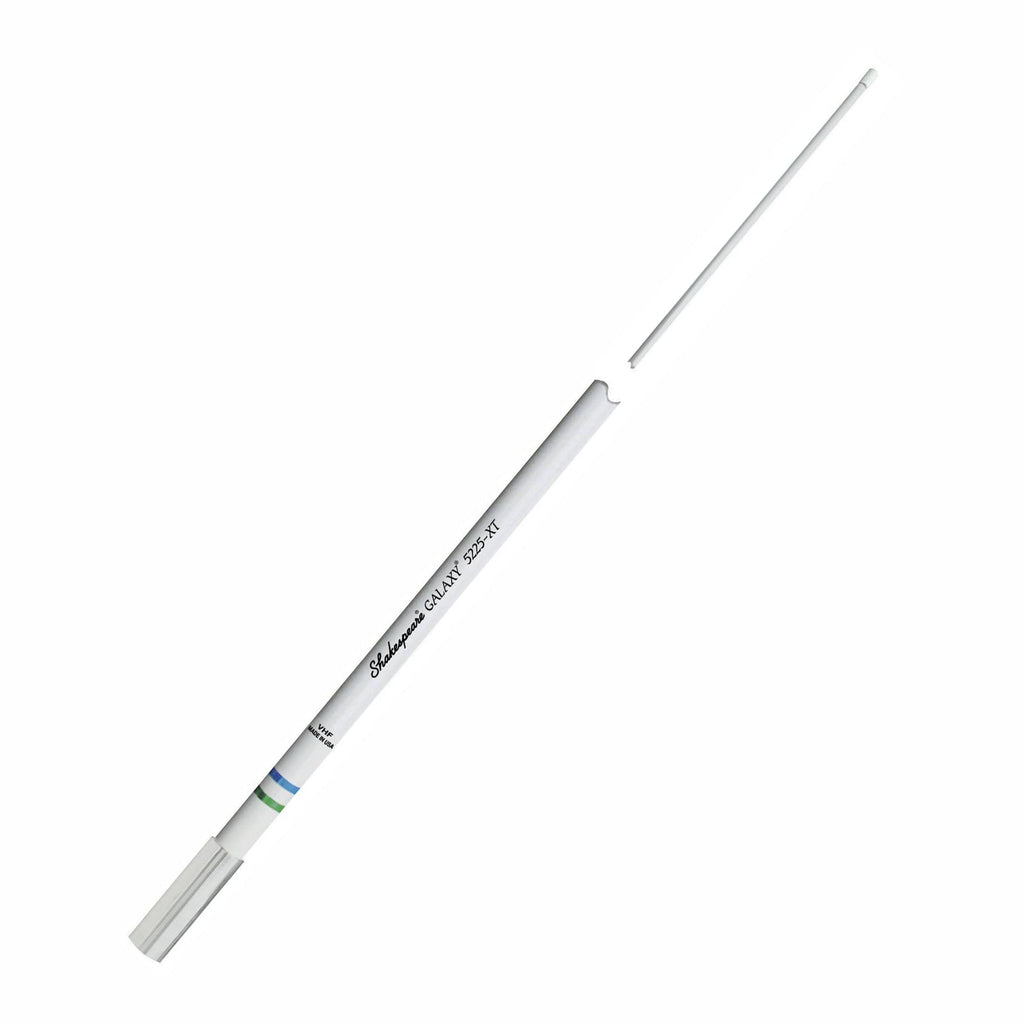

This is a VHF antenna which maximizes range and quality with a great look. The 5225-XT is Shakespeare’s Galaxy Style 5225 in a stronger, stiffer radome. Best applications are hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

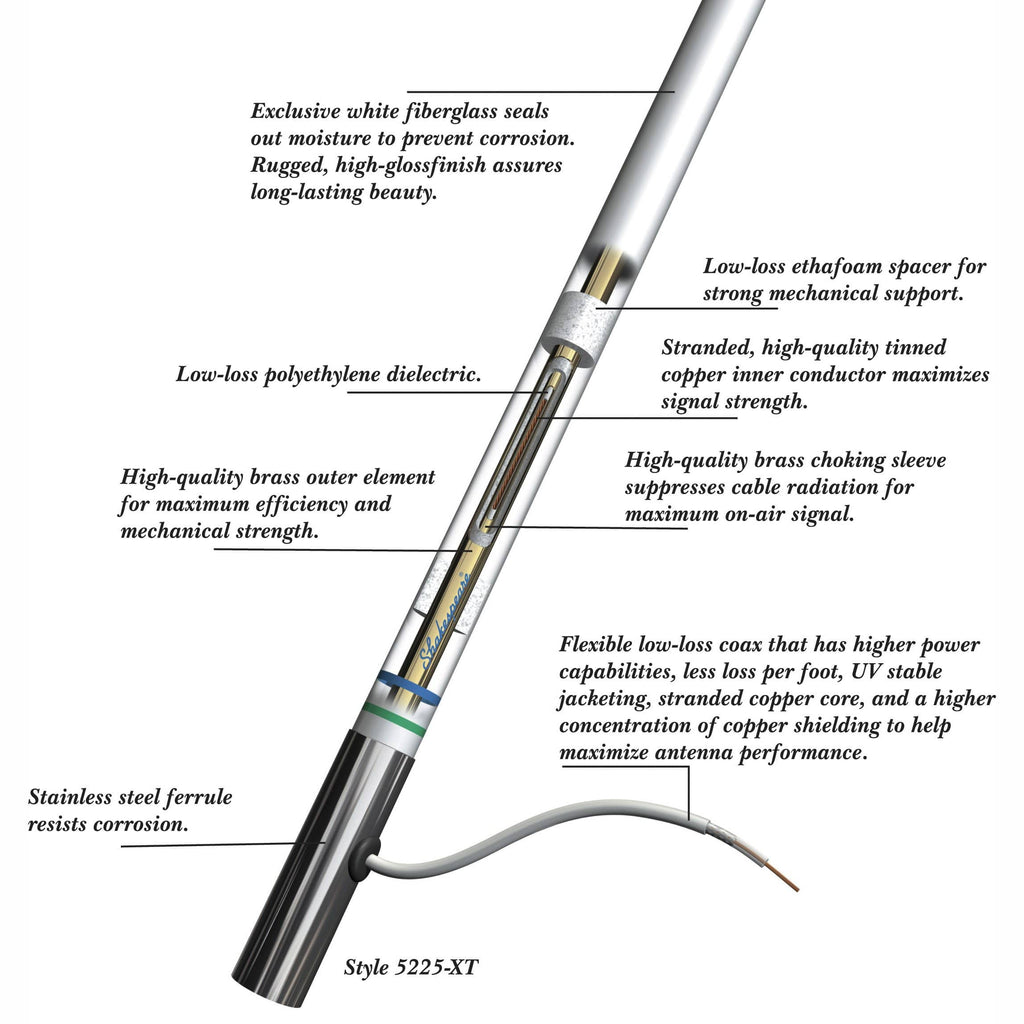

- Collinear-phased 5/8-wave elements
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1″-14 thread
- 20ft RG-8/X low-loss cable plus a PL-259 connector
- Suggested mount: Shakespeare Style 4187 or 5187 (each sold separately)
- One section
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Band | VHF Marine Band |
Bandwidth | 3 MHz Within 2.01:1 VSWR |
Coax Supplied | 20 Ft. of RG-8/X |
Color/Finish | Galaxy White |
Connector Supplied | PL-259. Not Installed |
DC Ground | DC Grounded - The antenna will read shorted on continuity test |
Ferrule | Stainless-Steel |
Gain | 6dB |
Impedance | 50 Ohms |
Max. Input Power | 100 Watts |
Polarity | Vertical |
SWR | Nominally 1.5:1 @ 156.8 MHz |
Warranty | 5 Years from manufacturer |
