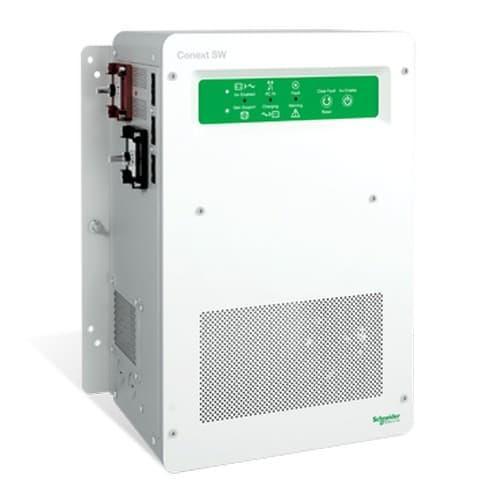

Schneider Electric RNW865404821 Conext SW 4048 4000W Inverter/Charger 120/240V

Schneider ElectricSKU: RNW865404821

Price:
Sale price$1,593.44 Regular price$1,650.99 Save $57.55
Stock:
10 In stock

Description

The Conext SW 120/240V hybrid inverter is perfect for off-grid, backup power, and self-consumption applications for homes and small businesses, it’s a pure sine wave, hybrid inverter system with switchable 50/60 Hz frequencies, providing power for every need. SW features 120/240 VAC output, and capable of producing 120/240 VAC output from a 120 VAC input, without the need for an external transformer. For expanded off-grid capacity, the SW is integrated with fuel-based generators as required to support loads larger than the generator’s output. It’s also self-consumption ready, able to prioritize solar consumption over the grid while maintaining zero grid export. SW hybrid inverter works with the grid to avoid peak utility charges and support the grid when utility supply is limited.

Higher return on investment

  • Cost effective
  • Excellent load start capabilities with high 30-minute and 5-second surge power
  • Harness the continuously declining production cost of solar power

Designed for reliability

  • Robust design through rigorous reliability testing (HALT)

Flexible

  • Available in 24VDC and 48VDC models. All models support both 50Hz and 60Hz output
  • Supports AC coupled and DC coupled off-grid and grid-tie architectures
  • Intelligent functionality enables self-consumption with solar prioritization, peak shaving and, assisting small generators with heavy loads

Easy to service

  • Monitor, troubleshoot or upgrade firmware using Insight Energy Management
  • Global support and training

Easy to install

  • Configures quickly into compact wall mounted system
  • Companion breaker panels integrate inverter with battery bank and solar charge controllers
  • Mounting bracket design makes hanging inverter on the wall easy



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

AC Connections Single / Split phase
AC Input Power Factor > 0.98
Altitude (Operating) 2000 m (6562 ft)
Ambient Temperature (Storage) -40°C to 85°C (-40°F to 185°F)
Battery Types FLA, Gel, AGM, Custom
Charge Control 2 or 3 stage
Charge Temperature (Compensation) Yes - BTS included
Dead Battery Charge Yes
EMC FCC Part 15 Class B
Humidity Operation / Storage < 95% RH, non-condensing
Idle Consumption (Search Mode) <11 W
Ingress Protection Rating Indoor only, IP20
Input AC Voltage 120 / 240 Vac split phase
Input AC Voltage Range (Line to Neutral) 95 - 135 Vac single phase 170 - 270 Vac
Input Current 12 A
Input DC Voltage Range 40 - 68 Vdc
Monitoring (System Network & Remote) Available
Nominal Output Voltage 48 Vdc
Operating Temperature (Optimal) -20°C to 60°C (-4°F to 140°F)
Optimal Efficiency 94%
Output Current 45 A
Output Frequency 50 / 60 Hz selectable
Output Power (Continuous) at 25°C 3800 W
Output Power (30 min) at 25°C 4400 W
Output Power (5 sec) at 25°C 7000 W
Output Voltage 120 / 240 Vac
Output Voltage Range 24 - 64 Vdc
Output Wave Form True sine wave
Part Number 865-4048-21
Peak Current 41 A
Product Dimensions (H x W x D) 41.8 x 34.1 x 19.7 cm (16.5 x 13.4 x 7.6 in)
Product Weight 28.1 kg (62.0 lb)
Safety c(CSA) us mark CSA C22.2, No. 107.1-01 UL1741 Ed.2
Tare Loss 27 W
Transfer Relay Rating 30 A
Transfer Time (AC to inverter and inverter to AC) <1 cycle (16.7ms)

Compatible Products

Power Distribution Panels Universal DC distribution panel (865-1016), AC distribution panel (120/240 V) (865-1017)
MPPT Charge Controllers MPPT 100 600 (865-1034), MPPT 80 600 (865-1032), MPPT 60 150 (865-1030-1)
Monitoring InsightHome (865-0330), InsightFacility (865-0335), Insight

Accessories

System Control Panel (865-1050-01), Automatic Generator Start (865-1060-01), Battery Monitor (865-1080-01), Configuration Tool (865-1155-01)
