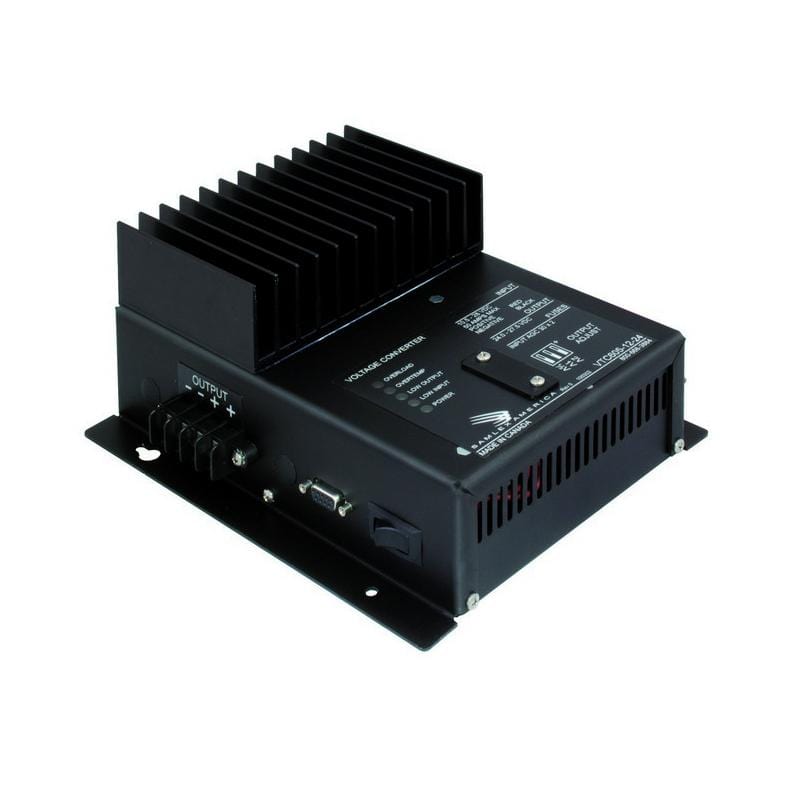

Samlex VTC605-12-24 Converter

          Be the first to write a review

Would you like to calculate shipping for this item?

The Samlex VTC605-12-24 Step Up non isolated, 45 amp, switching DC-DC converter. See the details tab for more information.

  • Shock and vibration tolerance
  • Mount in almost any location
  • Compact and light weight
  • Reverse polarity protection
  • Current limiting circuit
  • Over voltage crowbar circuit
  • Non-isolated for negative ground system
  • Ultra quiet low EMI operation
  • Rugged marine grade aluminum case
  • Input Fuse: 30 x 2A AGC
  • Current* : 45A, * The actual output current capability depends upon the input/output voltage ratio. The actual output current capability depends upon the input/output voltage ratio. To obtain the actual output current capability at any given input voltage, use the following formula: Output Amps = Input Volts/Output Volts x 45. For example, at 10.5 VDC in and 13.6 VDC out, the output current = 10.5/13.6 x 45 = 34.7 Amps.
  • Current limit: 50 Amps in
  • Isolation input - output: Common negative
  • Isolation case to input or output: > 500 VDC
  • Noise on Input: < 50 mV
  • Output ripple & noise: < 50 mV
  • Low input voltage alarm: 10.5 VDC
  • Low output voltage alarm: Programmed output voltage minus 2.5 VDC
  • Output crowbar: programmed output volts x 1.2
  • transient response: < 1V for 50% surge
  • Regulation (Line and load): < +/- 0.5%
  • Duty cycle (Continuous): 100% for 24 hrs per day
  • Operating temperature Range: -25 degrees C to 40 degrees C / -13 degrees F to 104 degrees F, de-rate linearly 2.5% per 0 degrees C from 40 degrees C / 32 degrees F from 104 degrees F
  • Connections: Four contact output terminals
  • Material: Marine grade aluminium
  • Finish: Black anodize / power epoxy coat
  • Fastenings: All 18-8 stainless steel
  • Dimensions: mm (L x w x H) 231 x 198 x 108
  • Dimensions: inches (L x w x H) 9.1 x 7.8 x 4.3
  • Weight: KG/LB 2.7 / 6.0
  • 3 year warranty
  • Input voltage range : 10.5 - 28 VDC
  • Input Current : (Maximum): 50A
  • Output : (Nominal): 24V
  • Output Voltage : (DC): Input - 1V or 24.0 to 27.5 - whichever is greater
  • Humidity : (Non-condensing): Maximum 95%
  • Efficiency : > 90% @ maximum output
  • Output Voltage : 12/24 Volts
  • Amps : 45 Amp
