Description

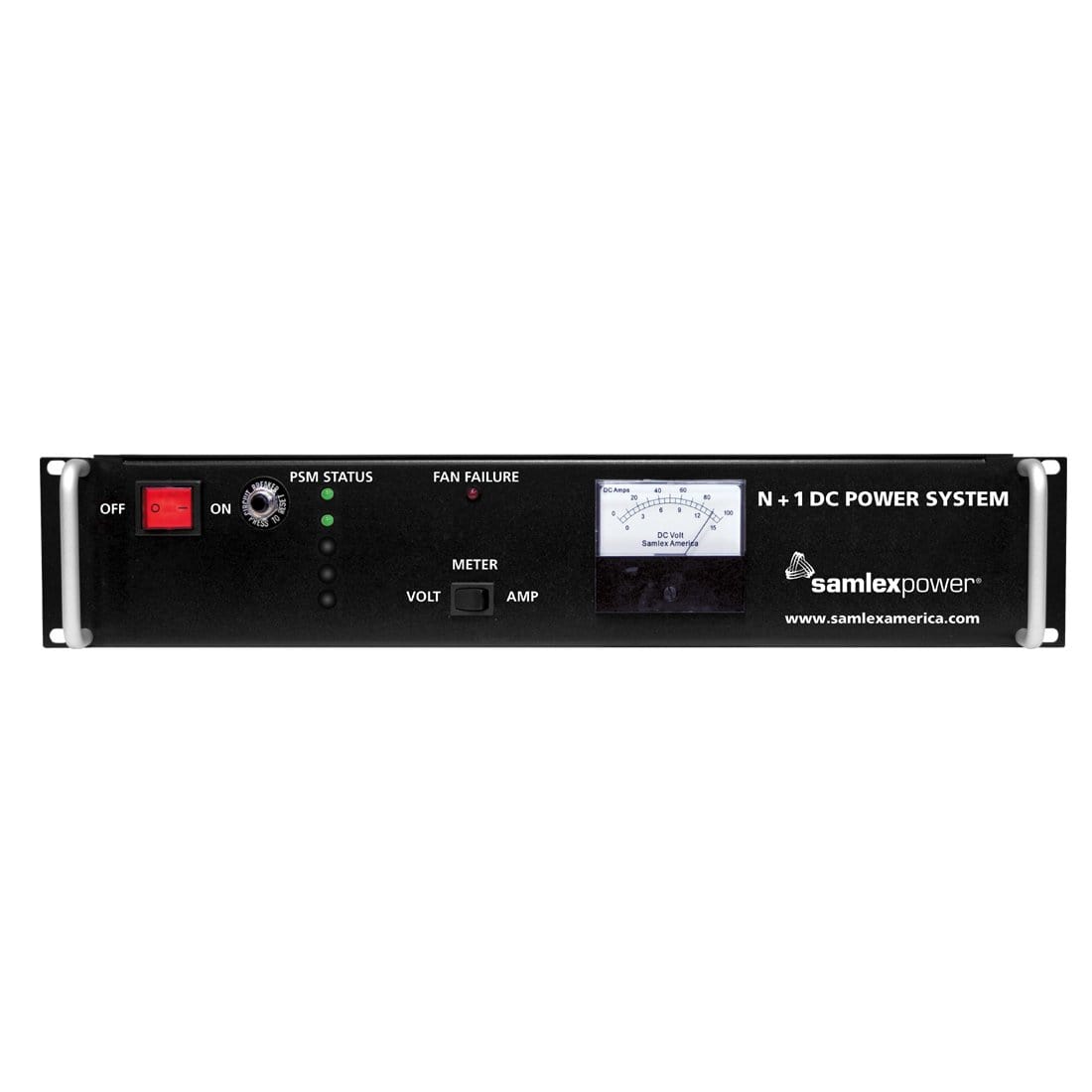

The Samlex SEC-80BRM is an ac-dc power converter that provides a highly regulated dc output voltage of 13.8 volts at 80 amps of continuous power and comes mounted on a 19" 2u size rack plate.
Specifications
| amps | 80 Amps |
| brand | Samlex |
| circuit breaker | 125 /250 v, 25a |
| continuous current output | 80 a |
| dimensions | 19"L x 15.9"W x 3.6"H |
| full load output voltage | 13.45 vdc |
| fuse | 250 v, 4a |
| input current | 16 a |
| input voltage range | 105 to 125 vac, 50 / 60 hz |
| nominal output voltage | 13.8 vdc |
| no load output voltage | 14 vdc |
| output current limit | 96 a |
| output noise | 0.8 v |
| output ripple | 150mv |
| regulation | 0.01 |
| surge output current | 92 a |
| weight | 23.5 lbs |
