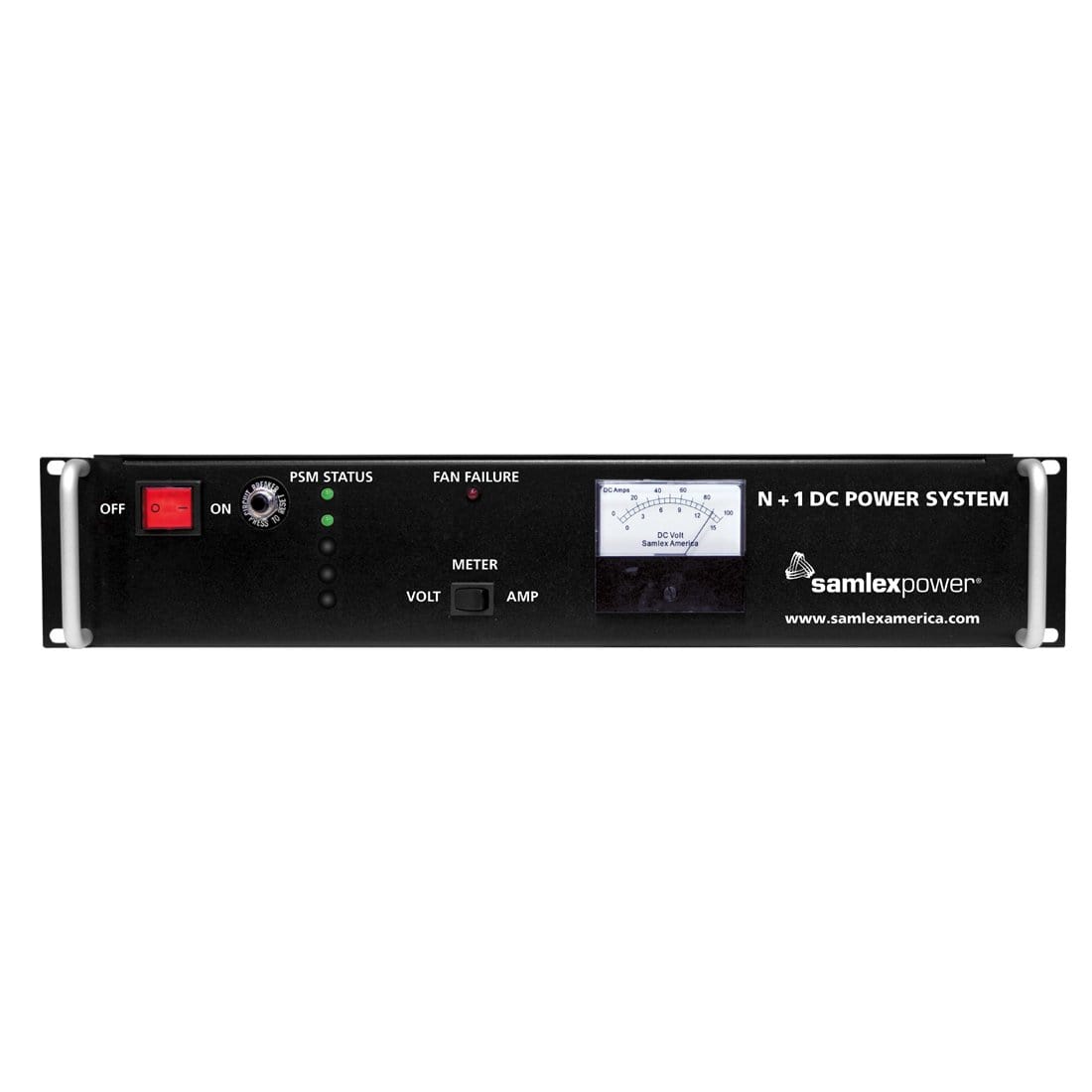

Samlex SEC-60BRM Rackmount Regulated 60 Amp Switching Power Supply

          Be the first to write a review
You Pay $466.92
$704.99 Save 34%
Free Shipping
3 In Stock!

Would you like to calculate shipping for this item?

The Samlex SEC-60BRM is an AC-DC power converter that provides a highly regulated DC output voltage of 13.8 volts at 60 amps of continuous power and comes mounted on a 19" 2U size rack plate. See the details tab for more details.

This unit was designed for use with critical power supply applications, telecommunications, mobile sound and audio displays, GPS receivers, security systems and CCTV systems. The output power on this unit can be expanded in steps of 20 amps up to a maximum of 100 amps. An external battery can be connected for back-up and a section of the output current (up to 8 amps) is diverted to charge the batteries when in a state of discharge using the built-in battery back-up module. The battery supplies the dc load on loss of utility power. Features of the SEC-BRM60 include n+1 redundancy, front panel analog volt/ampere meter display.

  • Comes mounted on a 19" 2u size rack
  • 25 pin D-Sub connector for remote monitoring system
  • Voltage / amp meter
  • Built-in battery back up module
  • Module status LED's, fault indicator LED's and fault alarm
  • Number of modules: 3
  • Cooling: forced air, 2 fans
  • Protections: short circuit, current limit, fan failure, (led and buzzer, input surge suppression
  • Power cord: 12 AWG / 3 conductor
  • Power cord plug: 125v, 20a, nema 5-20p
  • 2 year warranty



  • Input Voltage Tolerance : 105 to 125 vac, 50 / 60 hz
  • Input Current : 12 a
  • Nominal output voltage : 13.8 vdc
  • No load output voltage : 14 vdc
  • Full load output voltage : 13.55 vdc
  • Regulation : 1%
  • Continuous current output : 60 a
  • Surge output current : 69 a
  • Output current limit : 72 a
  • Maximum battery charging current : 8 a
  • Output ripple : 150mv
  • Output noise : 0.9 v
  • Fuse : 250 v, 4a
  • Circuit Breaker : 125 /250 v, 25a
  • Dimensions : 19"L x 15.9"W x 3.6"H
  • Weight : 22 lbs
  • Amps : 60 Amps
  • Brand : Samlex
