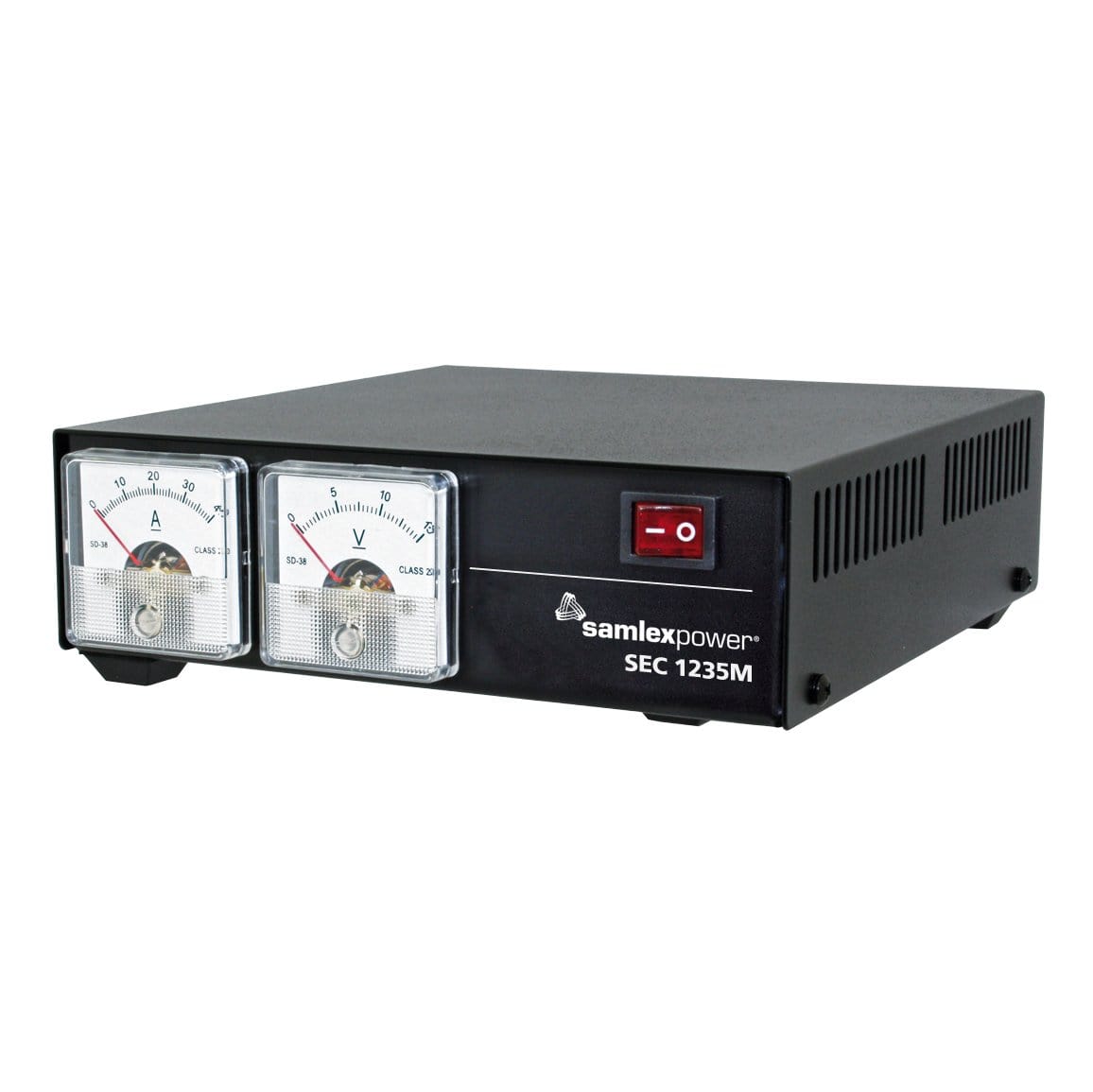

Samlex SEC-1235M Regulated 30 Amp Switching Power Supply With Volt And Amp Meter - $134.66 $189.99
          be the first to write a review

ATTENTION: We are still operational and fulfilling orders.

Due to the Covid-19 outbreak there may be slight delays in shipping.

Samlex SEC-1235M Regulated 30 AMP

          Be the first to write a review
You Pay $134.66
$189.99 Save 29%
Free Shipping
Product out of stock

Would you like to calculate shipping for this item?

The Samlex SEC-1235 is a UL approved ac-dc power converter that provides a highly regulated dc output voltage of 13.8 volts at 30 amps. Use the Samlex SEC-1235 with your land or mobile radio. Plus, this unit comes with a 3-year warranty. See below for additional details and more information.

This unit was designed for use with land and mobile radios and produces clean reliable highly filtered power that suppress RFI. The input voltage on the sec-1235 can be set at 120vac or 240vac. This unit features a metal case, non-skid rubber feet, temperature controlled cooling fan and has an illuminated on-off switch. The SEC-1235 carries a manufacturers 3 year warranty and is UL listed to both USA & Canadian safety standards.

  • Based on switched mode technology and pwm control
  • Compact and light weight
  • Cooling: temperature controlled cooling fan
  • Protections:overload, short circuit and over temperature
  • Applications:two way radio base station, communications systems, security systems, test equipment, plotters, gps receivers, automotive and marine displays, DC computers, 12 volt lighting systems and oem applications
  • Safety certification: UL listed, ul60950-1, e179076
  • Emi (emissions)compliance: fcc part 15(b), class b devices
  • AC input connections:male ac inlet connector type "iec 320-c14"detachable ac power cord with female connector type "iec 320-c13" on one end to mate with ac power inlet connector on the power supply. Male, 2 pole 3 wire grounding (3 prong) plug type "nema5-15p" on the other end for connection to the ac outlet.
  • DC output connections:red (+) and black (-) terminals with tubular hole and set screw. Hole diameter 0.2", (5mm). Includes a pair of copper terminal lugs for crimping to output wires to the load
  • Input side fuse:for 120 ac input: rating 250 v, 8a, manufacturer: littelfuse, model 218008. For 230 vac input:rating 250v, 4a manufacturer: littelfuse, model 218004
  • 3 year warranty


  • Input Voltage : 120vac, 60hz (100vac-130vac)
  • Output Voltage : 13.8 vdc regulated
  • Output voltage adjustment : 11.5 vdc to 15.5 vdc with the Help of internal potentiometer
  • Continuous current output : 30a
  • Current limit : 35a, constant current limiting, auto recovery
  • No load current draw : 120ma at 120vac
  • Output ripple : 50mv peak to peak
  • Output noise : 150mv peak to peak
  • Peak efficiency : 85%
  • Temperature Range : 0-40c
  • Dimensions : 8"L x 7.3"W x 2.5"H
  • Weight : 3.4 lbs
  • Brand : Samlex
  • Output Voltage : 12 Volts
  • Amps : 30 Amps
