SAMLEX SEC-1223R1 RACKMOUNT 23 AMP REGULATED SWITCHING POWER SUPPLY - $131.42 $227.99
          be the first to write a review

ATTENTION: We are still operational and fulfilling orders.

Due to the Covid-19 outbreak there may be slight delays in shipping.

SAMLEX SEC-1223R1 RACKMOUNT 23 AMP REGULATED SWITCHING POWER SUPPLY

          Be the first to write a review
You Pay $131.42
$227.99 Save 42%
Free Shipping
Product out of stock

Would you like to calculate shipping for this item?

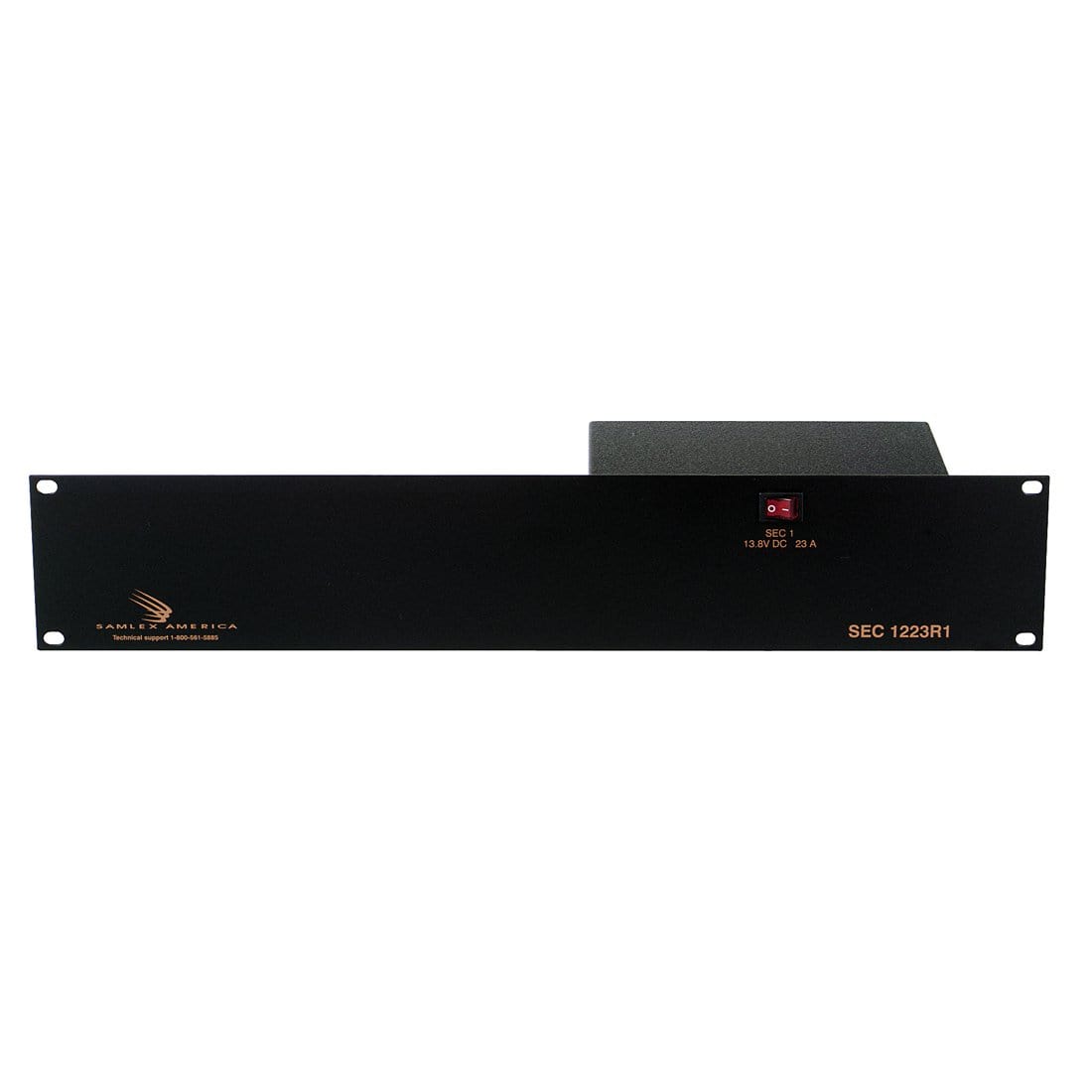

The Samlex SEC-1223R1 is a UL-60950-1 approved ac-dc power converter that provides a highly regulated dc output voltage of 13.8 volts at 23 amps and comes mounted on a 19" 2u size rack plate. See the details tab for more information.

This unit was designed for use with land and mobil radios and produces clean reliable highly filtered power that suppress RFI. The input voltage on the SEC-1223R1 can be set at 120vac or 240vac. The unit features advanced switch mode technology, a metal case, non-skid rubber feet, temperature controlled cooling fan and has an illuminated on-off switch. The sec-1223R1 carries a manufacturers 3 year warranty and conforms to fcc part 15(b)class b digital devise.

  • BASED ON SWITCHED MODE TECHNOLOGY AND PWM CONTROL
  • COMES MOUNTED ON A 19" 2U SIZE RACK
  • COMPACT AND LIGHT WEIGHT
  • CIRCUIT INNOVATIONS MINIMIZE OUTPUT VOLTAGE RIPPLE AND RFI
  • COOLING: TEMPERATURE CONTROLLED COOLING FAN
  • PROTECTIONS:OVER CURRENT, SHORT CIRCUIT AND OVER VOLTAGE (THROUGH PWM CONTROLLER)AND OVER TEMPERATURE SHUT DOWN
  • ENVIRONMENTAL TEMPERATURE RANGE:0-30C
  • AC INPUT:DETACHABLE POWER CORD C/W NEMA 5-15P PLUG
  • DC INPUT:TERMINALS WITH TUBULAR HOLD DIA. 0.2" (5mm) WITH SET SCREW
  • APPLICATIONS:TWO WAY RADIO BASE STATION, COMMUNICATIONS SYSTEMS, SECURITY SYSTEMS, TEST EQUIPMENT, PLOTTERS, GPS RECEIVERS, AUTOMOTIVE AND MARINE DISPLAYS, DC COMPUTERS, 12 VOLT KIGHTING SYSTEMS AND OEM APPLICATIONS
  • FUSE RATING:5mm X 20 mm GLASS FUSE, 125V OR 250 V (TIME DELAY / SLOW BLOW), 6.3A
  • BUSSMANN:GDC-6.3
  • LITTLEFUSE 239003
  • SAFETY CERTIFICATION:UL LISTED, UL60950-1, E179076
  • EMC CONFORMITY:FCC PART 15(B), CLASS B DIGITAL DEVICE
  • UL LISTED TO BOTH USA & CANADIAN SAFETY STANDARDS
  • 3 YEAR WARRANTY



  • Input Voltage : 120VAC, 60Hz
  • Output Voltage : 13.8 VDC REGULATED
  • Output ripple : 150mV
  • Output noise : 150mV
  • Continuous current output : 23A
  • Current limit : 25A
  • Dimensions : 7"L X 8.3"W X 2.2"H
  • Weight : 3.5 LBS
  • Brand : Samlex
  • Output Voltage : 12 Volts
  • Amps : 23 Amps
