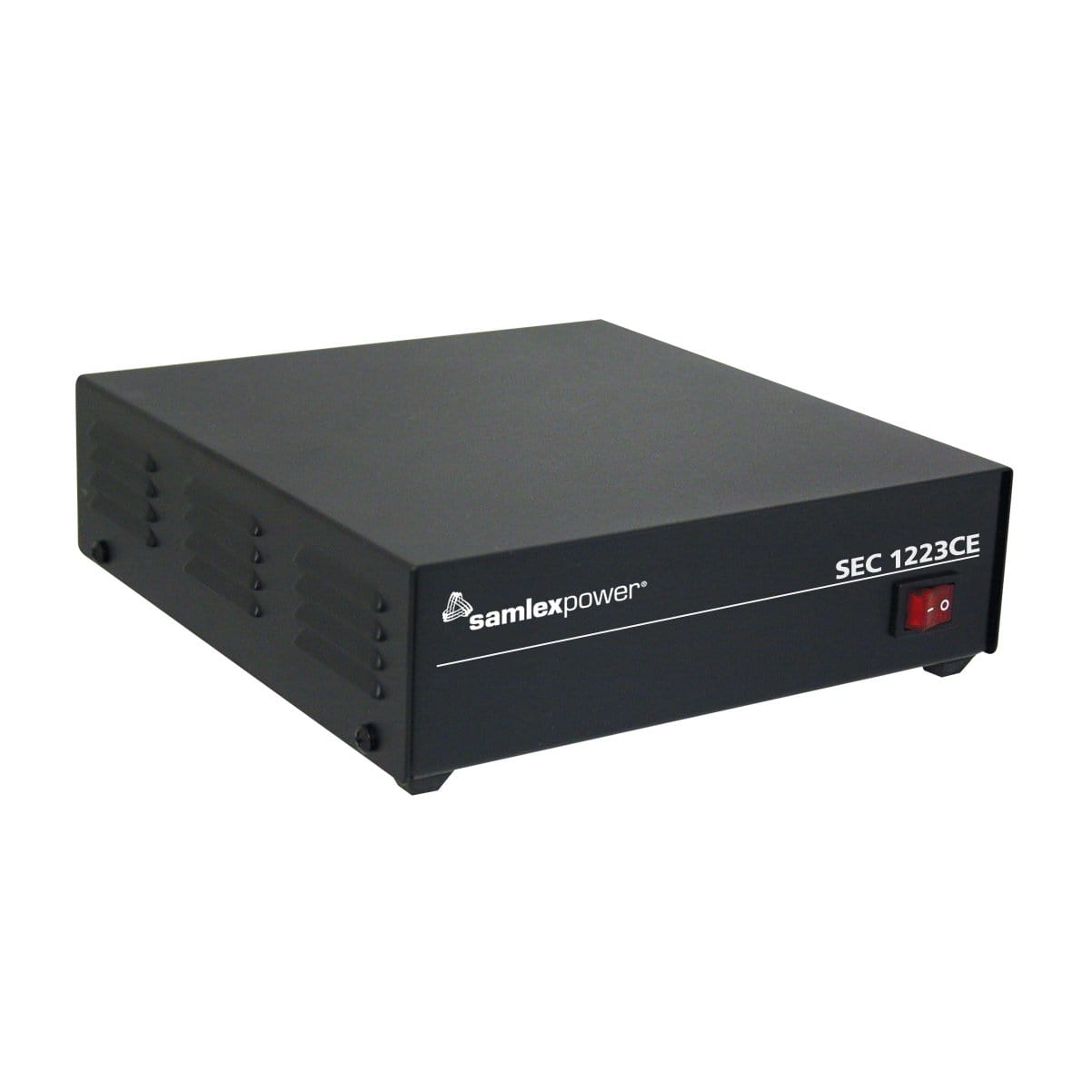

Samlex SEC-1223CE Regulated European 23 Amp Switching Power Supply

          Be the first to write a review
You Pay $130.19
$182.99 Save 29%
Free Shipping
Product out of stock

Would you like to calculate shipping for this item?

The Samlex SEC-1223CE is a European ac-dc power converter that provides a highly regulated dc output voltage of 13.8 volts at 10 amps. See the details tab for more information.

This unit was designed for use with land and mobil radios and produces clean reliable highly filtered power that suppress RFI. The input voltage on the SEC-1212CE can be set at 120vac or 240vac. This unit features a metal case, non-skid rubber feet and has an illuminated on-off switch. It comes with a detachable power supply cord with a schuko plug. The SEC-1223CE carries a manufacturers 3 year warranty.

  • Based on switched mode technology and pwm control
  • Compact and light weight
  • Circuit innovations minimize output voltage ripple and rfi
  • Cooling: temperature controlled cooling fan
  • Protections:over current, short circuit, over temperature shut down and over voltage (through pwm controller)
  • Environmental temperature range:0-40c
  • AC input:detachable power cord with schuko plug
  • DC output:terminals with tubular hold dia 0.2" (5mm)with set screw
  • Fuse rating:5mm x 20mm glass fuse, 250 v slow blow), 4a
  • Safety standard:en60950
  • Emi/emc standard: en55022 class b; en6100-3-2,3; en61000-4-2,,11
  • 3 year warranty


  • Input Voltage : 230vac, 50hz
  • Output Voltage : 13.8 vdc +/- 1% regulated
  • Output ripple : 150mv
  • Output noise : 150mv
  • Output Current : 25 a
  • Current limit : 25 a
  • Dimensions : 7"L x 8.3"W x 2.2"H
  • Weight : 3.5 lbs / 1.56kg
  • Brand : Samlex
  • Output Voltage : 12 Volts
  • Amps : 23 Amps
