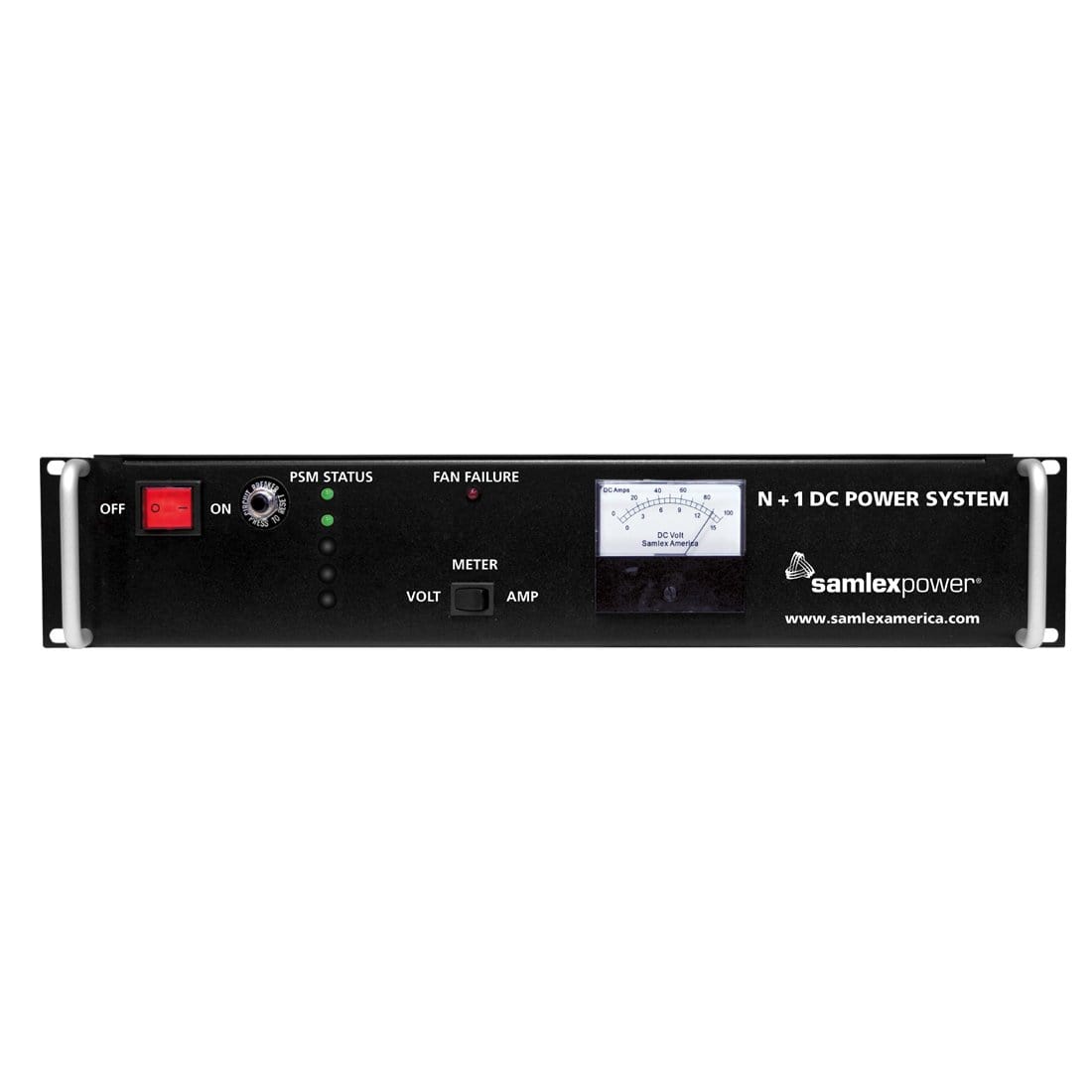

Samlex SEC-100BRM Rackmount Regulated 100 Amp Switching Power Supply

          Be the first to write a review
You Pay $604.38
$916.99 Save 34%
Free Shipping
1 In Stock!

Would you like to calculate shipping for this item?

The Samlex SEC-100brm is an ac-dc power converter that provides a highly regulated dc output voltage of 13.8 volts at 100 amps of continuous power and comes mounted on a 19" 2u size rack plate. See the details tab for more information.

This unit was designed for use with critical power supply applications, telecommunications, mobile sound and audio displays, GPS receivers, security systems and CCTV systems. An external battery can be connected for back-up and a section of the output current (up to 8 amps) is diverted to charge the batteries when in a state of discharge using the built-in battery back-up module. The battery supplies the dc load on loss of utility power. Features of the SEC-100BRM include n+1 redundancy, front panel analog volt/ampere meter display.

  • Comes mounted on a 19" 2u size rack
  • 25 pin d-sub connector for remote monitoring system
  • Voltage / amp meter
  • Built-in back up battery module
  • Module status led's, fault indicator led's and fault alarm
  • Maximum battery charging current: 8 a
  • Output ripple(peak to peak):150mv
  • Output noise (peak to peak): 0.7 v
  • Cooling: forced air, 2 fans
  • Protections: short circuit, current limit, fan failure, (led and buzzer, input surge suppression
  • Power cord: 12 awg / 3 conductor
  • Power cord plug: 125v, 20a, nema 5-20p
  • 2 year warranty



  • Input voltage range : 105 to 125 vac, 50 / 60 hz
  • Number of modules : 5
  • Input Current : 16 a
  • Output Voltage : 13.8 vdc (Nominal)
  • No Load DC Output Voltage : 14 vdc
  • Output voltage (full load) approx : 13.35 vdc
  • Output voltage regulation : 1%
  • Continuous current output : 100 a
  • Surge output current : 115 a
  • Output Current : 120 a (Limit)
  • Fuse : 250 v, 4a
  • Circuit Breaker : 125 /250 v, 25a
  • Dimensions : 19"L x 15.9"W x 3.6"H
  • Weight : 25 lbs
  • Amps : 100 Amps
  • Brand : Samlex
