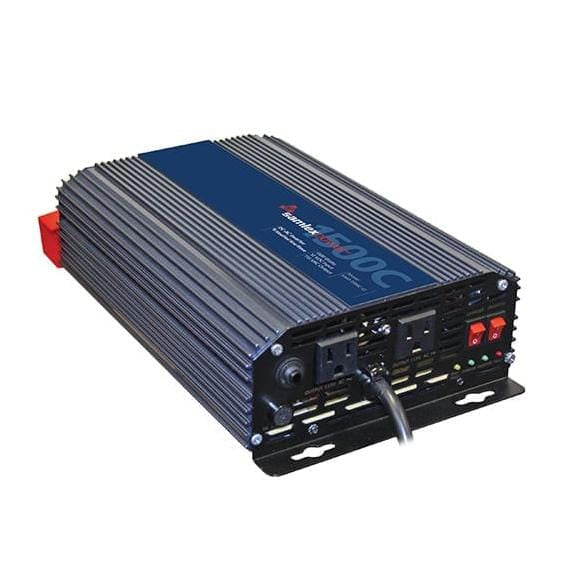

Samlex SAM-1500C-12 Modified Sine Wave Inverter Charger With 15 Amp Battery Charger

          Be the first to write a review
You Pay $326.31
$376.99 Save 13%
Free Shipping
Product out of stock

Would you like to calculate shipping for this item?

The Samlex SAM-1500C-12 is an all-in-one robust unit that integrates a 1500W Modified Sine Wave Inverter, 30A Transfer Switch and a Two Stage 12V, 15 Amp Battery Charger. See the details tab for more information.

The transfer switch automatically detects utility or generator power and seamlessly transitions to your battery bank when grid power is unavailable. Also provides safe and rapid charging of 12V battery bank when gird power is available. Features of this unit include a separate on / off control for the inverter and battery charger, load control cooling fan and electronic protections

  • Integrated 1500W Modified Sine Wave Inverter, 30A Transfer switch, and 2 Stage 12 VDC, 15A Battery Charger
  • High efficiency, lightweight, and compact for easy installation
  • Separate ON/OFF control for Inverter and Battery Charger for selectable operation as inverter, charger or UPS function
  • Heavy Duty stud connectors
  • 4 color LED indicators to monitor operational status
  • Load controlled fan for efficient cooling when required
  • Allows use of higher capacity external 12V battery bank for longer backup time
  • Neutral to Ground Bond Switching Relay for grounding compliance
  • Electronic protections including GFCI when in Inverter Mode
  • Ideal for RV's, Trucks and remote housing
  • Inverter on/off control By front panel Switch
  • Output - Grid Pass Through: Nominal voltage, frequency of grid, 120 VAC, 60 Hz
  • Battery System Voltage: 12V (10.5V to 15.5V - 0.5V)
  • DC current draw from battery at rated output power: 150A
  • DC no load current draw in inverter mode: 0.65A to 0.85A
  • Input-Grid nominal voltage, frequency: 120 VAC, 60 Hz
  • Input-Grid maximum ac input current - GRID pass through: 15A (Protected by 15A breaker
  • Current rating of transfer relay: 30A
  • Transfer time from grid to inverter: 2 to 3 seconds
  • Transfer time from inverter to grid: Up to 1 second
  • Charging Algorithm: 2 Stage Charger - Bulk & Float
  • Bulk charge/max. charging current: 15A
  • Maximum ac input current: < 5A
  • AC input power factor: 0.6
  • Voltage & current rating of Fuse/Breaker: 125V/250V, 5A
  • Charger on/off control By front panel Switch
  • Overload shutdown protection: Yes. Manual reset.
  • Low battery input (voltage) alarm :10.8 - 0.3V
  • Low battery (input) voltage shutdown: 10.5 - 0.3V
  • Battery (input) over voltage shutdown: > 15.5V
  • Cooling - load controlled fan: Inverter Mode: ON at 85WCharging Mode: ON at charging current > 3A - 1A
  • Over temperature shutdown: Yes. Auto reset
  • Ground Fault shutdown: Yes. Manual Reset.
  • DC input reverse polarity: Fuse 240A (8 pcs. 30A Automotive Type ATC Fuses in parallel)
  • DC input: Nut & Bolt, M9
  • AC input / AC output: 6 foot cord with NEMA5-15P Plug / 2 x NEMA5-15R Outlets
  • 2 year warranty
  • Continuous Output Power : 1500W (Power Factor = 1)
  • Surge power : 3000W (Maximum)
  • Output Voltage : 115 VAC, +10% / -5% (Nominal)
  • Output Frequency : 60 Hz - 5%
  • Peak efficiency : 90% (@ 50% load)
  • Float Voltage : 13.8V - 0.3V
  • Operating Temperature : 0 degrees C to 25 degrees C / 32 degrees F to 77 degrees F at 100% loading
  • Operating humidity : < 80%; Non-condensing
  • Dimensions : 202"W x 345"D x 84"H mm / 7.95 x 13.58 x 3.30 in
  • Weight : 4.0 kg / 8.82 lb
  • Output Voltage : 12 Volts
  • Amps : 15 Amps
  • Wattage : 1500 Watts
  • Type : Modified Sine Wave
