Description

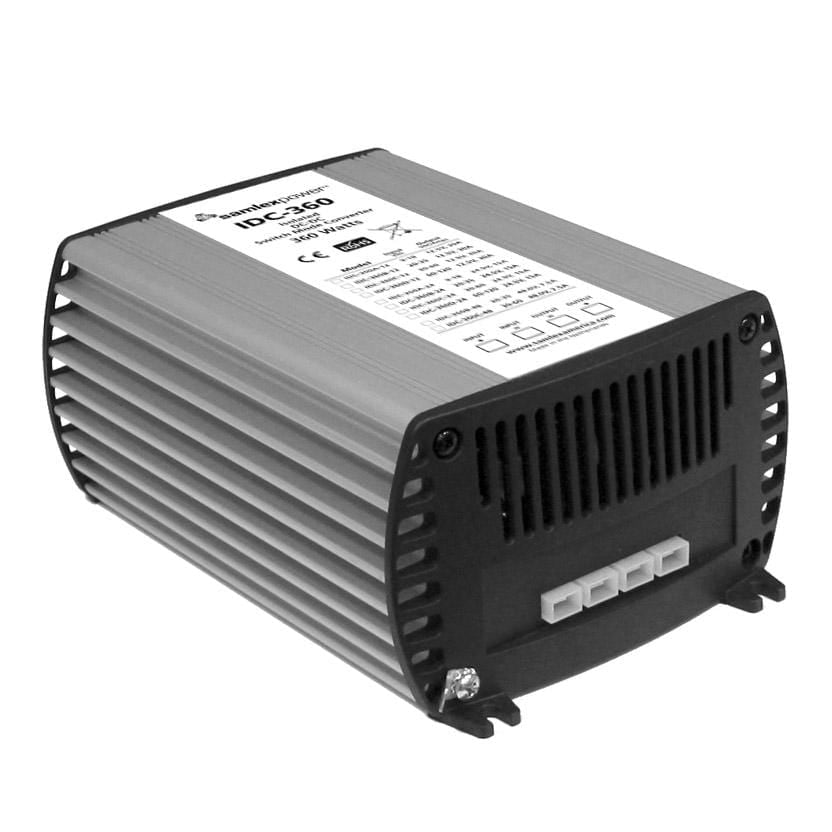

The IDC-360A-12 is a highly efficient 360 watt isolated DC-DC converter suitable for applications requiring galvanic isolation between the input and the output.
Specifications
| amps | 30 Amps |
| humidity | (Non-condensing) Max 95% |
| input current | (At input of 9 vdc): 47A (Max) |
| input voltage range | 9 -18 VDC |
| output voltage | 12 Volts |
| peak efficiency | 0.85 |
| Wattage | 360 Watts |
