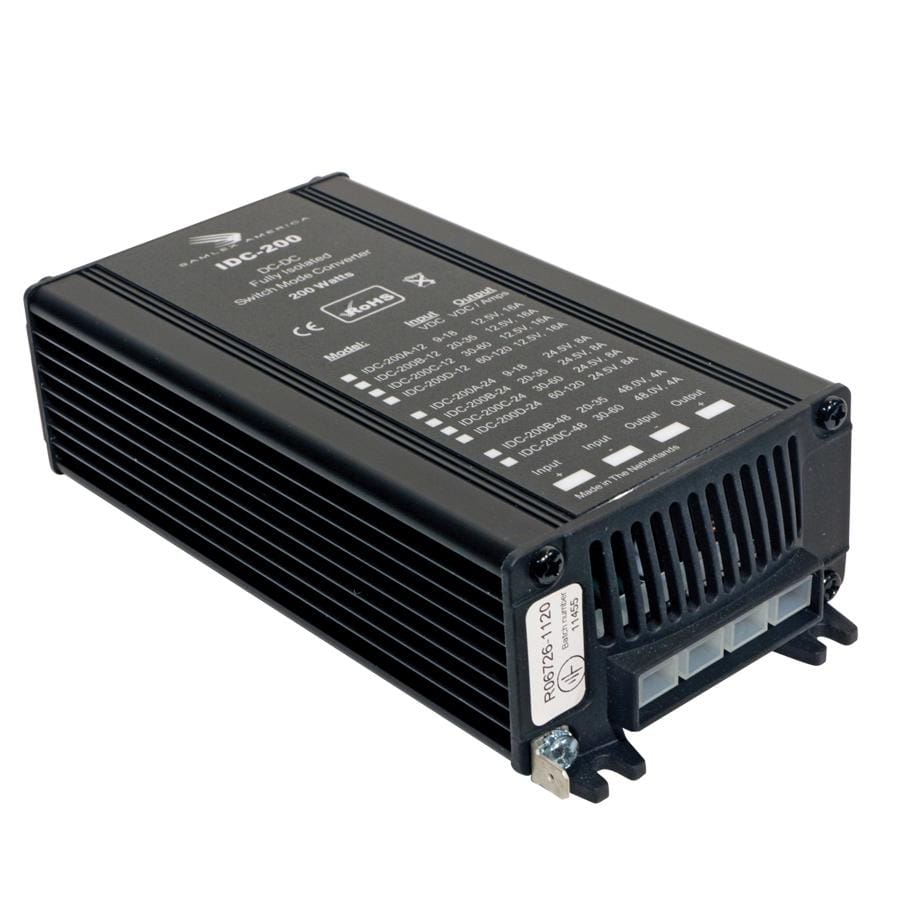

Samlex IDC-200C-24 Converter

          Be the first to write a review
You Pay $145.02
$178.60 Save 19%
Free Shipping
4 In Stock!

Would you like to calculate shipping for this item?

The IDC-200C-24 is a highly efficient 200 watt isolated DC-DC converter suitable for applications requiring galvanic isolation between the input and the output. See the details tab for more information.

The unit provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this Samlex isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The IDC-200C-24 comes with 1/4" push-on flat blade "quick disconnect" connectors. This unit is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

  • Fully isolated
  • Current limited
  • Input to output isolation: Yes. > 400V RMS
  • Output ripple & noise: < 50 mV RMS
  • Cooling by temperature controlled fan
  • Protections:Overload / short circuit on the output side, over voltage on the output side, over voltage / transients on the input side, reverse polarity on the input side, over heating
  • External input side Fuse (Inline with "input +" terminal) 80V, 10A
  • External output side Fuse (Inline with "output +" terminal) ) 32V, 10A
  • Input wire (Up to 6 ft): AWG # 14
  • Output wire (Up to 10 ft): AWG # 12
  • SAFETY & EMC: Emission EN50081-1 / EN61000-6-3Immunity EN50082-1 / EN61000-6-1Automotive 95 / 54 / EC:
  • Input / Output connections Quick connect male 6.3mm / 1/4" flat blade
  • Dimensions, mm (L x w x H) 176 x 88 x 50
  • Dimensions, inches (L x w x H) 6.9 x 3.5 x 1.9
  • Weight: KG 0.6
  • Weight: LB 1.4
  • CE approved
  • 2 year warranty
  • Input voltage range : 30 -60 VDC
  • Output Current : 8A
  • Peak efficiency : 85%
  • Operating Temperature : -20 degrees C to +30 C degrees , De-rate linearly to zero at 70 degrees C
  • Humidity : (Non-condensing) Max 95%
  • Output Voltage : 24 Volts
  • Amps : 8 Amps
