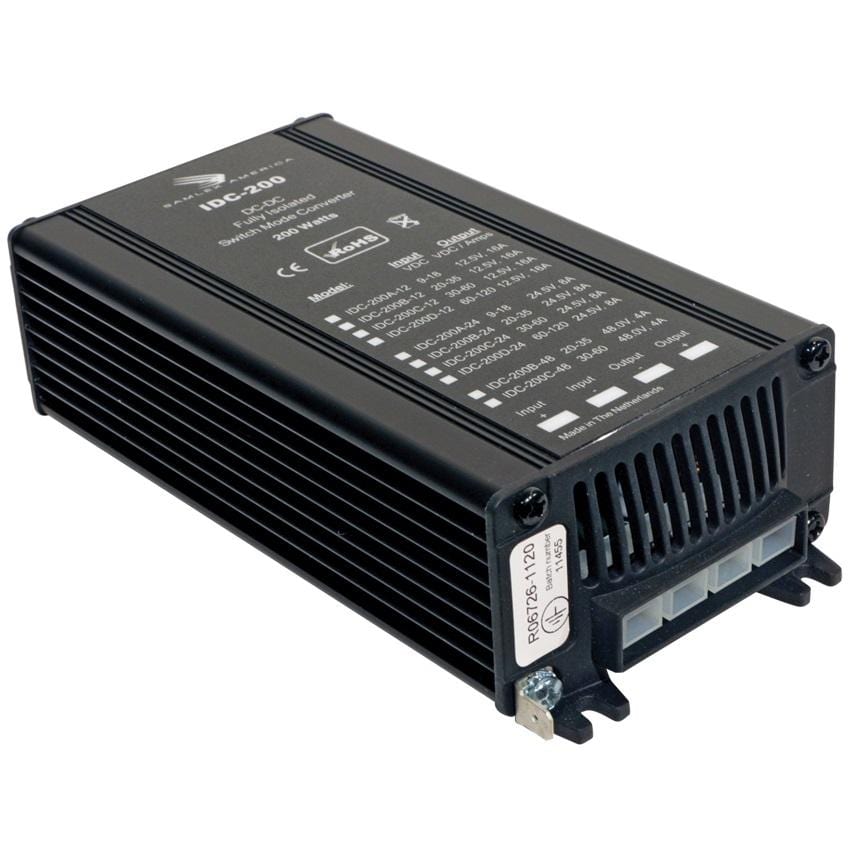

Samlex IDC-200B-24 Fully Isolated Step-Down Converter

          Be the first to write a review

Would you like to calculate shipping for this item?

The Samlex IDC-200B-24 is a fully isolated step-down DC to DC converter. See below for further information.



The Samlex IDC-200B-24 step-down 200 watt DC to DC converter is designed to for applications requiring galvanic isolation between the input and output. The unit features fold-back current limiting, full input and output isolation, and comes with pre-installed 1/4" push-on flat blade quick disconnect connectors.

  • EMI/EMC Compliant, Conforms to EN50081-1, EN50082-1, European Automotive Directive 95/54/CE
  • Safety Protections: Overheating, Reverse Polarity, Short Circuit, Overvoltage
  • Compact black colored housing
  • Designed for heavy-duty terrestrial and marine applications
  • 2 Year Limited Warranty
  • Input Voltage : 20 to 35 Volts DC
  • Output Voltage : 24.5 Volts DC
  • Amps : 8 Amps @ 35VDC Input
  • Weight : 1.4 lbs
  • Dimensions : 6.9"L x 3.5"W x 1.9"H
