Description

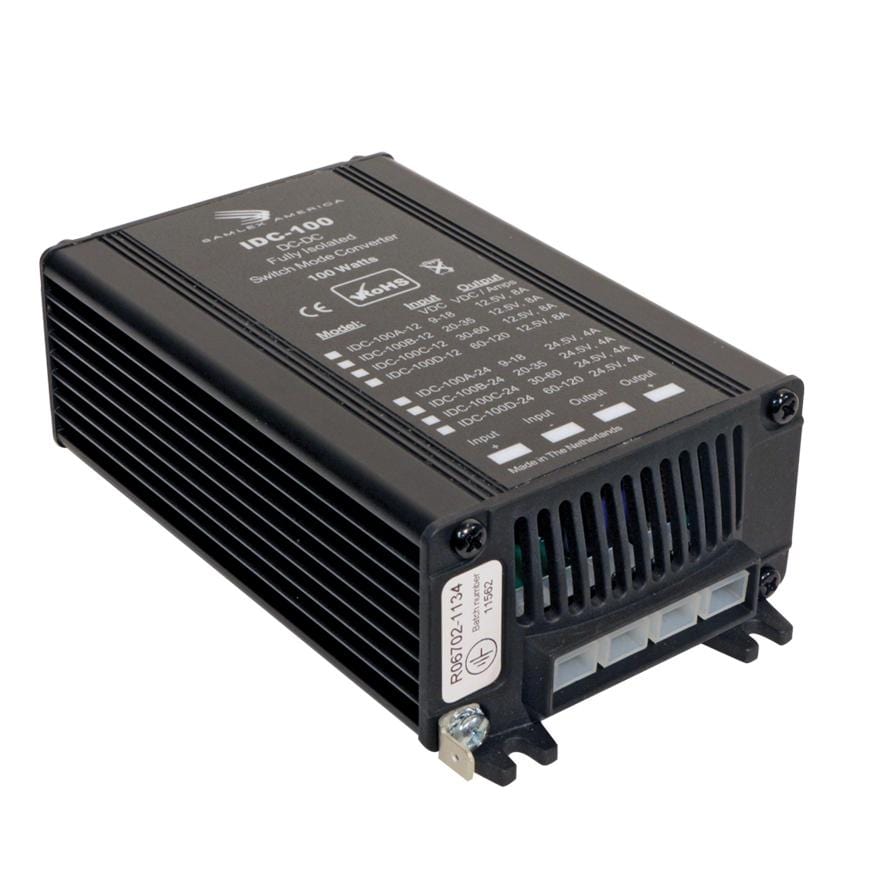

The IDC-100C-24 is a highly efficient 100 watt isolated DC-DC converter suitable for applications requiring galvanic isolation between the input and the output.
Specifications
| amps | 4 Amps |
| humidity | (Non-condensing) Max 95% |
| input voltage range | 30-60 VDC |
| operating temperature | -20 degrees C to +30 degrees C, De-rate linearly to zero at 70 degrees C |
| output current | 4A |
| output voltage | 24 Volts |
| peak efficiency | 0.85 |
| wattage | 100 Watts |
