Description

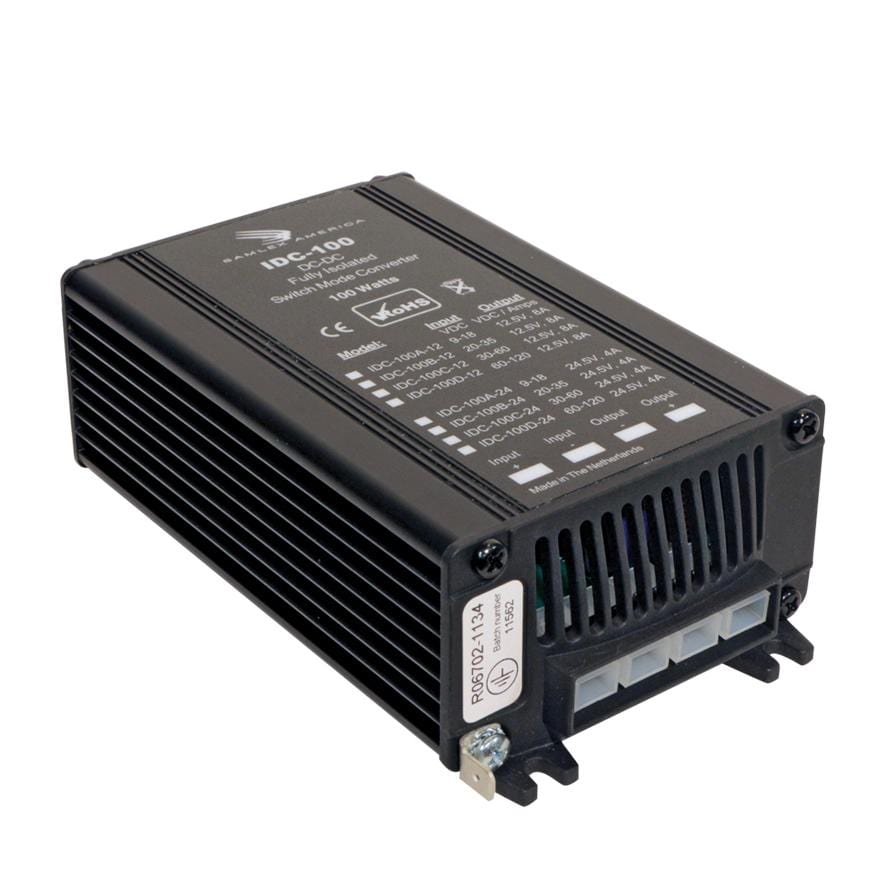

The IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input).
Specifications
| amps | 8 Amps |
| humidity | (Non-condensing) Max 95% |
| input voltage range | 9 -18 VDC |
| output current | 8A |
| output voltage | 12 Volts |
| peak efficiency | 0.85 |
| wattage | 100 Watts |
