Description

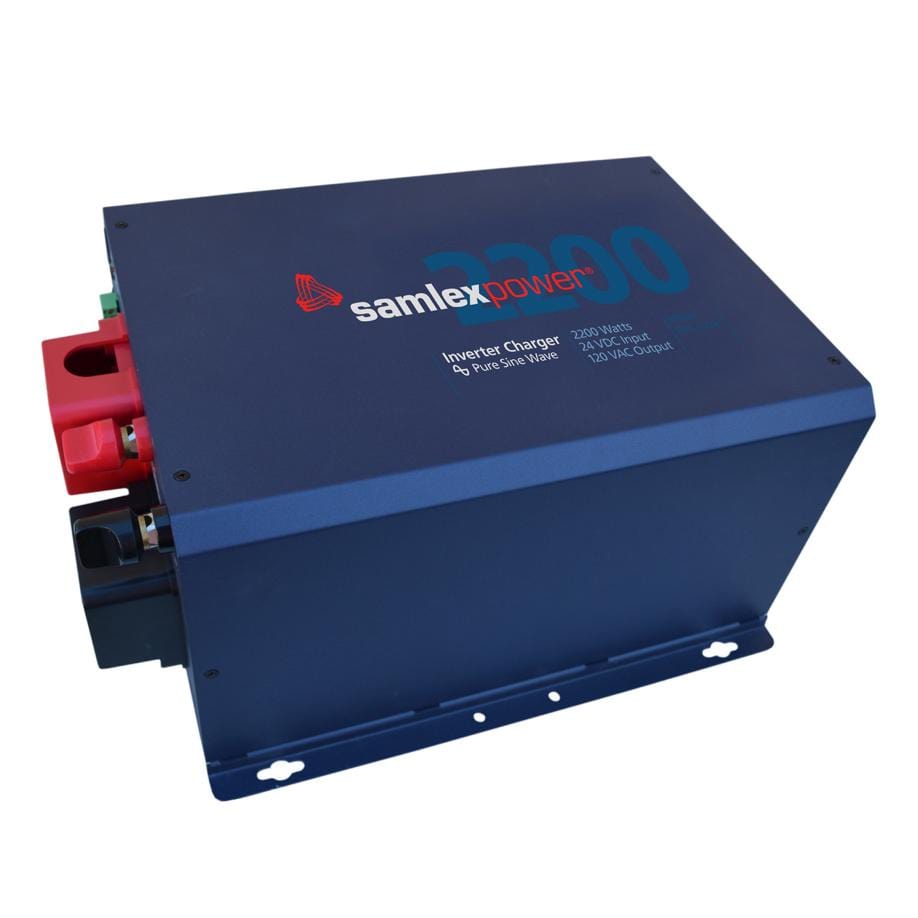

Pure Sine Wave Inverter, Adaptive Battery Charger, Transfer Relay -All in ONE unit.
Specifications
| continuous current output | 18 amps |
| continuous output power | at 25 degrees C: 2200 VA |
| dimensions | 12.79"W x 16.77"D x 8.15"H (325 x 426 x 207mm) |
| efficiency | 86% (Charger) |
| fuse | External |
| input | 24 VDC |
| input voltage range | >18 - 34 Volt DC |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees c to +60 degrees c (-4 degrees f to 140 degrees f) |
| output voltage | 24 Volts |
| peak efficiency | 0.93 |
| power factor | > 0.95 |
| storage temperature | -40 degrees c to +70 degrees c (-40 degrees f to 158 degrees f) |
| surge power | 6600 Watts |
| type | Pure Sine Wave |
| wattage | 2200 Watts |
| weight | 57 lb. / 26 kg |
