Description

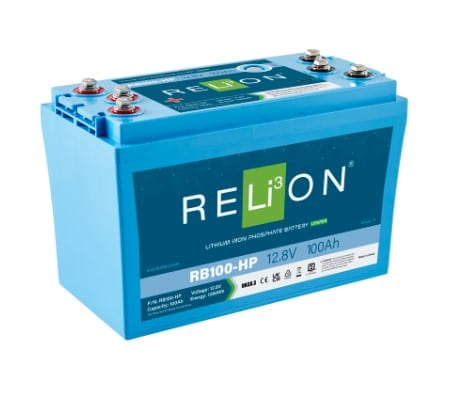

The RB100-HP is a lithium iron phosphate battery, built for starting and cycling marine and RV applications. The RB100-HP has increased peak amps for starting motors, electric start generators, and other high-amp-draw devices – plus, it doubles as a house battery, powering peripherals, accessories, and more. These items ship directly from the manufacturer.
|
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Reserve Capacity @ 25 A | 240 min |
| Energy | 1280 Wh |
| Resistance | ≤30 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Series Connections | No. 12V systems only. |
| Parallel Connections | No. 1 battery only. |
|
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 13.0 x 6.8 x 8.8” (329 x 172 x 223 mm) |
| Weight | 29.8 lbs (13.5 kg) |
| Terminal Type | M8 x 1.25 x 12 mm |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
