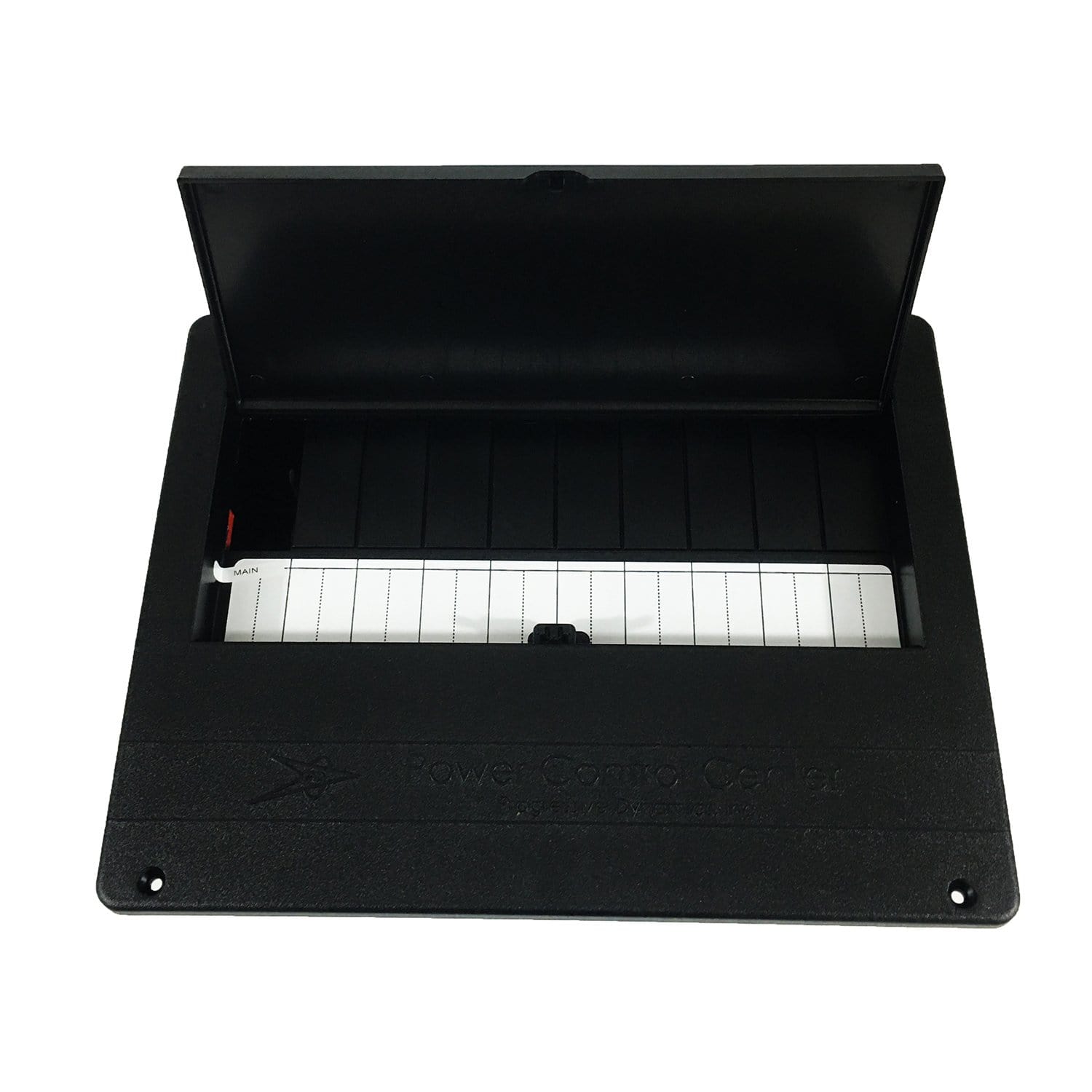

Progressive Dynamics PD55K001 Black AC Power Control Center 30 Amp / 120 VAC

Save $128.22
Samlex AmericaSKU: PD55K001

Price:
Sale price$72.59 Regular price$200.81
Stock:
In stock (11 units)
Free Shipping* (Some exclusions apply)

Description

The Progressive Dynamics PD55K001 is a black AC power control center rated at 30 Amp / 120 VAC. It features 10 single (30Amp 120VAC) circuits with one 15-position neutral bar. Input includes 12 Romex retainers with a maximum 30 Amp main breaker. Output consists of 9 branch circuits, each with a maximum capacity of 30 Amps, along with 11-position neutral and ground buss bars.

Replaces: PD55B001

Features:

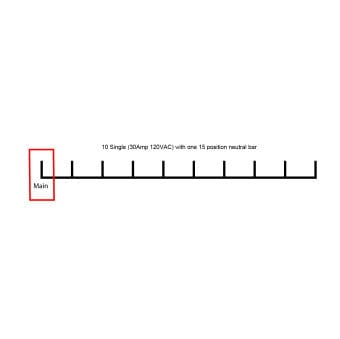

  • 10 Single (30Amp 120VAC) with one 15 position neutral bar
  • Attractive lightweight panel design made from black impact-resistant high temperature polymers
  • Designed with large front wiring compartment
  • Press open door for easy access to circuit breakers.
  • AC Panel features 12 built-in push and lock strain relief connectors

Specifications

Cut-out size 10.5”W x 7.5”H
Dimensions 11.7”W x 9.2”H x 4.1”D
Input 12 Romex Retainers, Maximum 30 Amp Main Breaker
Output 9 Branch Circuits, Each 30 Amps Max; 11 Position Neutral & Ground Buss Bars
Weight 3 lbs
