Description

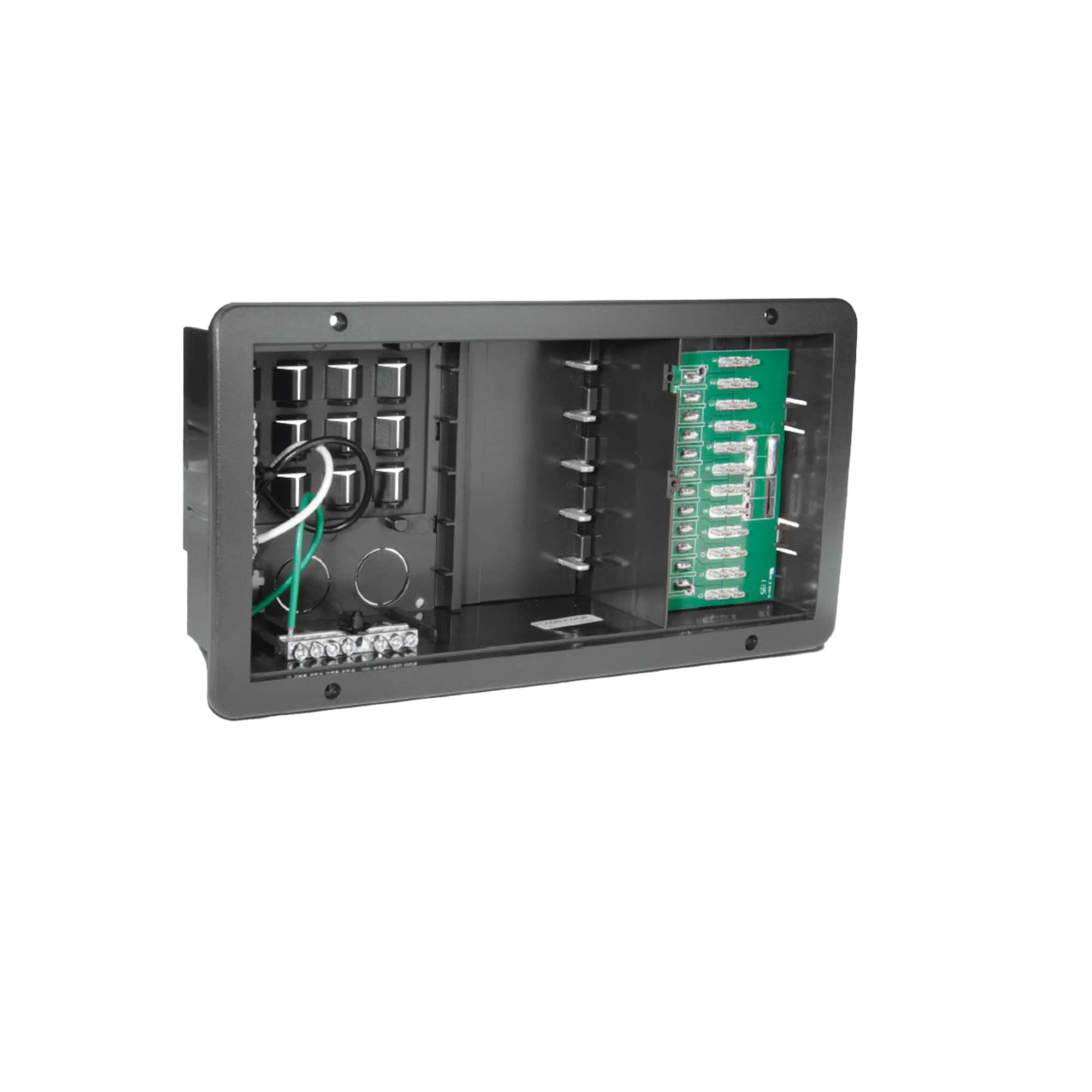

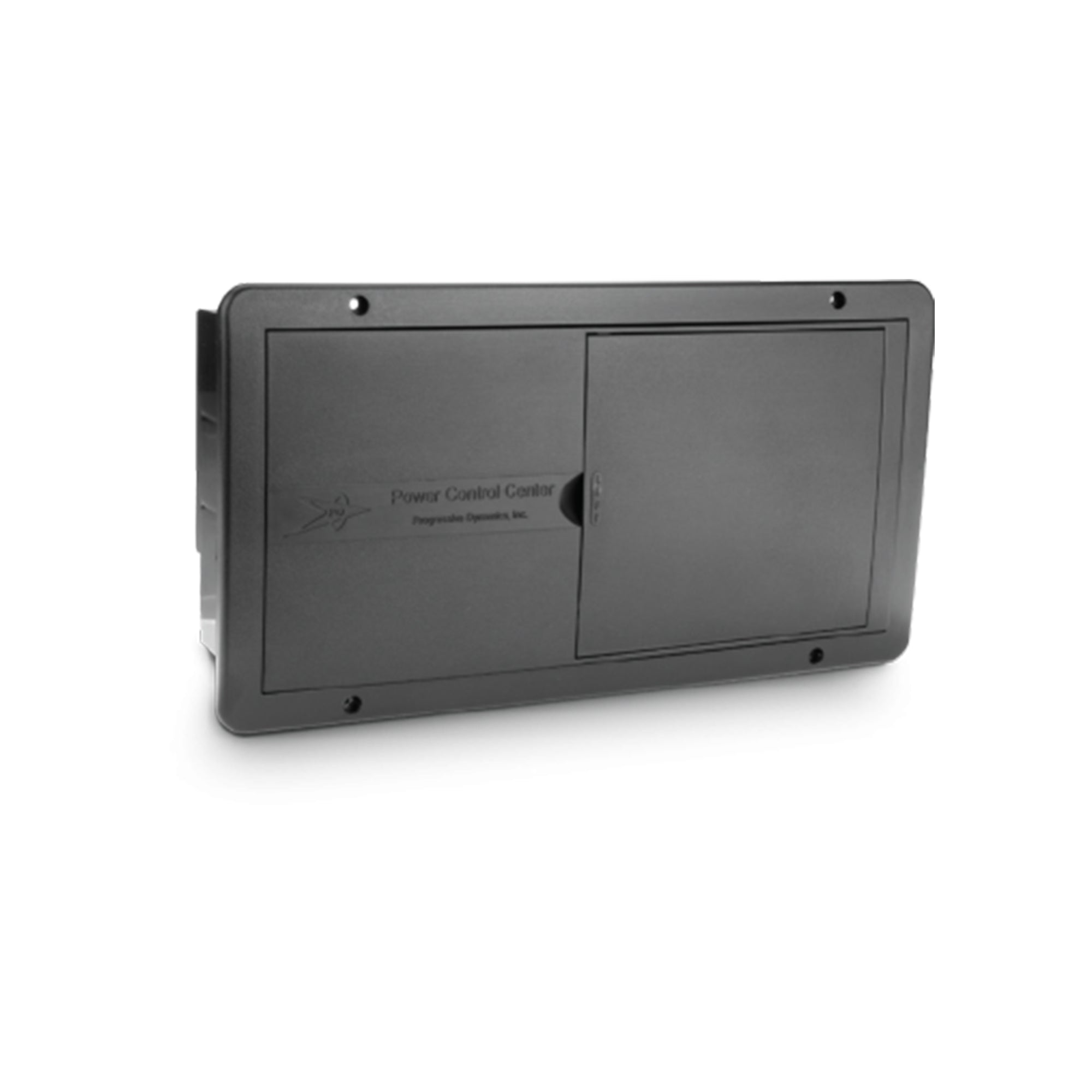

Progressive Dynamics PD50K3Q2GN 30 Amp 5000 Series AC/DC Distribution Panel Black 30A
Provisions for 30 Amp AC main and up to 9 AC branch circuits.
Generous wiring space for easy installation - also reduces costly wiring errors.
Built-in wire strain relief for each branch circuit. Saves over 50% on installation costs.
Space for up to 12 fused DC branch circuits for 12 Volt lighting and DC appliance circuits.
Accepts rated fuses up to 30 Amp - eliminates auxiliary fuse panels for slide-outs and leveling jacks saving you even more money.
Attractive lightweight panel design made from black impact-resistant high temperature polymers.
All 12 VDC branch circuit connections located on outside rear of panel - reducing installation time and costly errors.
High current 12 VDC input power terminal strip provides easy connection point for battery and converter.
Replaces:
PD50K3Q2GN
PD50B3Q2GN
Dimensions (In.): 13.4 W x 7.1 H x 4.0 D
Cut-out size (In.): 12.25 W x 5.875 H
Weight: 1.45 lbs.
