Description

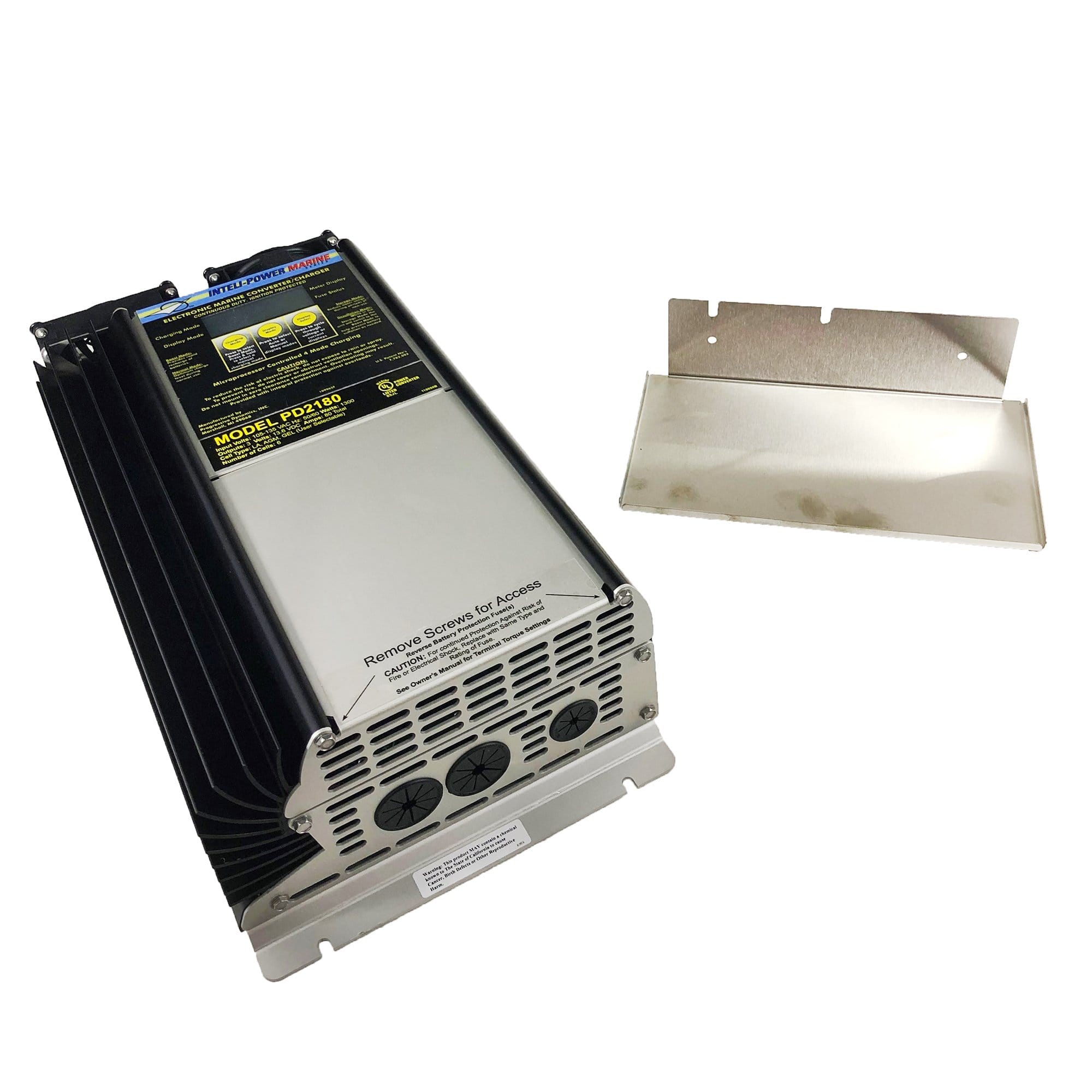

The PD2180V from Boat and RV Accessories is an 80-amp electronic marine converter/charger capable of charging up to three separate banks of batteries simultaneously. It features a microprocessor that monitors battery voltage and selects from four operating modes for safe, rapid recharging cycles.
The Storage Mode and Equalize Mode prevent battery gassing and water loss, while also addressing battery stratification and sulfation. Designed for the marine environment, it meets UL safety standards and includes a digital meter displaying current, voltage, operation mode, blown fuse indication, and battery type.
Features:
- Four-Stage Charging System
- 3 Diode Isolated Outputs
- Patented Reverse Battery Protection
- Over Voltage Protection
- Electronic Current Limiting
- Variable Speed Intelligent Cooling Fan
- Programmable in the Field
- Regulated Output Voltage
- Automatic Over-Temperature Shutdown
- Series or Parallel Connection
- 2 Year Limited Manufacturer's Warranty
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| amps | 80 Amps |
| dimensions | 15.2"L x 7.8"W x 4.2"H |
| input | 105-130 Volts AC, 50-60 Hz, 1300 Watts |
| weight | 9.2 lbs |
