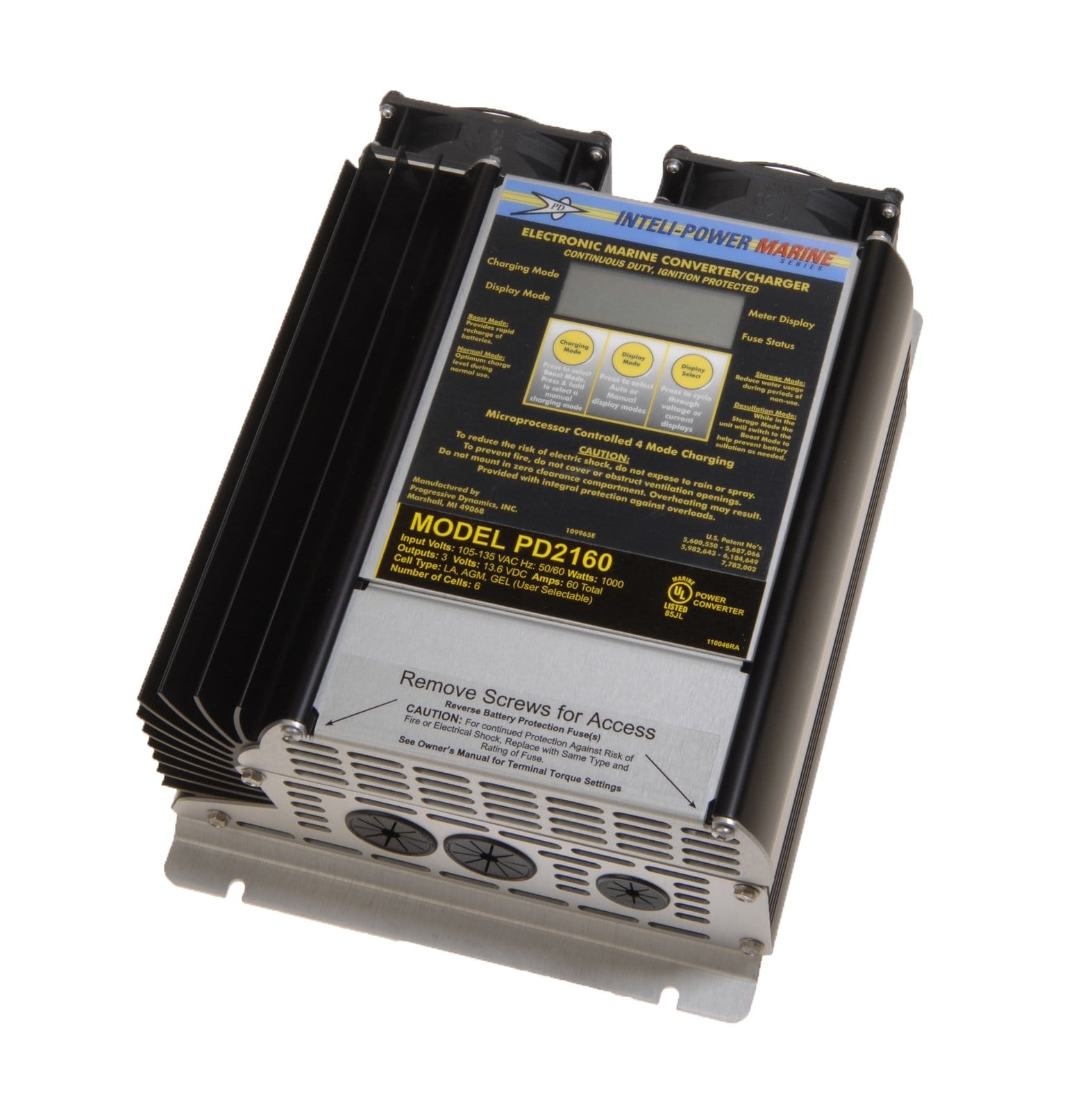

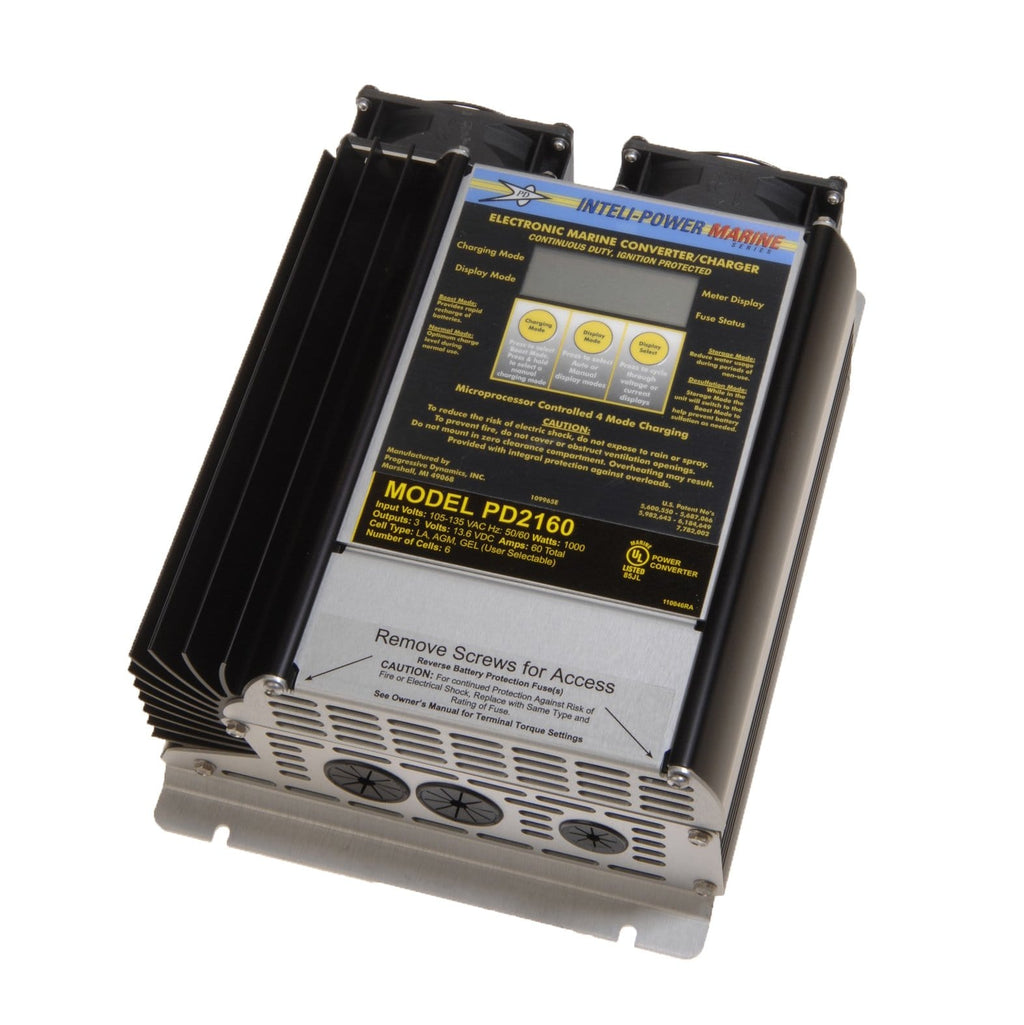

Progressive Dynamics PD2160 12 Volt 60 Amp Marine Converter Charger

Save $1,020.39

Price:
Sale price$577.67 Regular price$1,598.06
Stock:
In stock (11 units)
Free Shipping* (Some exclusions apply)

Description

The PD2160 is a robust 60-amp Electronic Marine Converter/Charger engineered to charge up to three separate banks of batteries simultaneously. It utilizes a microprocessor that monitors battery voltage, automatically selecting one of four charging modes for safe and efficient recharging cycles. The Storage Mode and Equalize Mode minimize battery gassing, water loss, stratification, and sulfation.

Equipped with a digital meter, the PD2160 displays current, voltage, operation mode, blown fuse indication, and battery type. Its features include a patented Four-Stage Charging System, three Diode Isolated Outputs, Reverse Battery Protection, Over Voltage Protection, Electronic Current Limiting, and a Variable Speed Intelligent Cooling Fan. It can be programmed in the field for optimal charging profiles and ensures regulated output voltage to prevent AC line voltage variations from affecting batteries and 12-volt circuits.

Moreover, the PD2160 offers automatic over-temperature shutdown to prevent damage and can be connected in series or parallel for flexibility in system configuration. Designed to meet stringent marine environment requirements, it is UL listed for safety, providing reliable performance in marine applications.

Features:

  • Four-Stage Charging System
  • 3 Diode Isolated Outputs
  • Patented Reverse Battery Protection
  • Over Voltage Protection
  • Electronic Current Limiting
  • Variable Speed Intelligent Cooling Fan
  • Programmable in the Field
  • Regulated Output Voltage
  • Automatic Over-Temperature Shutdown
  • Series or Parallel Connection

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

amps 60 Amps
dimensions 10.9"L x 7.8"W x 4.2"H
Height 4.2″
input 105-130 Volts AC, 50-60 Hz, 1000 Watts
Input (Hertz) 50-60 Hz
Input (VAC) 105-130 VAC
Input (Watts) 1,000W
Length 10.9″
weight 6.4 lbs
Width 7.8″
