Description

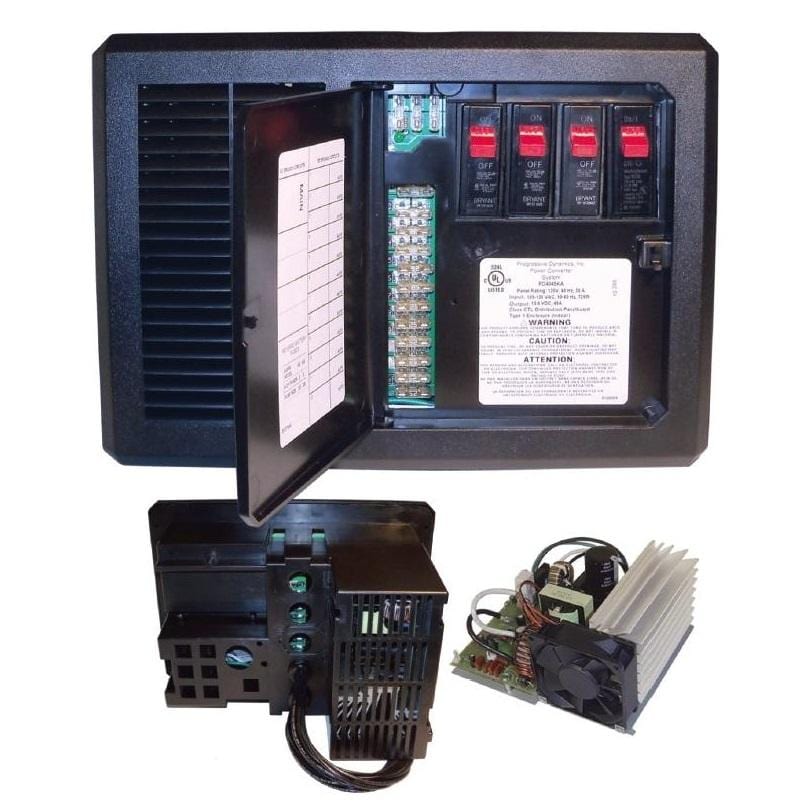

Keep plenty of power for your vehicle at the ready with a Progressive Dynamics converter/charger from Boat and RV Accessories.
Features:
- The converter section is easily accessible from the front.
- Reverse battery blown fuse indicator.
- Reverse battery protection with easy to replace fuses.
- Electronic current limiting.
- High and low AC input protection.
- Intelligent, variable speed, cooling fan.
- Automatic thermal protection.
Specifications
| ac distribution breakers | Max 30 Amp Main, up to 7 Brand Circuits |
| ac distribution rating | 120 Volts AC, 30 Amps |
| amps | 45 Amps |
| cut-out dimensions | 10.75"W x 7.25"H |
| dc distribution fuse positions | 2 @ 20 Amp max each |
| dimensions | 12.28"W x 8.875"H x 7.25"D |
| efficiency | >80% |
| input current at rated power | 8.3 amps |
| input frequency | 50-60 Hz |
| input voltage tolerance | 105-130 Volts AC |
| maximum continuous input power | 725 watts |
| maximum dc output current | 45 amps |
| no load dc output voltage | 13.6 Volts DC |
| operating temperature | 0-50C |
| output voltage | Full Load Approx. > 12.5 Volts DC |
| output voltage tolerance | +/- .3 Volts DC |
| peak inrush current | 32 amps |
| storage temperature | 20-80C |
| weight | 5.7 lbs |
