Description
The PowerMax PM3 Series converters 110Vac power to 12Vdc power to charge a battery and/or power 12V equipment. With the Powermax state of the art 3 Stage Smart Charging and adjustable power supply modes, the PowerMax AC to DC power converter/battery charger is engineered with the user and variable environmental conditions in mind. They will fully charge and maintain any battery type while providing very clean DC power. Ideal for use in RV, Automotive, Boat, Car Audio, or any applications where battery charging and/or 12V power is needed.
The PM3 12V Series is Compatible with LiFEPO4 batteries – Used in the Fixed mode they are optimized to charge a 12V battery FAST while ensuring a long battery lifespan. Need to charge a large bank quickly between uses for RV, Automotive, Car Audio, Off-Grid, Bowfishing, or Communications systems. We offer several different amperage sizes to fit all requirements! A 100 Amp charger will charge a 12V 100Ah battery in approximately 1 hour, and a 200Ah battery bank in 2 hours. Need more power, our 12V converters can be Paralleled to provide even more charging power for those of you who need to charge FAST and play HARD.
View Manufacturer's Spec Sheet
Features:
- 110V Units Available in 15, 35, 45, 55, 60, 75, 85, 100, 120 Amps
- An exact replacement for the WF-9800 Series
- 220V Units Available in 55, 75 and 100 Amps
- Built-in 3 Stage charging and fixed single output modes
- Suitable for charging ALL battery types including Lithium, Lead Acid and AGM
- Fixed output mode voltage can be set between 13.0 Vdc to 16.5 Vdc
- LED Indicator light

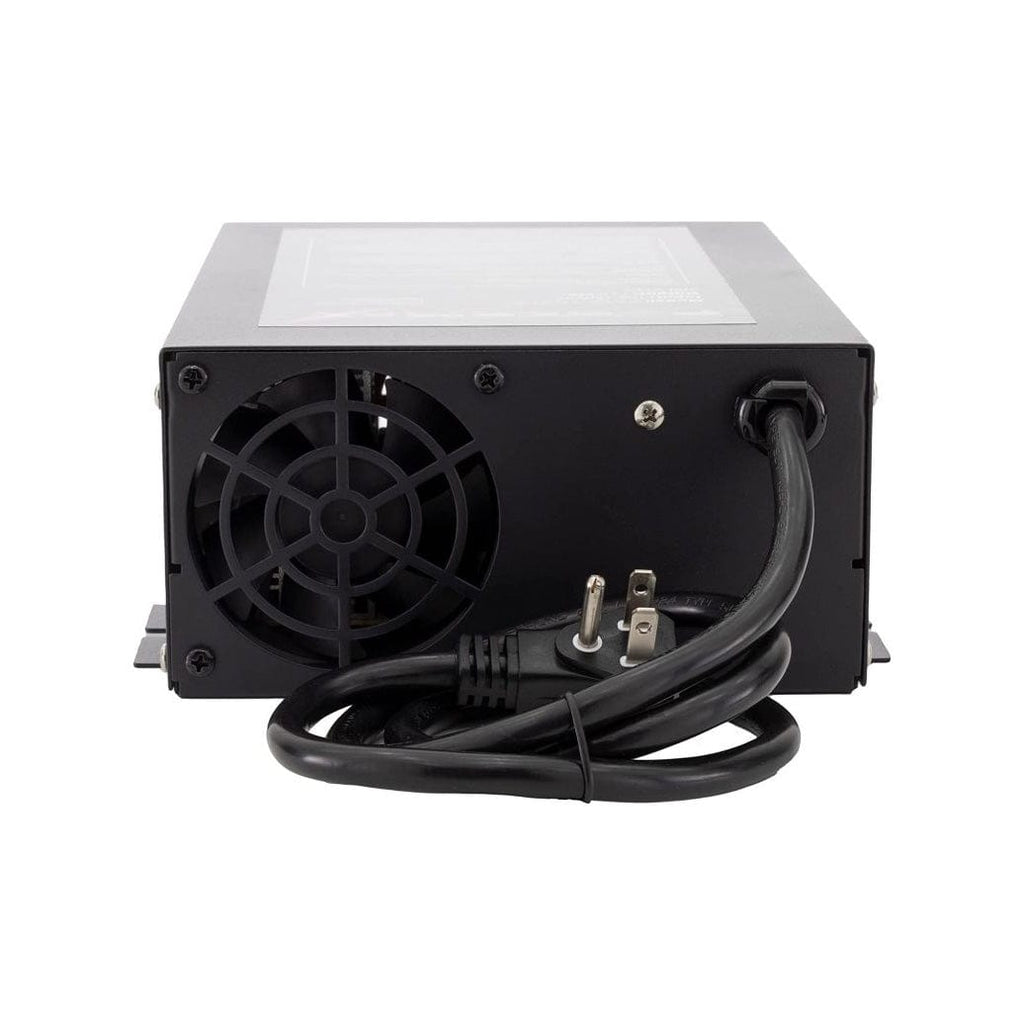

- Temperature controlled Quiet fan cooling
- Reverse polarity, overload, and thermal protection
- 2-Year limited manufacturer's warranty

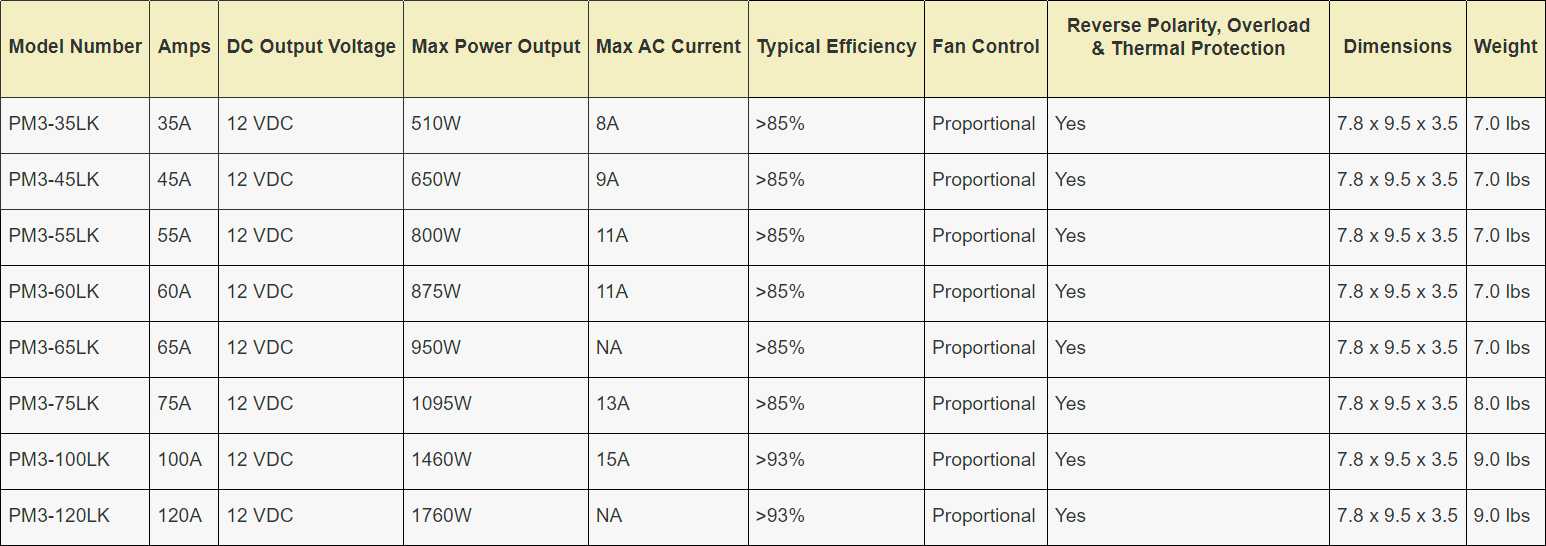

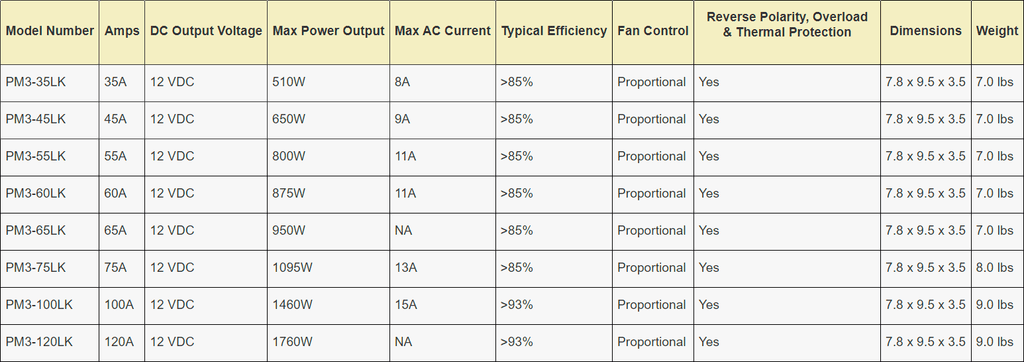

Specifications By Model (Click Here):
-

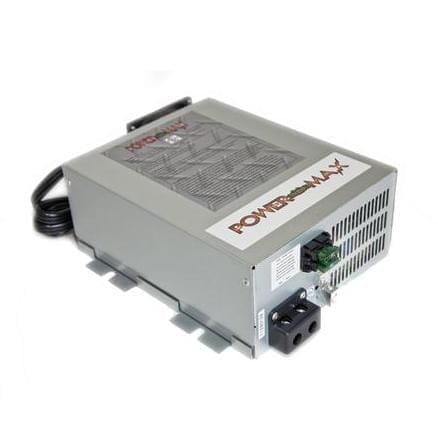

PM3-35LK
- Amps: 35A
- DC Output Voltage: 12 VDC
- Max Power Output: 510W
- Max AC Current: 8A
- Typical Efficiency: >85%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes

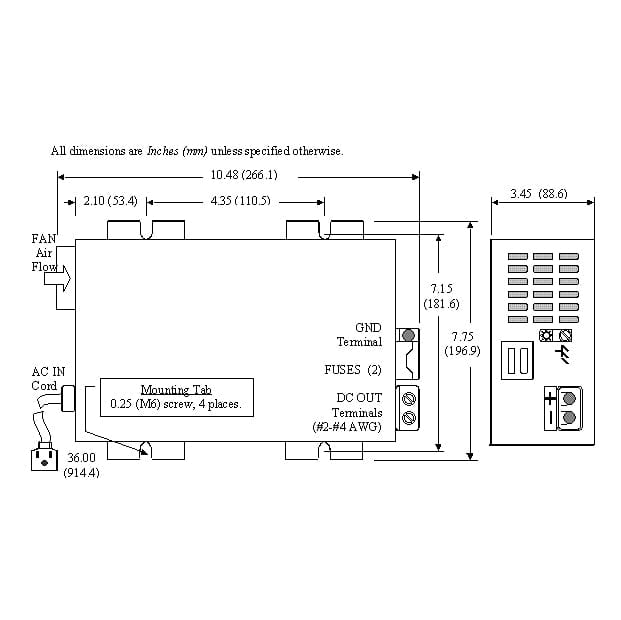

- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 7.0 lbs
-

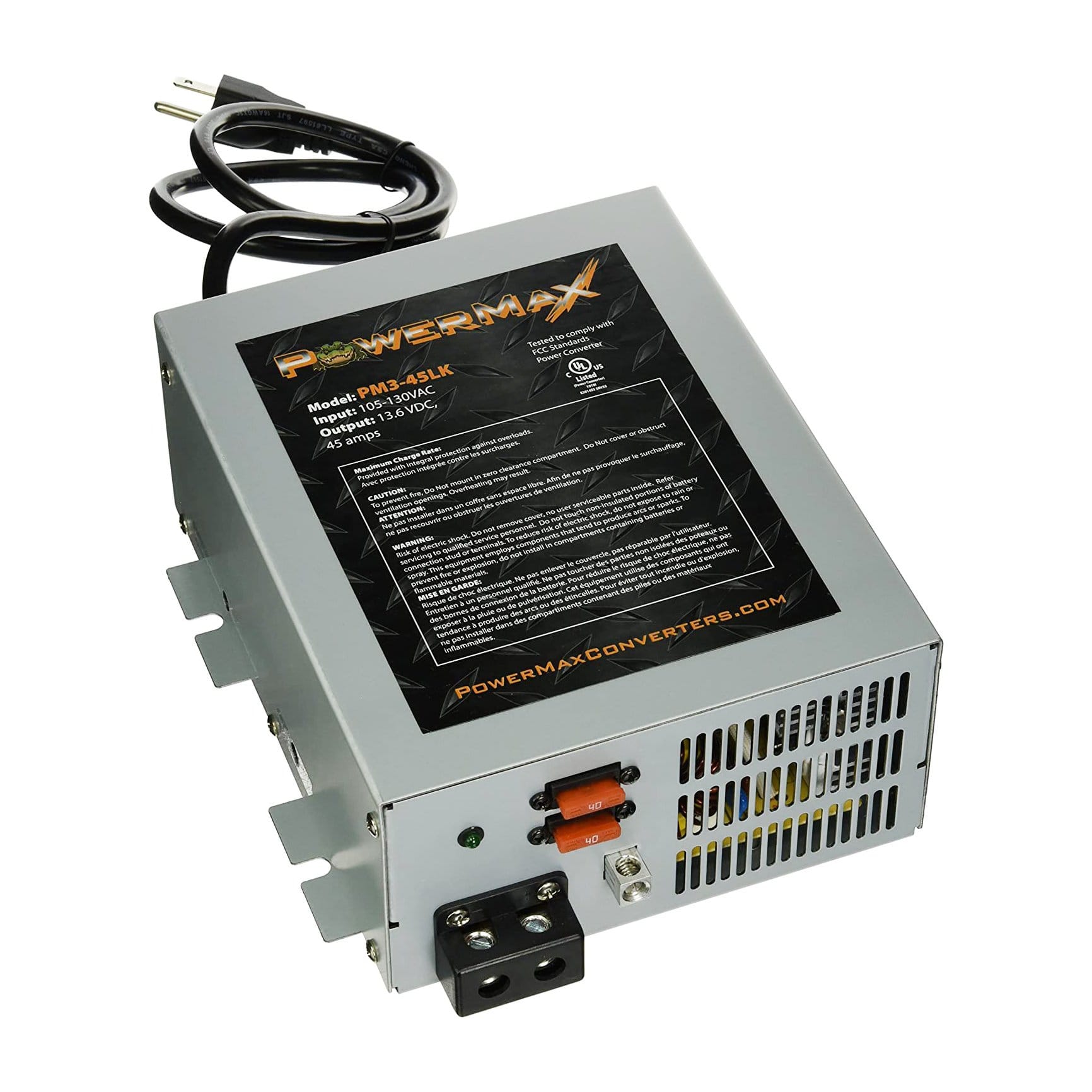

PM3-45LK
- Amps: 45A
- DC Output Voltage: 12 VDC
- Max Power Output: 650W
- Max AC Current: 9A
- Typical Efficiency: >85%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 7.0 lbs
-

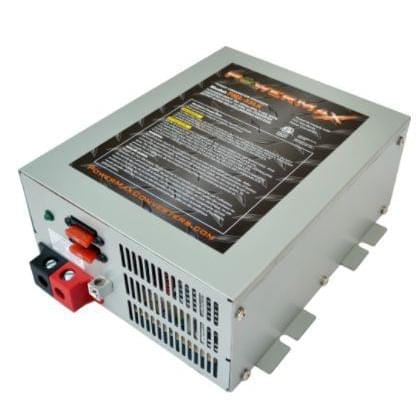

PM3-55LK
- Amps: 55A
- DC Output Voltage: 12 VDC
- Max Power Output: 800W
- Max AC Current: 11A
- Typical Efficiency: >85%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 7.0 lbs
-

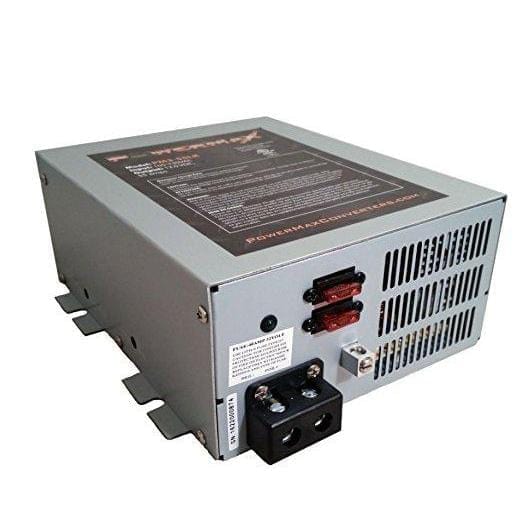

PM3-60LK
- Amps: 60A
- DC Output Voltage: 12 VDC
- Max Power Output: 875W
- Max AC Current: 11A
- Typical Efficiency: >85%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 7.0 lbs
-
PM3-65LK
- Amps: 65A
- DC Output Voltage: 12 VDC
- Max Power Output: 950W
- Max AC Current: NA
- Typical Efficiency: >85%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 7.0 lbs
-

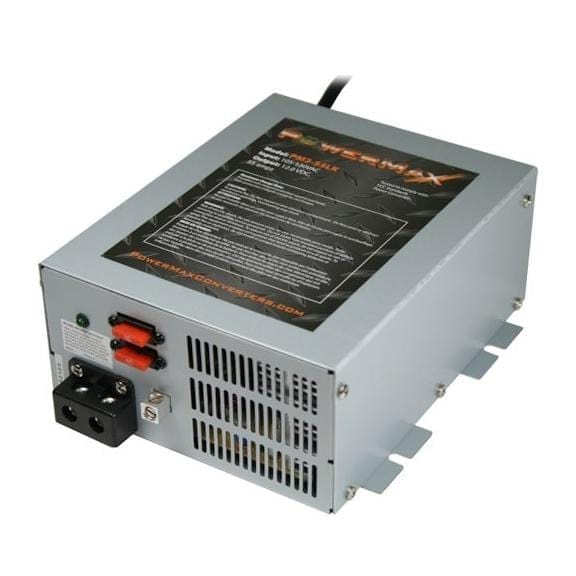

PM3-75LK
- Amps: 75A
- DC Output Voltage: 12 VDC
- Max Power Output: 1095W
- Max AC Current: 13A
- Typical Efficiency: >85%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 8.0 lbs
-

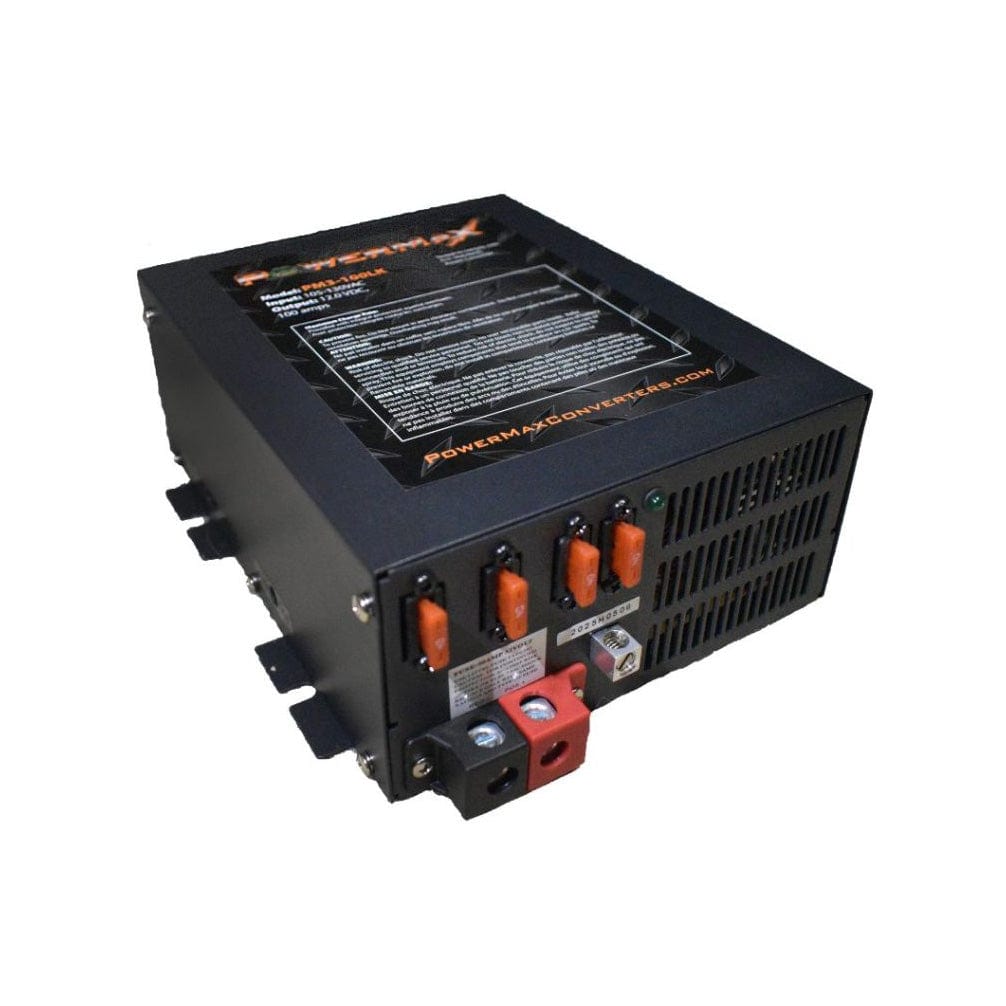

PM3-100LK
- Amps: 100A
- DC Output Voltage: 12 VDC
- Max Power Output: 1460W
- Max AC Current: 15A
- Typical Efficiency: >93%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 9.0 lbs
-
PM3-120LK
- Amps: 120A
- DC Output Voltage: 12 VDC
- Max Power Output: 1760W
- Max AC Current: NA
- Typical Efficiency: >93%
- Fan Control: Proportional
- Reverse Polarity, Overload and Thermal Protection: Yes
- Dimensions: 7.8 x 9.5 x 3.5
- Weight: 9.0 lbs
