Description

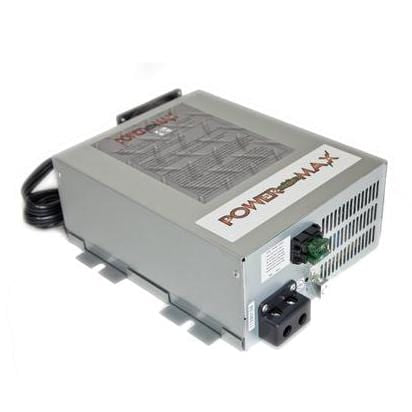

The Powermax PM3-85 is a 12 volt, 85 amp, converter charger with 3 stage automatic smart charger.
Specifications
| ac current | @108vac: 13 amps |
| amps | 85 Amps |
| continuous output power | 85 amps |
| dc output | No Load Approx. 13.6v / 14.4v dc |
| dimensions | 7.15"L x 11"W x 3.48"H |
| efficiency | >93% |
| input frequency | 47-63 |
| input voltage range | 105-135 ac |
| line regulation | 100mv ms |
| load regulation | <1.0% |
| maximum power output | 1440 watts |
| output voltage | 12 Volts |
| output voltage tolerance | No Load Approx. +/- .7% |
| overload protection | >100% |
| stages | 3 Stage |
| storage temperature | -20 to 80c |
| weight | 11 lbs |
| withstand voltage | 1240v @ leads |
| working temp | 0-45c |
