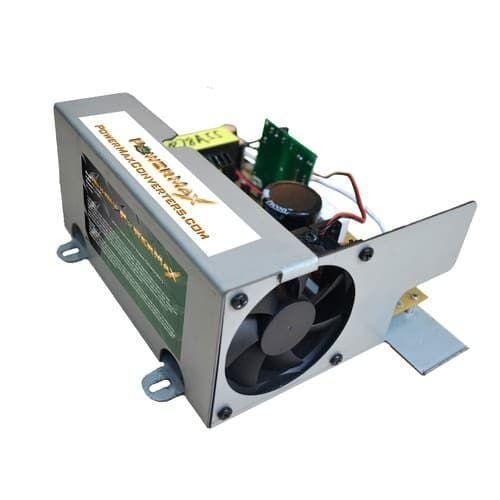

Powermax PM3-75-MBA Replacement Converter Charger For An AC / DC Distribution Panel

          Be the first to write a review
You Pay $155.99
$202.99 Save 23%
Free Shipping
99999 In Stock!

Would you like to calculate shipping for this item?

The Powermax PM3-75-MBA converter charger is an automatic 3 stage smart battery charger and a 75 amp 12 volt power supply. See the details tab for more information.

The unit features a variable speed current controlled cooling fan, weekly equalization for longer battery life and will replace any converter charger in an ac / dc distribution panel. The PM3-75-MBA provides 1065 watts of power, carries a 2 year manufacturers 2 year warranty and is Fcc compliance class b which means the converters are designed not to cause interference with televisions, radios or other signals.

  • 75 amps dc output
  • Maximum continuous power output 1065 watts
  • All power max converters are automatic three stage switching power supplies, the converter senses which mode it needs to be in by checking the rv system voltage
  • Weekly equalization for longer life: if the powermax voltage remains in the long term stage for more than 7 days the smart technology will automatically deliver a boost charge for a predetermined time then automatically return to the normal float stage
  • Reverse battery protection: this feature prevents permanent damage to the converter from an incorrect battery connection
  • Electronic current limiting: automatically shuts down power during overload or short-circuit conditions and returns to normal operation after conditions are corrected
  • 3 stage charging: absorption mode, bulk mode and float mode
  • Automatic cooling fan: the fan is variable speed and current controlled
  • Max inrush current, single cycle: 40 amps
  • Short circuit protection
  • Thermal protection
  • UL listed and cul listed
  • Fcc compliance class b which means the converters are designed not to cause interference with televisions, radios or other signals
  • 2 year warranty
  • Output Voltage Range : 13.2v - 14.4v dc
  • Output voltage tolerance (no load) : + or - 7%
  • Output amperage, max continuous : 75 amps
  • Input voltage range : 105 - 135 ac
  • Input frequency : 47 - 63 hz
  • AC Current : @ 108vac : 12 amps
  • Efficiency : 93%
  • Overload protection : >100%
  • Line regulation : 100mv ms
  • Load regulation : <1.0%
  • Working Temp : 0 - 45c
  • Storage temperature : -20 to 80c
  • Withstand Voltage : 1240v @ leads
  • Dimensions : 7.15"w x 3.45"h x 10.5"d
  • Weight : 6 lbs
  • Output Voltage : 12 Volts
  • Amps : 75 Amps
