Description

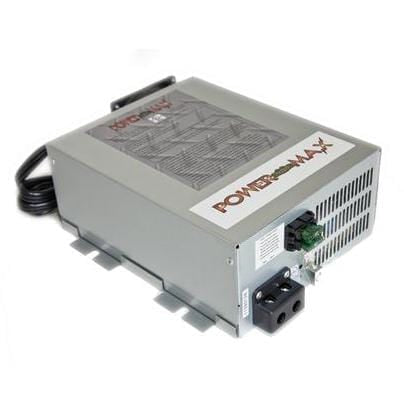

The Powermax PM3-20-48 20 amp 48 volt converter charger is a state of the art battery charger using advanced switch mode technology to provide a constant supply of clean power.
Specifications
| ac current | @108vac: 10 amps |
| amps | 20 Amps |
| dc output | No Load Approx. 54.4v DC |
| dimensions | 5"L x 10.5"W x 4"H |
| efficiency | >90% |
| input frequency | 47-63 |
| input voltage range | 105-135 ac |
| line regulation | 100mv ms |
| load regulation | <1.0% |
| maximum power output | 545 watts |
| output amps | 20 amps |
| output voltage | 48 Volts |
| output voltage tolerance | No Load Approx. +/- .7% |
| overload protection | >100% |
| stages | 3 Stage |
| storage temperature | -20 to 80c |
| weight | 9 lbs |
| withstand voltage | 1240v @ leads |
| working temp | 0-45c |
