Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
5 In Stock!
Would you like to calculate shipping for this item?

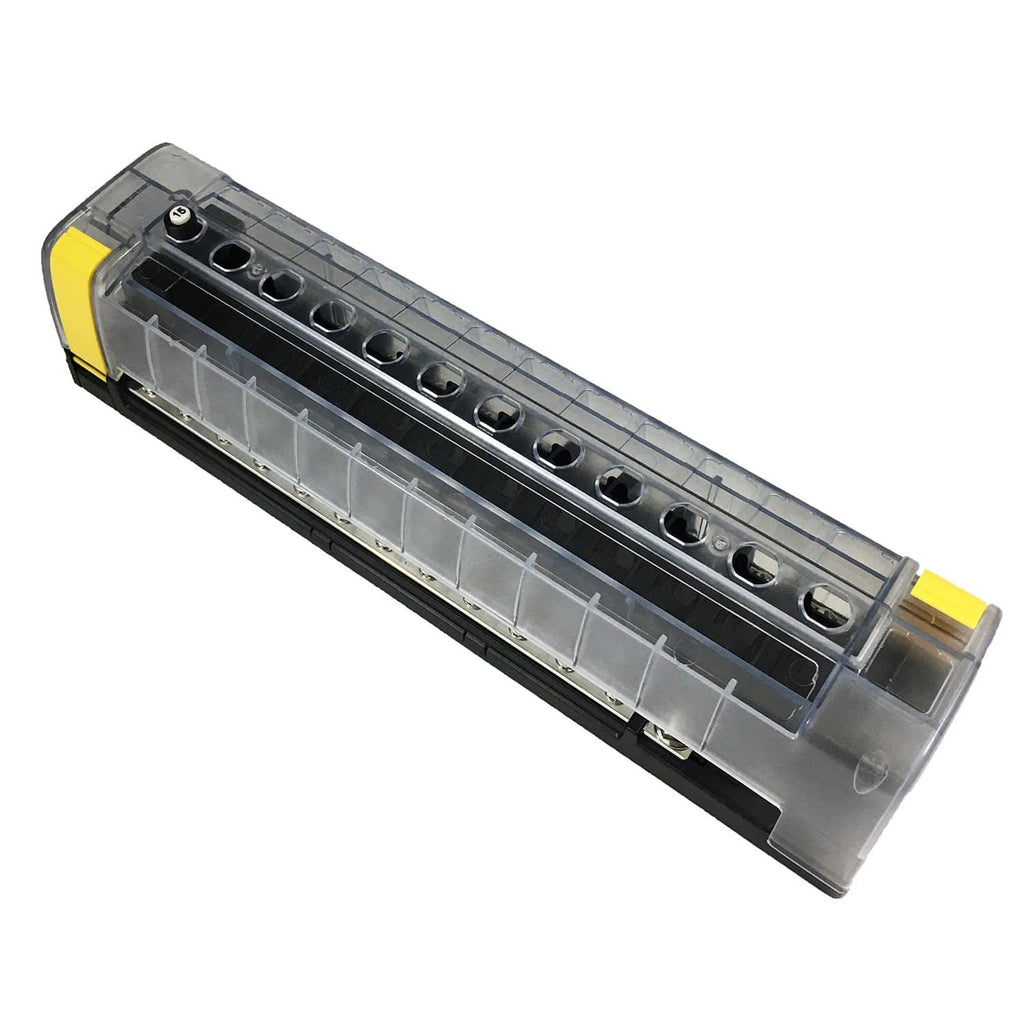

The 5054-BSS is a ST CLB, 12 position, circuit breaker block with a negative bus from Blue Sea Systems Power Products. See below for more information.
There are many advantages to a resettable circuit breaker over a fuse however they can be expensive with a complicated installation process. This CLB resettable circuit breaker block solves these issues as it is compact, snaps-in-place, and is an easy as a fuse to install.
This circuit breaker block offers flexible resettable circuit protection for 12 circuits. The surface mount block is easily mountable to a dry and protected location. The new WD Switch Only Panel keeps circuits protected from spray while offering integrated switch guards reducing the risk of accidental switching. This Switch Only Panel is a natural companion to waterproof switching.
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
- Circuits : 12
- Maximum Amperage : 100A (per block)
- Maximum Amperage : 32A (per circuit)
- Maximum Voltage : 32V DC
- Mounting : #8 Screw (M4) or #8 Nut
- Negative Bus : #10-32 Stud
- Positive Bus : #10-32 Stud
- Source : Common Source
- Minimum Operating Temperature : -10° C
- Maximum Operating Temperature : 60° C
- Mounting Centers : 10.13in (257.3 mm)
- Screw Terminal Type : #8-32 Screws with Captive Star Lock Washer
- Height : 11.19in (284.23 mm)
- Weight : 1.50lb (0.68 kg)
