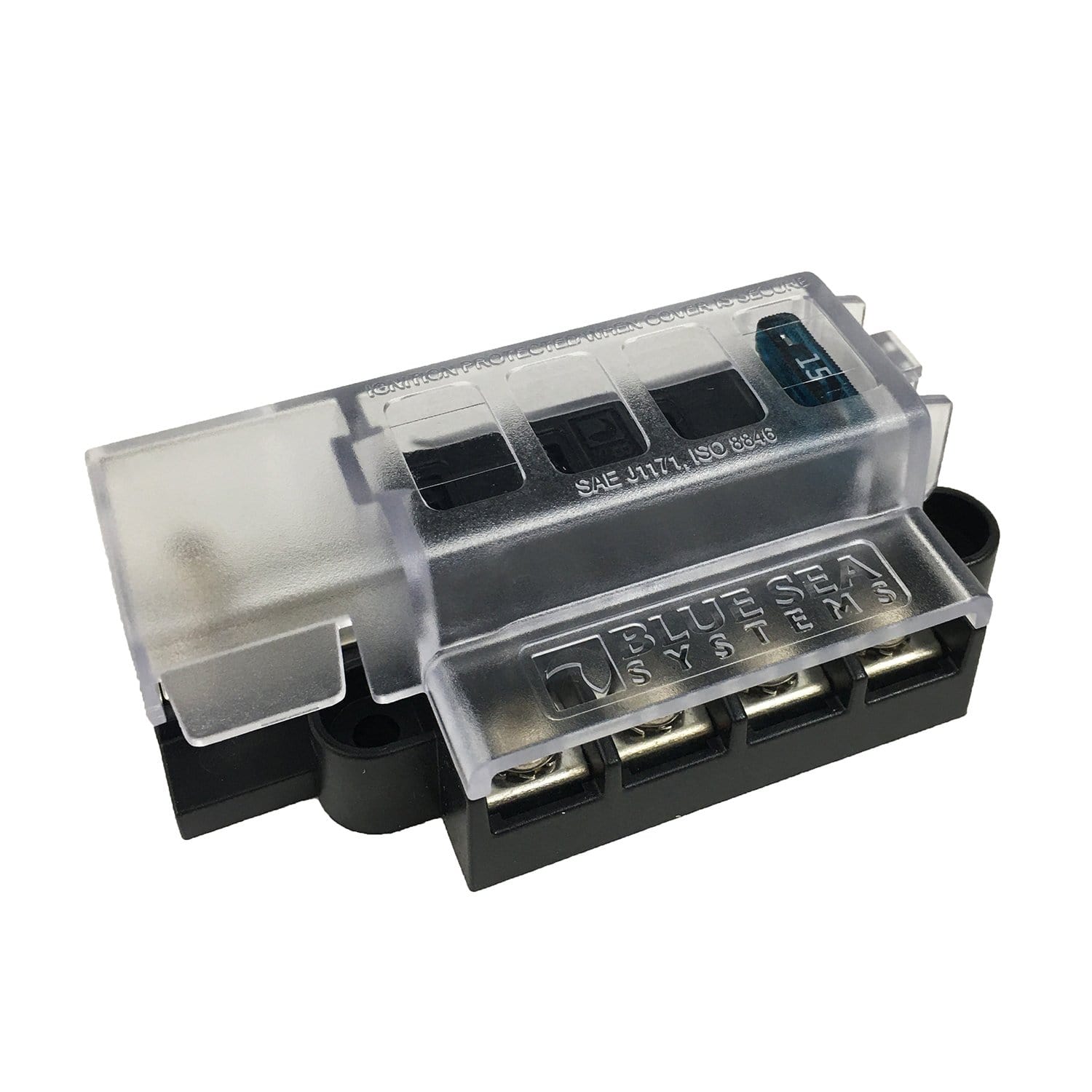

Power Products Blue Sea Systems 5045-BSS ST Blade Compact Fuse Block 4 Circuits

          Be the first to write a review
You Pay $27.99
$44.99 Save 38%
Free Shipping
5 In Stock!

Would you like to calculate shipping for this item?

The 5045-BSS is a 4 circuit, ST blade compact fuse block from Blue Sea Systems Power Products. See below for more information.

This compact fuse block provides surface mount circuit protection for ATO/ATC fuses while contained in a small, compact footprint.

Features:

  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately

Accessories:

  • 5235 – 5246 ATO-ATC Fuses
  • 5291 – 5299 easyID Fuses
  • 7870 Black 180 Label Set – Emergency Vehicles
  • Circuits : 4
  • Maximum Amperage : 100A per block, 30A per circuit
  • Maximum Voltage : 32V DC
  • Mounting : #8 Screw (M4)
  • Mounting : #8 Screw (M4)
  • Terminal Stud Torque : 24 in-lb (2.71 Nm)
  • Screw Terminal Torque : 18 in-lb (2.03 Nm)
  • Screw Terminal Type : #8-32 Scews with captive star lock washer
  • Terminal Stud Size : #10-32
  • Weight : 0.25lb
