Description

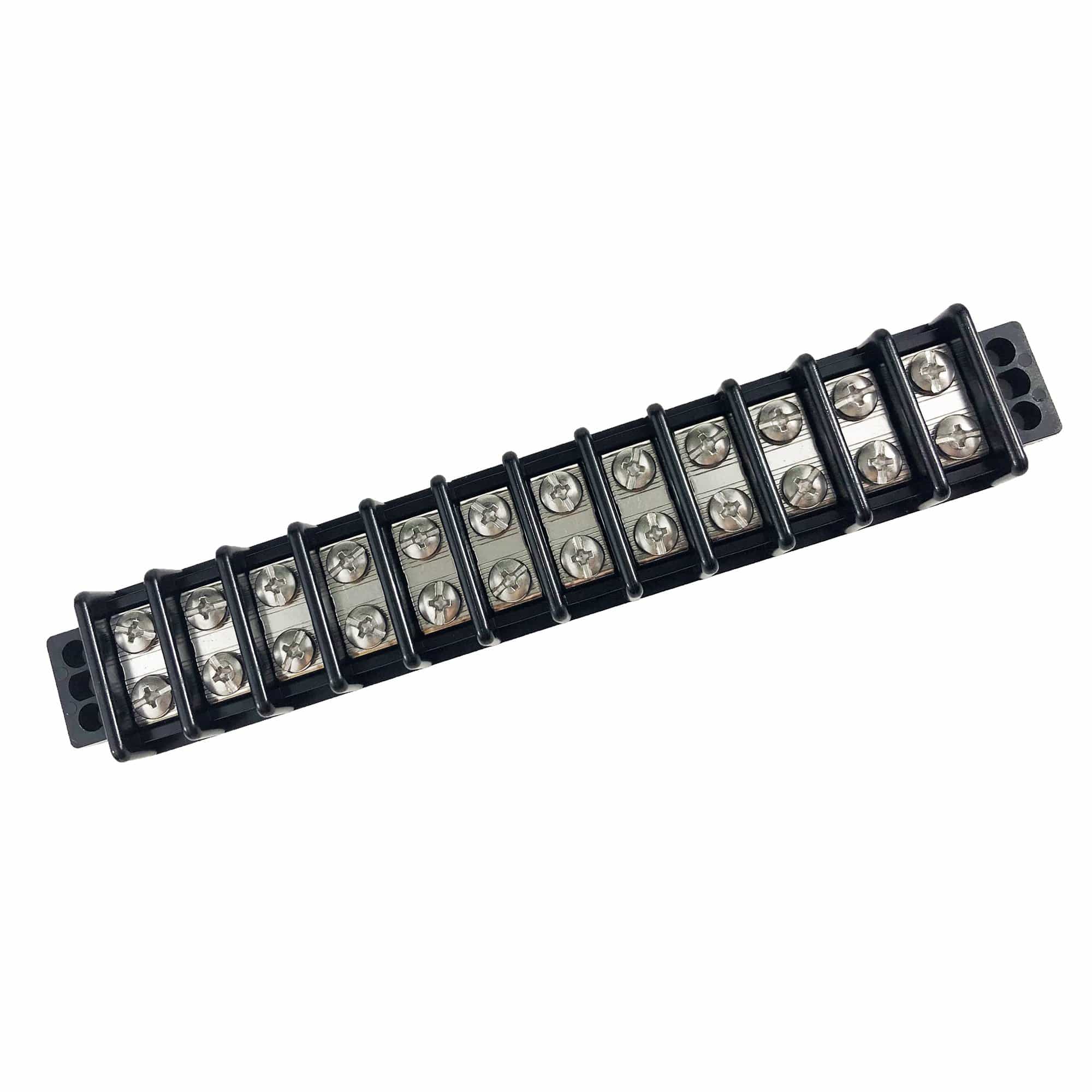

The 2512-BSS is a 30 Amp, 12 circuit terminal block
Specifications
| base material | UL 94 V0, PC |
| bus material | Nickel-Plated Brass |
| circuits | 12 |
| continuous rating | 30A |
| length | 7.75in (196.85 mm) |
| maximum voltage | 600V AC/DC |
| mounting screws | #10 [M5] |
| screw material | Stainless Steel |
| screw terminal torque | 10 in-lb (1.13 Nm) |
| terminal screws | M4 |
| weight | 0.35lb (0.16 kg) |
| wire terminal size | #8 [M4] |
