Description

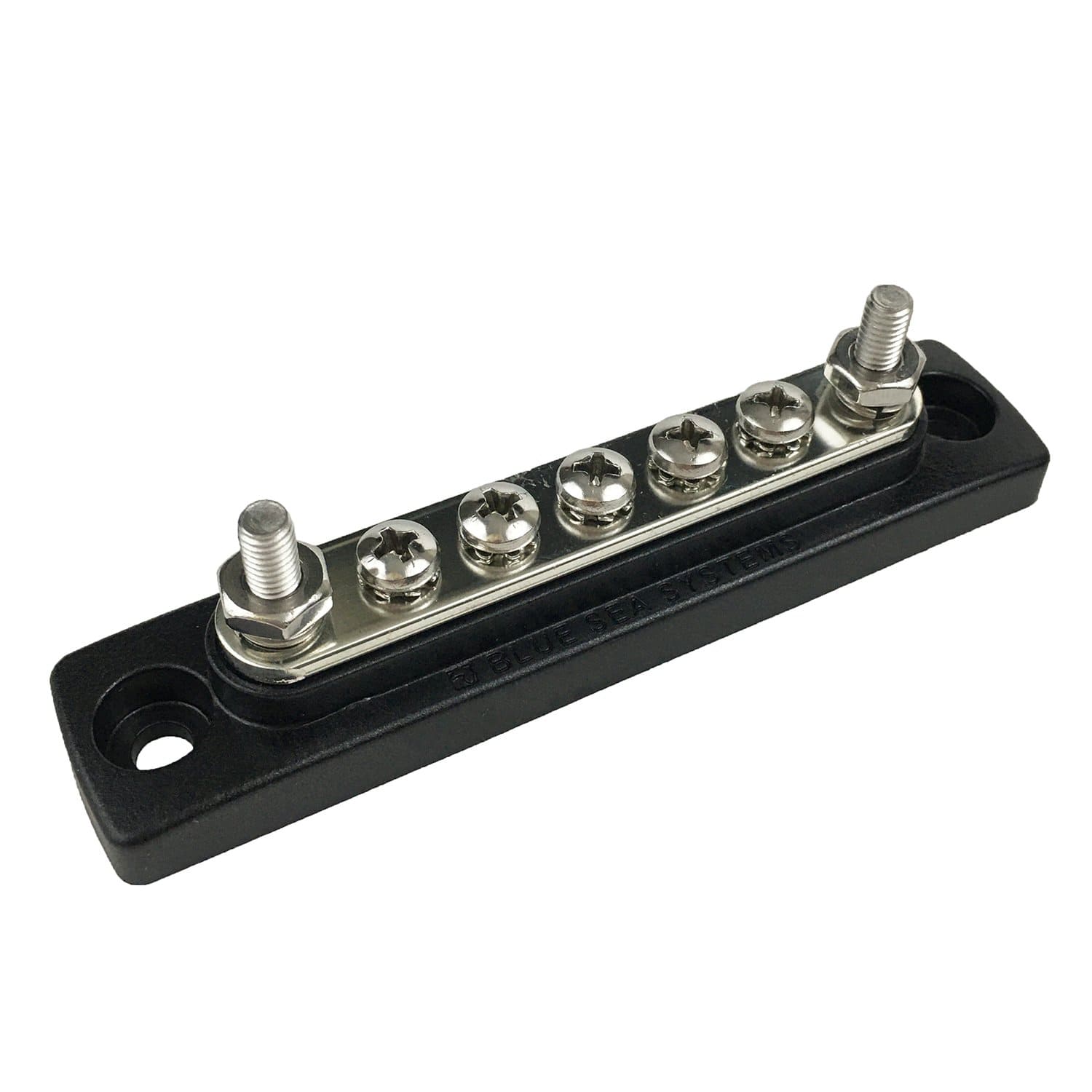

Common 100A Mini BusBar - 5 Gang
Specifications
| base material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| bus material | Tin-Plated Copper CDA 110/ UNS11000 |
| continuous rating | The maximum current a switch is designed to conduct for an indefinite period. 100A |
| maximum voltage | 300V AC, 48V DC |
| number of screw terminals | 5 |
| number of terminal studs | 2 |
| screw terminal torque | 15 in-lb (1.69 Nm) |
| stud torque | 18 in-lb (2.03 Nm) |
| terminal type | #10-32 stud |
