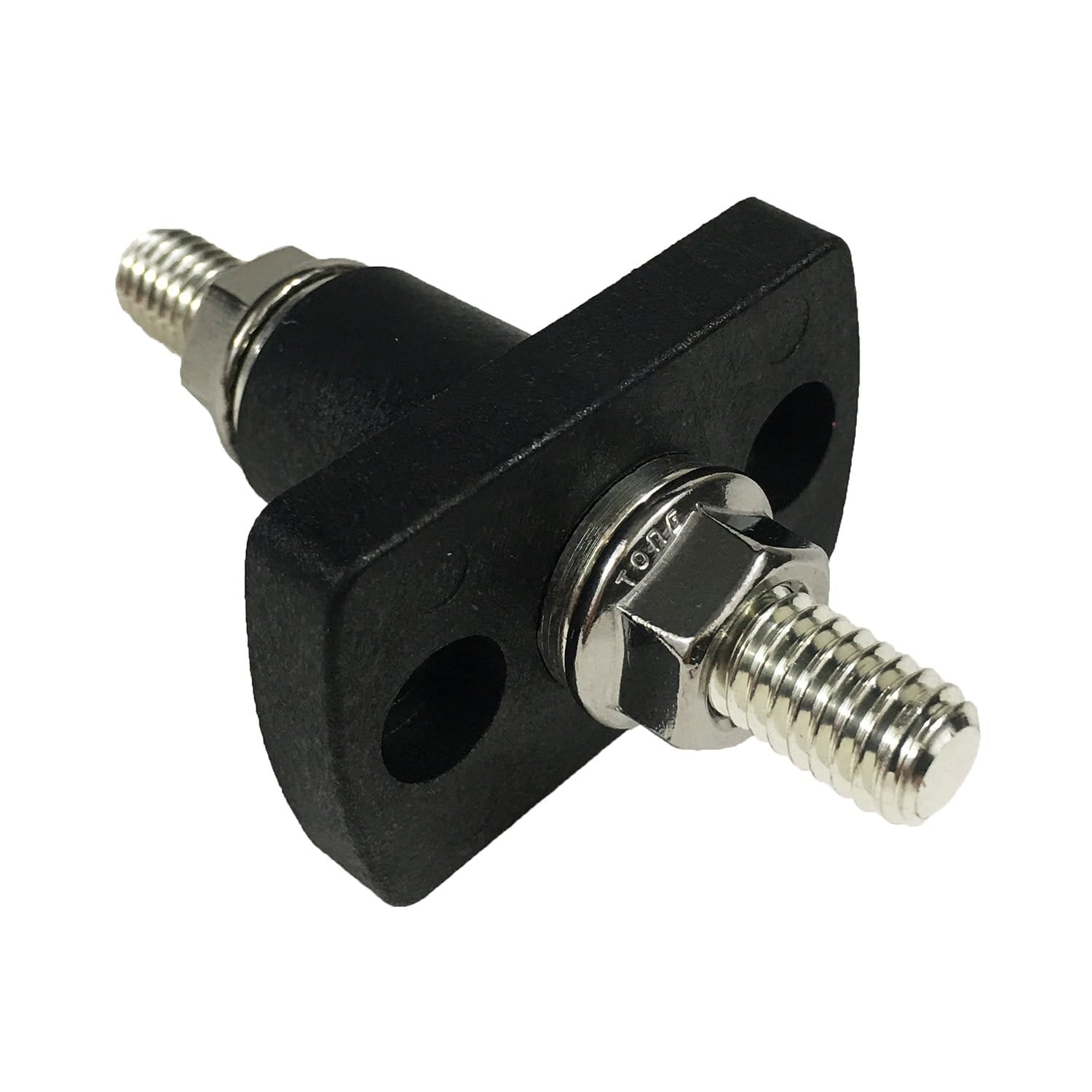

Power Products Blue Sea Systems 2203-BSS Terminal Feed Through Connector 3/8” 16 Studs Black
5 In Stock!
Would you like to calculate shipping for this item?
The 2203-BSS is a black terminal feed through connector with 3/8” 16 studs from Blue Sea Systems Power Products. See below for more information.
This terminal feed through connector eliminates chage and provides stain relief when passing high currents through hulls, decks, and bulkheads.
- Perfect for passing high current cables through hulls, decks, and bulkheads
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed
- Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a watertight installation
- Rated IP66 — withstands water from heavy seas
- Amperage : 250A
- Color : Black
- Maximum Voltage : 48V DC
- Stud Size : 3/8"-16
- Base Material : Reinforced Thermoplastic
- Recommended Torque : 100 in-lb (11.3 N·m)
- Stud Material : Tin-Plated Copper Alloy
- Weight : 0.30lb
