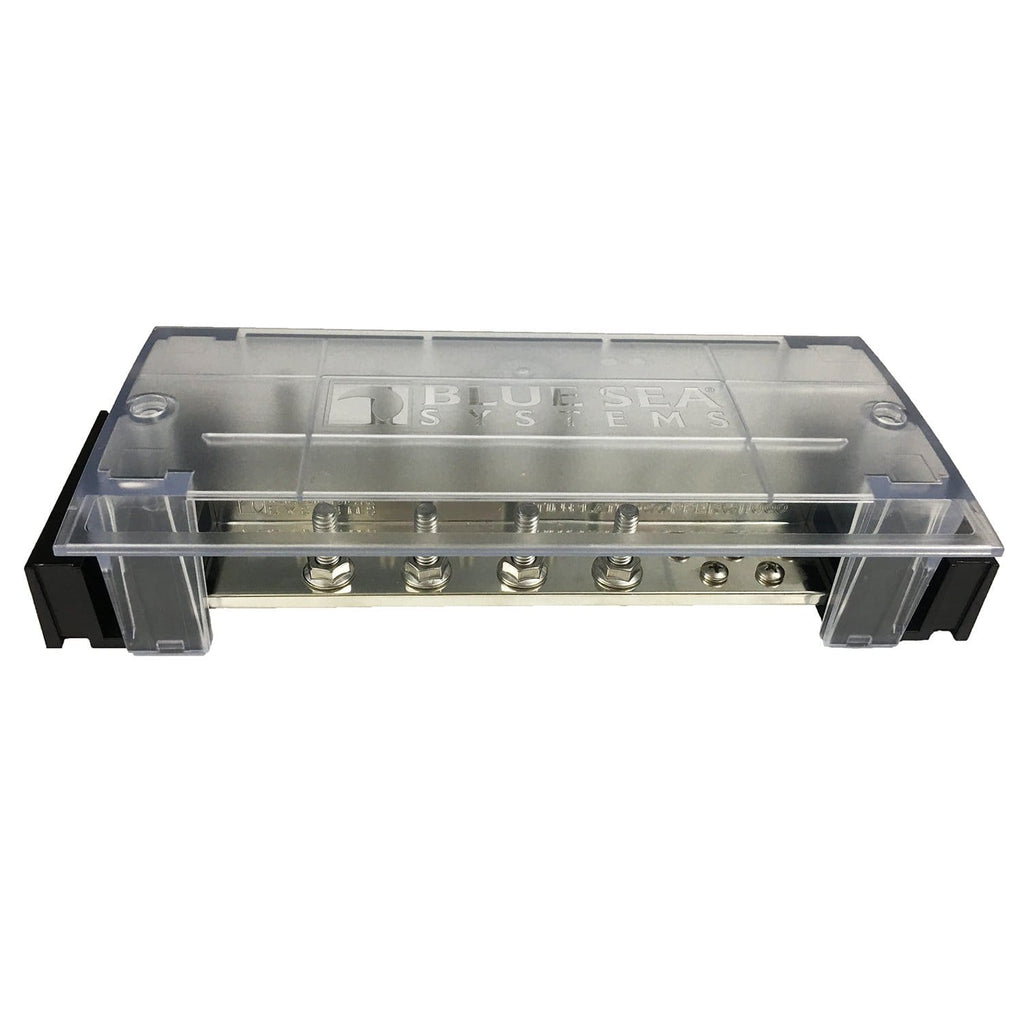

Power Products Blue Sea Systems 1992-BSS PowerBar 1000 W/ 8 5/16” Terminal Studs

          Be the first to write a review
You Pay $121.99
$199.99 Save 39%
Free Shipping
5 In Stock!

Would you like to calculate shipping for this item?

The 1992-BSS is PowerBar 1000 with 8 5/16” terminal studs from Blue Sea Systems Power Products. See below for more information.

For complex wiring systems, a single point is necessary to consolidate large and small conductors. This Power bar 1000 has a 1,000 Amp busbar as well as various sizes of studs and screws for connecting conductors and fuse blocks.

Features:

  • Includes 2730B PowerBar cover
  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles
  • the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess
  • Maximum Voltage : 150V
  • Number of Terminal Studs : 8
  • Terminal Type : 5/16" - 18 Stud
  • Terminal Stud Torque : 120 in-lb (13.56 Nm)
  • Continuous Rating : 1000A
  • Base Material : UL 94-V0 Rated, Glass Reinforced Thermoplastics
  • Bus Material : Tin-Plated Copper C11000
  • Mounting Hole : Accepts #10 (M5) Screws
  • Screw Terminal Torque : 18 in-lb (2.03 Nm) #10-32
  • Screw Terminal Torque : 15 in-lb (1.69 Nm) #8-32
  • Terminal Screws : #10-32, #8-32
  • Weight : 6.00 lbs.
Chuck Hawley from Blue Sea System gives a detailed overview of the PowerBar 1000 series.
