Description

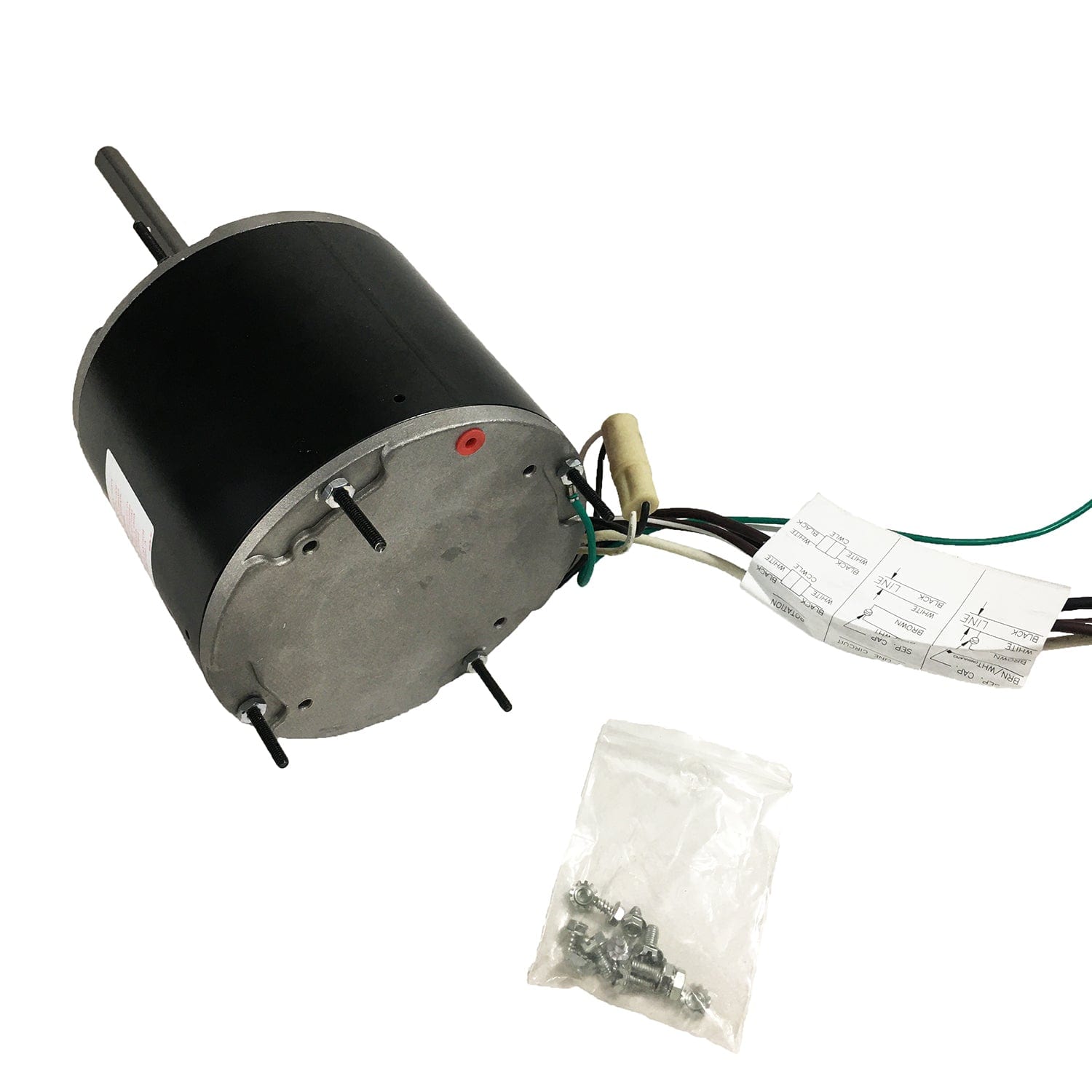

This is a Century Heat Master Ultra 4-IN1 Motor, 208/230V, 1/3-1/8 HP, 825 RPM
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 80°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC on Opposite Shaft End End-Frame
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Amps | 1.8 |
| Bearings | Ball Bearing |
| Brand | Century |
| Country of Origin | China |
| Enclosure | TENV |
| H.P | 1/3-1/8 |
| Hertz | 60 |
| Insulation Class | F |
| Material | Rolled Steel |
| Motor Type | PSC |
| Mounting Option | Extended Studs |
| Overload Protection | Automatic |
| Phase | Single |
| Rotation | Reversible |
| RPM | 825 |
| Shaft Dimensions (In.) | 1/2 x 6-1/2 |
| Voltage | 208-230V |
