Description

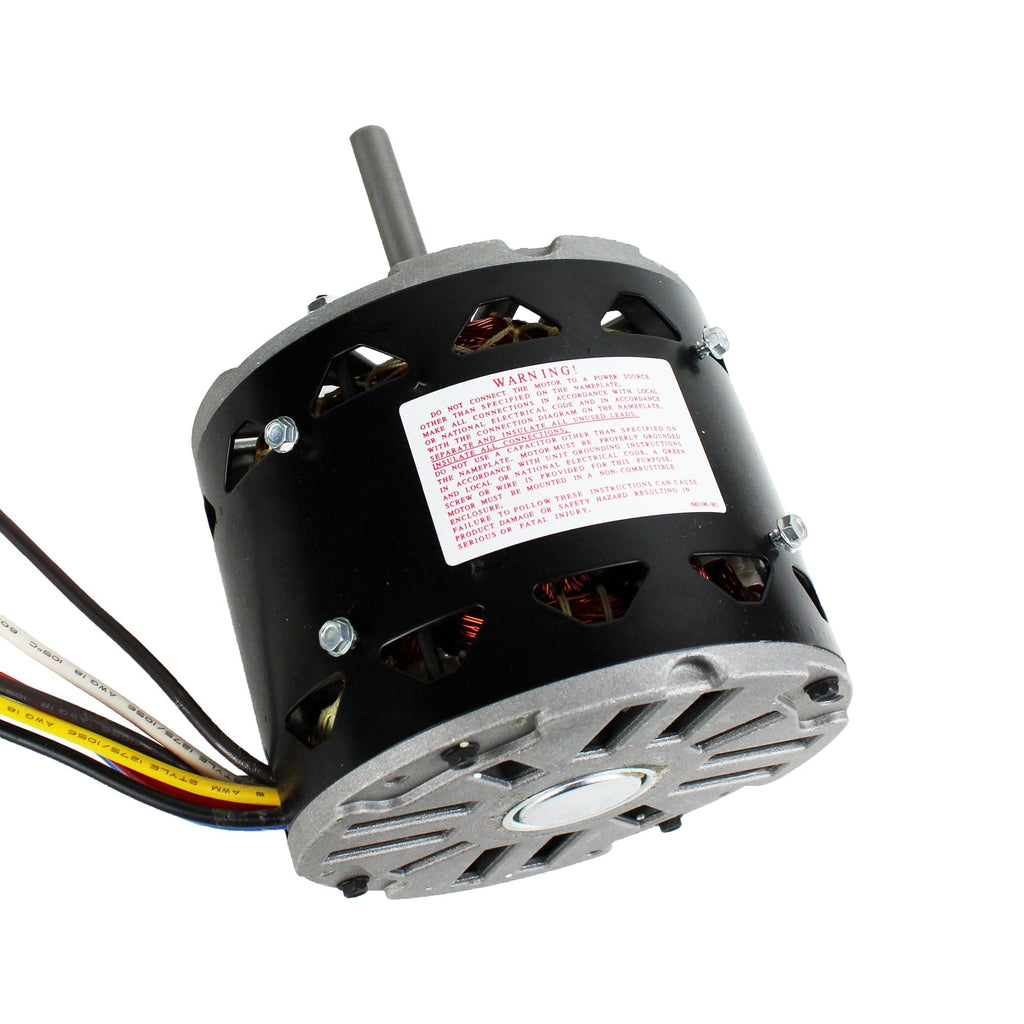

This is an HVAC evaporator fan motor 115-volt, 1075 RPM, 1/2 H.P.
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 17" Leads with Flag Terminals
- Mounting Holes in Shell
Direct replacement for:
- Rheem 51-22873-01
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Ambient Temp. | 40°C |
Amps | 5.70A |
Bearings | Sleeve |
Brand | Century |
Certifications | UL, CSA |
Country of Origin | CHINA |
Enclosure | ODP |
H.P | 2-Jan |
Hertz | 60 |
Insulation Class | B |
Material | Rolled Steel |
Motor Rotation | CCWLE |
Motor Type | PSC |
Motor Voltage | 115V |
Mounting Option | Round Belly Band |
NEMA Frame | 48Y |
Overload Protection | Automatic |
Phase | Single |
RPM | 1075 |
Service Factor | 1 |
Speeds | 4 |
