Description

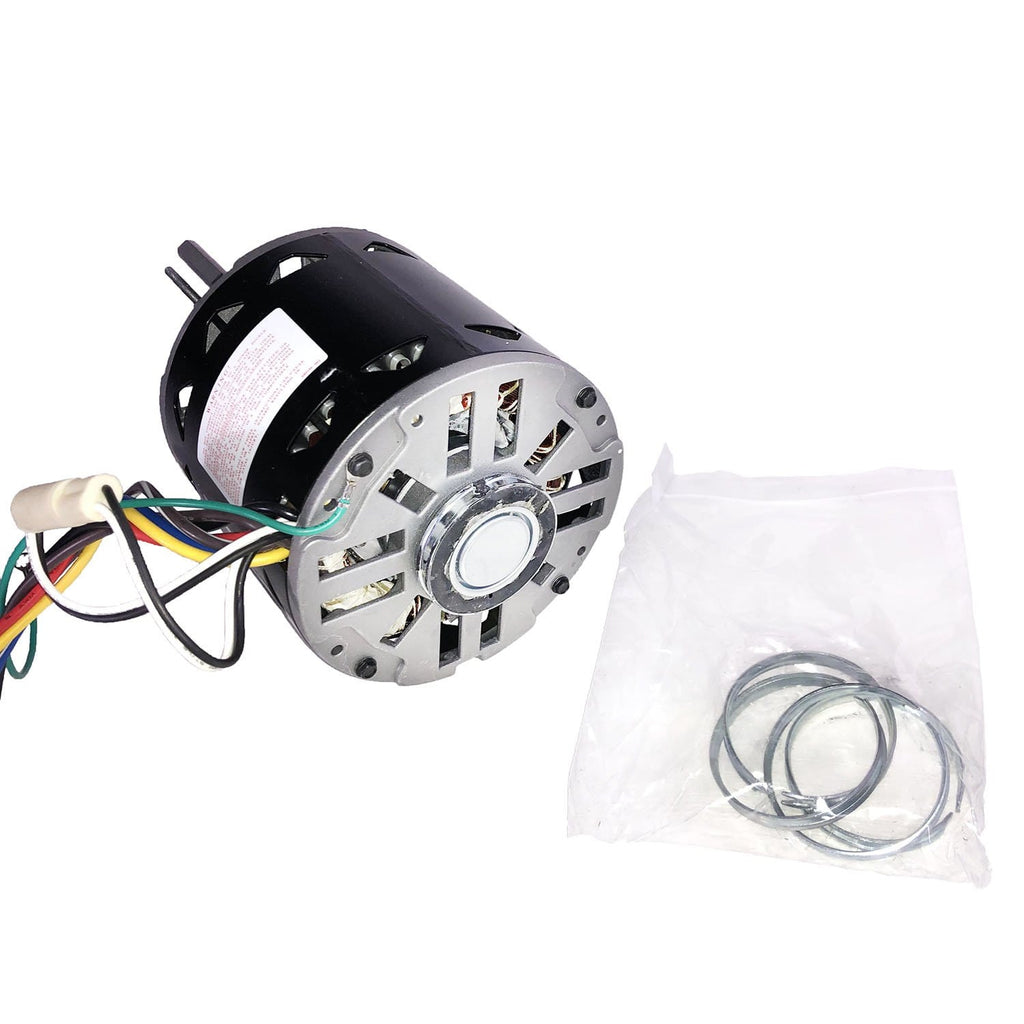

FD1056 Century 5 5/8" Dia. Blower Motor 1/2 HP 1075 RPM 3 Speed 208-230 Volts
By Century
Specifications
| ambient temperature | 50┬░C |
| amps | 2.70 A |
| bearings | Sleeve |
| brand | Century |
| certificates | UL, CSA |
| country of origin | China |
| diameter | 5-5/8" |
| enclosure | ODP |
| h.p. | 2021-01-02 00:00:00 -0500 |
| hertz | 60 Hz |
| insulation class | A |
| material | Rolled Steel |
| motor type | PSC |
| mounting | Resilient Rings |
| nema frame | 48Y |
| overload protection | Automatic |
| phase | Single |
| rotation | Reversible |
| rpm | 1075 |
| service factor | 1 |
| speeds | 3 |
| voltage | 208-230 V |
| weight | 16.80 Lb |
