Description

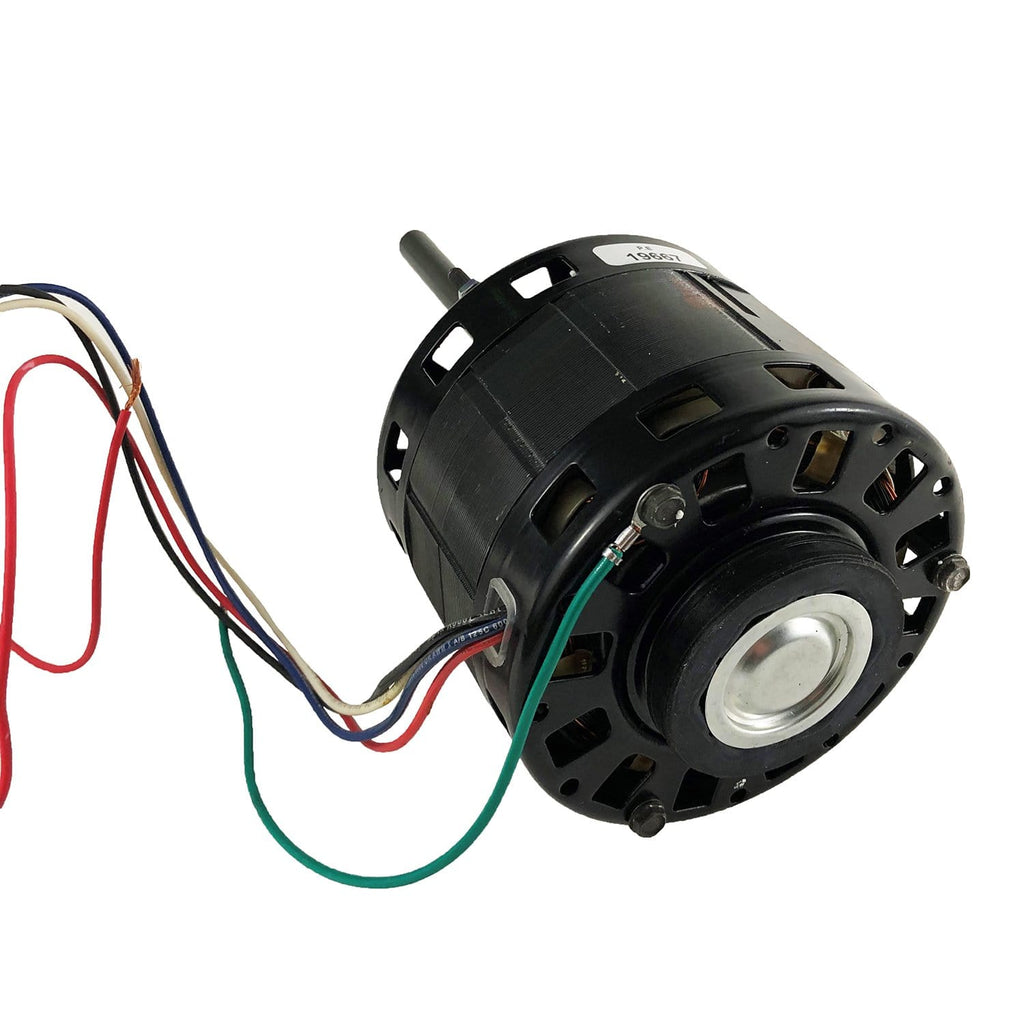

BL6414 Century 1/5 HP 1050RPM 3 Speed 115 Volts 42 Frame Blower Motor
By Packard
Specifications
ambient temperature | 40┬░C |
amps | 6.5, 4.0, 3.0 |
bearings | Sleeve |
certificates | UL, CSA |
country of origin | Mexico |
diameter | 2008-04-07 00:00:00 -0400 |
dimensions | 11 x 7 x 7 in. |
enclosure | Open |
h.p. | 1/5-1/8-1/10 |
hertz | 60 Hz |
insulation class | A |
length less shaft | 3-7/8" |
material | Rolled Steel |
motor type | Shaded Pole |
mounting option | Resilient Rings |
nema frame | 42Y |
overload protection | Automatic |
phase | Single |
rotation | CCWLE |
rpm | 1050 |
service factor | 1 |
shaft dimensions | 1/2 x 5-1/2 |
speeds | 3 |
voltage | 115 V |
weight | 10.5 in. |
