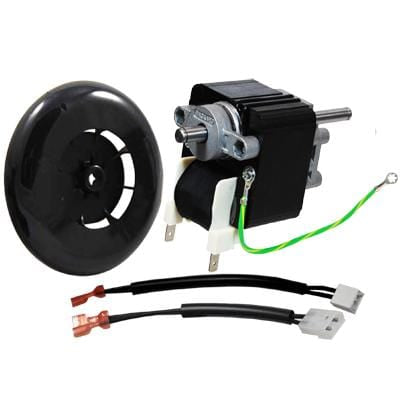

Description
- Replaces Carrier HC21ZE115
- CW Rotation is Determined by Viewing End Opposite the Terminals
- Shaded Pole
- Special Leads and Plug Included
- Plastic Fan Blade Included
- Single Speed
- 1 1/2" Stack
- C Frame
- Single Phase
- 60 Hz
Specifications
| amps | 1.8 |
| bearings | Ball |
| diameter | Shaft Diameter: 5/16" |
| dimensions | Shaft Dimension: 1" x 5/16" x 1 7/8" |
| frame | C-Frame |
| hertz | 60 |
| horse power | 25 |
| includes | Special Leads and Plug |
| length | Shaft Length: 1" x 1 7/8" |
| length less shaft | 3 5/8" |
| output voltage | 115 |
| overload | Automatic |
| phase | 1 |
| rotation | CW |
| rpm | 3300 |
| shafts | 2 |
| speeds | 1 |
| stack size | 1 1/2" |
| type | Shaded Pole |
