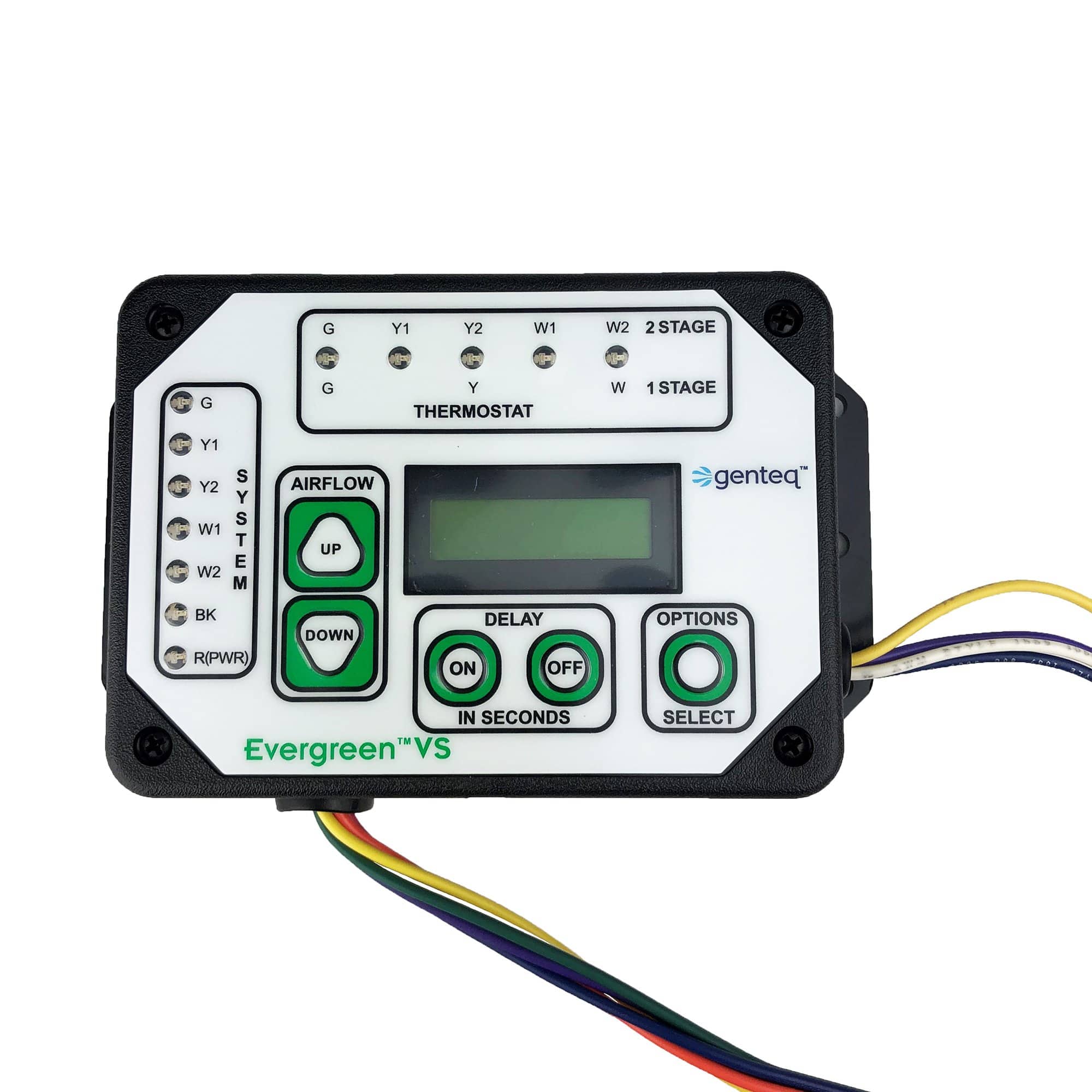

Packard 5K010 Interface for Evergreen VS Motors

This interface is designed to replace Genteq models 2.3, Eon and 3.0 motors.

Features:

• Encapsulated electronics
• Electronic overload protection
• 6kV surge protection
• Used to replace motors with a 16 pin plug

Applications:

• Furnace, air handler and package units
• Fossil fuel, electric strip heat, A/C, heat pump and geothermal units
• When replacing 2.3 or Eon® motors, Evergreen VS motors can only be used in single stage or two stage HVAC systems
• When replacing 3.0 motors, Evergreen VS motors can be used in single stage, multistage, modulating and communicating HVAC systems

Ambient Ratings:

• Powered, not operating: -20° to 65°C (non-icing conditions)
• Operating (1/3, 1/2, and 3/4 HP): -20° to 55°C (non-icing conditions)
• Operating (1 HP): -20° to 45°C (non-icing conditions)
